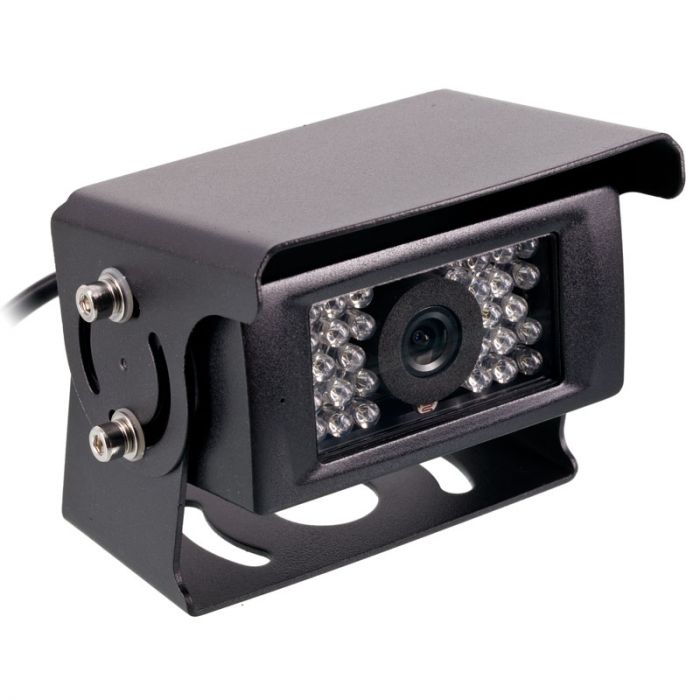

Safesight TOP-SS-5614R 1/3 inch Sony CCD Back Up Camera - with Built in Heater
$160.99
Out of stock
SKU
TOP-SS-5614R
- 1/3" Sony CCD Image Sensor for the ultimate image quality
- 120 degrees Wide Angle Camera
- Selectable reverse image for rear view or front view
- Built in microphone
- Built in Heater for reduced snow and ice build up
- 28 Infrared LEDs for 60 ft night-vision distance
- Adjustable sun shade
Unit includes: Back up camera, Mounting hardware, and Instruction manual
Features:
Imager specifications
Dimensions:
The Safesight TOP-SS-5614R back up camera is one of the clearest and best back up cameras on the market. It utilizes a Sony 1/3 inch CCD image sensor with 250,000 pixels for the ultimate image quality and 28 infrared LED's for night-vision so you can see everything in complete darkness. The TOP-SS-5614R also integrates a Microphone so you can hear everything that is taking place behind you and a built in heater for cold weather climates to reduse snow, ice and condensation build up. The Safesight TOP-SS-5614R is the ultimate RV, truck, tractor, or loader commercial grade backup camera
Safesight TOP-SS-5614R 1/3 inch Sony CCD Back Up Camera - with Built in Heater:Features:
- High Resolution Commercial grade back up camera with infrared illumination
- Selectable reverse image for rear view or front view - Rear mounted set screw changes mode
- 1/3" Sony CCD Image Sensor for the ultimate image quality
- Built-in Microphone for audio
- Built in Heater for reduced snow, ice and condensation build up
- 28 Infrared LEDs for 60 ft night-vision distance
- Aluminum Alloy housing for years of durability
- Adjustable sun shade for optimum sun shielding
- 2 screws per side prevents the camera from vibrating loose in commercial applications
- 4 Pin Waterproof Aircraft grade connector - Safesight 4-Pin to RCA Adapters are sold separately
- 420 TV lines or resolution
- Power Supply: DC 12V
- Waterproof Rating: Ip67
- Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
Imager specifications
- Effective Pixels: 510 Horizontal x 492 Vertical
- 120 degrees Wide Angle Camera - Blind Spot reduced
- Minimum Illumination: 0Lux (LED On)
- Lens: F = 2.1mm
Dimensions:
- Dimensions: 4-1/4" (W) x 2-1/4" (D) x 3-1/8" (H)
Manufacturer | Safesight |
---|---|
Part Number | TOP-SS-5614R |
Camera Sensor type | CCD |
Back up camera type | Surface Mount Camera |
Camera diameter | 1/3 inch |
Viewing Angle | 120 degrees |
Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
Reverse Image | Selectable |
Parking grid lines | No |
Infrared Illumination | Yes |
Built in Microphone | Yes |
Connector Type | 4 Pin Connector |
Modulation | NTSC and PAL |
Operation Voltage | 12-15 Volt DC |
Battery Powered | Hard wired |
Color | Black |
Warranty | 1 Year |
Return period | 30 days |
Exchange period | 30 days |
