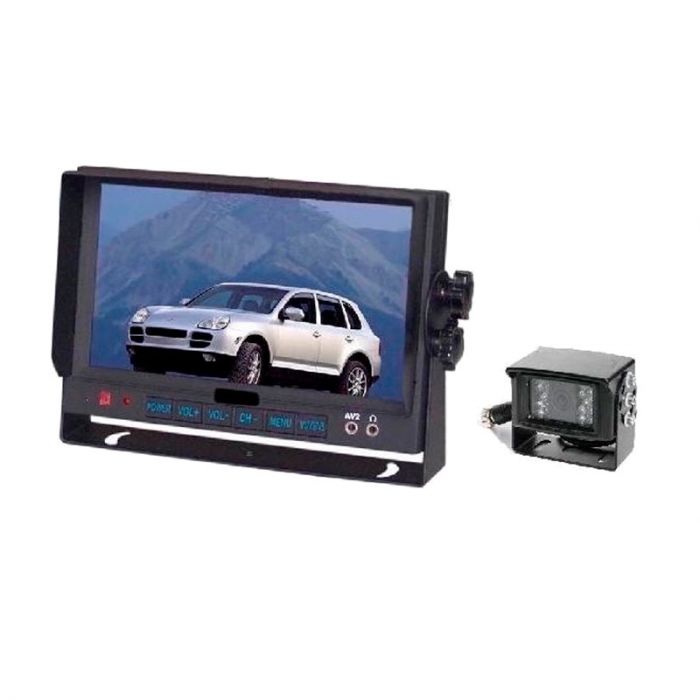

Commercial Grade RVCC3PKG Infrared Night vision Back Up Camera System with Monitor
$320.99
In stock
SKU
57361
Expert Knowledge
Talk to a specialist
- Complete Commercial Grade Back Up Camera System
- Heavy Duty 7" Monitor
- System Will Transmit Great Audio and Video Feeds
- 60 FT Extension Cable
- Built in IR for Night Vision
Unit includes: Back up camera with infrared night vision, Monitor, Mounting bracket, Wiring harness, 25ft cable.
Commercial Grade RVCC3PKG Infrared Night vision Back Up Camera System with Monitor features:
Commercial Grade RVCC3PKG Infrared Night vision Back Up Camera System with Monitor features:
- System with LCD Color Monitor,Monitor Accessories, 1/3" CCD Color Camera with bracket, total 60ft extend cable(s)
- Digital LCD monitor with wide viewing angle and fine pictures. No radiation.
- Picture turning up/down, or turning left/right function.
- Different languages of menu display available:
- English,French, Chinese,Russian, Italian, Spanish,
- Portuguese, German and Arabian.
- Game function.
- Automatic front panel LED activation at night convenient for the users.
- Mirror and non-mirror switch available.
- Automatic brightness control function.
- Full-function remote controller.
- Multiple system available: PAL/NTSC.
- Three AV input, (Camera1, Camera2 and Camera3)
- Front DVD or other device input
- Earphone output jack.
- Automatic guide line when switch to reverse( activation by connect reverse activation wire)
- Wide range of power supply: 9~~32V DC.Cameras powered through LCD itself and no control box needed.
- Two cameras can be connected to the monitor.
- This monitor has a speaker and users can control the sound level from control panel or remote control.
- Auto activate on reverse signal (reversing back-view display) left turn/right turn auto activation
- Dimensions:
- 182mm(7.16") (W) x 122mm(4.8") (H) x 26mm(1.02") (D) (monitor, without back shield)
- 198mm(7.8") (W) x 138mm(5.4") (H) x 31(1.22") (D) (monitor,with back shield)
- Operation temp: - 20 to + 70 C
- Storage Temp: - 30 to + 80 C
- Brightness: 300 cd/m2
- Weight: 0.42kg(monitor without base support)
- CAMERA - Camera Model: SMC1087 1.3" Color CCD Sharp night vision Water Proof camera
- Camera built-in micro phone with either Mirrored or Non-Mirrored Image adjustable
- f:2.8mm wide angle lens 110 degree view angle
- 18 IR LED Night Vision Light let you see clear picture at night at 30ft away.
- Product included:
- 7"LCD Monitor x 1
- Monitor Sun Visor x 1
- Remote control x 1
- Headrest mounting bracket x 1
- Monitor power cable x 1
- Three 4pin screw-on Camera connectors
- Power Wire
- Red Wire 9-32 V DC
- Black Wire Ground
- Brown Wire Camera 3 reverse activation
- Blue Wire Camera 2 reverse activation
- White Wire Camera 1 reverse activation
- Headrest monitor bracket release key x 1
- 30ft 4pin screw-on extend cable x 2
- 1/3" CCD Color Night Vision water proof Mirrored camera x 1
- User's manual x 1
- One Year Warranty,parts & labor.
- There are other cameras you can select, all these cameras are compatible with this monitor.
| Manufacturer | Quality Mobile Video |
|---|---|
| Part Number | SM7127-1087KIT |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 1440 x 234 |
| LCD Screen Brightness | 300 Nit |
| Modulation | NTSC and PAL |
| Slide track on back | Yes |
| Mount included | Yes, Pedistal stand |
| Audio Video inputs | 4 Video Input |
| Wireless Remote Control | Yes |
| Reverse Image | Yes - Reverse Image |
| Camera Sensor type | CCD |
| Infrared Illumination | Yes |
| Connector Type | RCA Cable |
| Color | Black |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
