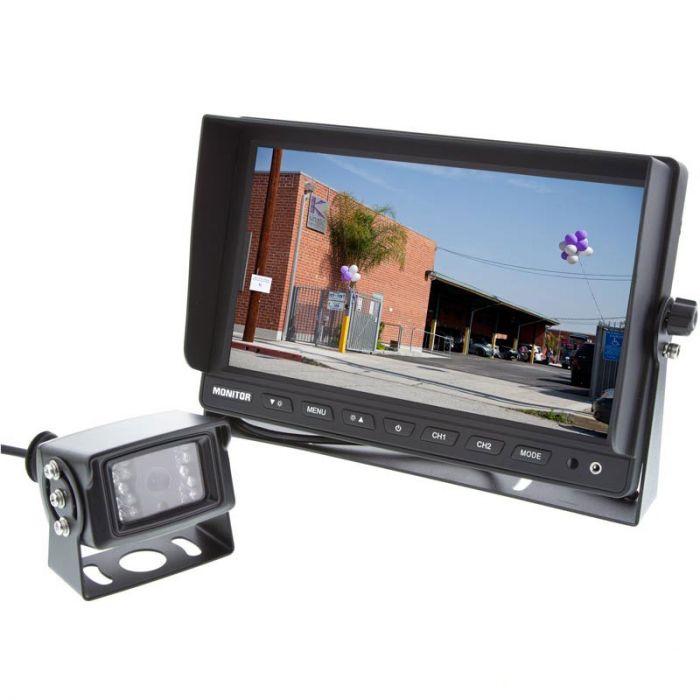

Safesight SC1004B Commercial 10 inch LCD Monitor and Black 120 degrees Wide Angle Weatherproof Camera - Complete kit

Safesight SC1004B Commercial 10 inch LCD Monitor and Black 120 degrees Wide Angle Weatherproof Camera - Complete kit

Safesight SC1004B Commercial Back up camera system - Monitor and Camera

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Safesight SC1004B Product Highlights

  • 10 inch TFT LCD High Definition display
  • 2 - RCA Video Inputs with single trigger, for use with multiple cameras and side cameras
  • Black Night vision CCD camera
  • 1 - 3.5mm front mount audio video input
  • Optional trailer cable
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: 10 inch LCD monitor, Wiring harness, Extension cable, Back up camera, Remote Control Instruction manual, and Connectors

Safesight Supply SC1004B Universal 10 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Camera System with 120 degrees Wide Angle Weatherproof Camera
    Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc) where a small monitor is needed. This system can be used with up to three cameras and can be connected to the SC1201 trailer cable for use with trailers.

    SafeSight TOP-D1001 10" Back up camera Monitor features:
  • 10 inch TFT LCD High Definition display
  • Integrated Sun shade to prevent direct sun light glare and to enhance picture quality
  • Commercial grade metal U-Bracket with adjustable thumb screws for angle adjustment
  • Backlit blue buttons for easy controls
  • 2 - RCA Video Inputs with one triggered for input, for use with multiple cameras and side cameras
  • 1 - RCA Stereo audio inputs
  • Built in speakers
  • 1 - 3.5mm front mount audio video input
  • PAL/NTSC auto switching
  • Image flip function so that monitor can be mounted in many different ways and image can be rotated to proper viewing
  • Resolution: 1024 x 600
  • Brightness: 300 NIT
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing system that is designed for commercial applications
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees
  • Dimensions: 10-1/4" (W) x 7-1/2" (H) x 2-3/4" (D)

  • Safesight SC0104 Back up Camera features:
  • High Resolution Back Up Camera
  • 1/4" CCD Sharp Image Sensor
  • System: NTSC/PAL
  • 420 TV lines
  • Effective Pixels: NTSC: 510 pixels x 492 pixels
  • 120 degrees Wide Angle Camera - for distortion free image
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 18 LEDs for Night Vision 45 ft distance
  • Selectable between reverse image and normal image
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminum Alloy
  • Square style casing
  • 4 Pin Connector

  • Extension Cable
  • Around 60 ft or 18 meters length
  • 4 Pin lock connector

  • Optional Compatible Safesight Cameras: SC0102, SC0104

Technical Specifications

Manufacturer Safesight
Part Number SC1004B
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 104 x 600
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
Modulation NTSC and PAL
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers Yes
Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 3 Video Inputs
Wireless Remote Control Yes
Monitor Type No
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter 1/4 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type 4 Pin Connector
Wireless Transmission Wired connection
Color Black
Operation Voltage 12 - 24 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Customer Reviews

Great quality
Review by
Install (5 star for easy)
I am very happy with this purchase. I chose to use a wired system instead of a wireless and am really happy I did! (Posted on 10/29/2013)

Write Your Own Review

You're reviewing: Safesight SC1004B Commercial 10 inch LCD Monitor and Black 120 degrees Wide Angle Weatherproof Camera - Complete kit

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Roy Santo, Thursday, July 17, 2014


I'm looking for the installation manual. I got the Top-D 1004 10" screen and the Top-4P4204R camera and wiring harness. My box did not come with any information/ instructions. Thank you, Roy S.


  • Posted by Salvador Diaz on Thursday, July 17, 2014

    Please give us a call at 800-363-0096 as we can help you with the installation and also email you a set of instructions to help you during the installation process.
