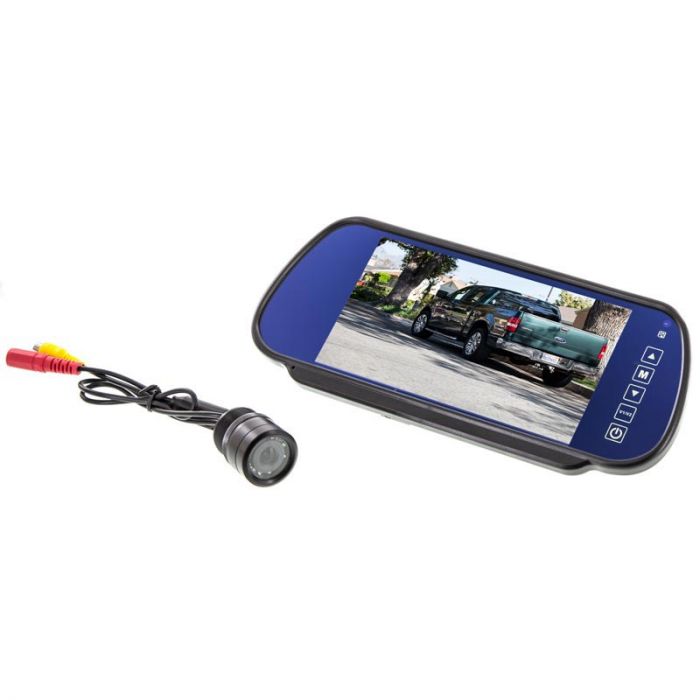

Safesight TOP-M7004 and SC0305 7 Inch Widescreen TFT LCD Rear View Mirror Monitor with Night Vision Back Up Camera and Anti Glare

Rating:
85 % of 100
$106.99
In stock
SKU
TOP-M7004-SC0305

Key Features

  • High Definition 7" 16:9 Wide Screen TFT LCD
  • Flush mount infrared night vision CMOS camera
  • Two AV Inputs (AV-1, AV-2)
  • Built-in Reverse Gear Sensor Wire - Trigger
Unit includes: 7 inch rear view mirror, Flush mount IR camera, Monitor wiring harness, Camera wiring harness, 18 foot RCA cable, Remote control, and Drill bit

Safesight TOP-M7004 & SC0305 7 Inch Widescreen TFT LCD Rear View Mirror Monitor with Night Vision Back Up Camera and Anti Glare
    Rear view mirror monitor details:
  • High Definition 7" 16:9 Wide Screen TFT LCD
  • PAL/NTSC Video System
  • Two AV Inputs (AV-1, AV-2)
  • Built-in Reverse Gear Sensor Wire - Trigger
  • Brightness, Color, Contrast, Tint, Language, Image rotate Control
  • Automatic Monitor Power On (AV-1)
  • Image rotate control allows you to rotate image 4 times and 90 degree intervals
  • Rear View Camera Priority
  • Anti Glare, Blue tinted clip on Mirror
  • Wireless Remote Control
  • Power Supply: 12V DC
  • Resolution" 1440x234 RGB
  • Dimensions: 9-7/8" (W) x 4-3/8" (H) x 3/4" (D)

  • Flush mount back up camera details:
  • 1/4" CMD sensor
  • 17-ft male to male RCA video cable
  • Includes drill cutout tool
  • Sensing area: 5.55mm x 5.55mm
  • Total pixels: 656 x 492
  • Resolution: 420 TV lines
  • Night vision low lighting capable
  • 10 IR LED lights
  • Min illumination: 0.04 LUX F1.2
  • 170 degree viewing angle
  • IP-66 water rating
  • Auto image adjustment
  • Video output: 1.0Vpp-75Ω
  • Power supply: DC 12V 200 mA
  • Camera overall dimension: 1.53"L x 1.237"D
  • Camera cutout dimension: 1.7"L x 1.095"D
More Information
Manufacturer Safesight
Part Number TOP-M7004-SC0305
LCD Screen Size 7 inch - 8 inch
Widescreen Display 16:9 Widescreen Display
Touchscreen Yes
Native Screen Resolution 1440 x 234
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No Dimming
Monitor Color Black
Swivel Screen No
Audio Video inputs 2 Video Inputs
HDMI input No
USB input No
SD Card input No
Built in Speakers No
Auto on/off Yes
Trigger wire Yes
Built in FM Modulator No
Built in Bluetooth No Bluetooth
Compass No Compass
Temperature No Temp
Image Flip Function Image rotate
Mirror Mount Type Clip On
Back up camera type Flush Mount Key hole camera
Monitor Type Rearview mirror monitor
Parking grid lines Yes
Modulation NTSC and PAL
Wireless Remote Control Yes
Warranty 90 days
Return period 30 days
Exchange period 30 days
