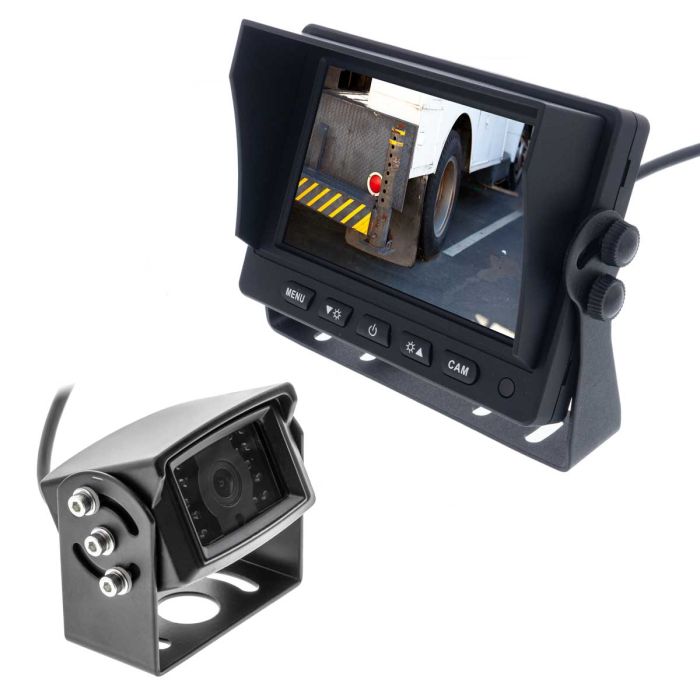

Safesight SC5003AHD 5 inch LCD Monitor and 1080p AHD Commercial Back Up Camera System
From $249.99
To $249.99
In stock
SKU
SC5003AHD
Expert Knowledge
Talk to a specialist
- 5 inch TFT LCD High Definition display
- 3 - 4-pin Video Inputs with triggers for each input, for use with multiple cameras and side cameras
- 1080p AHD surface mount camera
- 60 Foot camera extension cable
Unit includes: 5 inch LCD monitor, Wiring harness, 60 foot Extension cable, HD Back up camera, Remote Control and Instruction manual
Safesight SC5003AHD 5 inch LCD Monitor and 1080p AHD Commercial Back Up Camera System
SafeSight RM-506AHD 5" AHD Back up camera Monitor - 3 Video inputs
Safesight SC5003AHD 5 inch LCD Monitor and 1080p AHD Commercial Back Up Camera System
SafeSight RM-506AHD 5" AHD Back up camera Monitor - 3 Video inputs
- Monitor Features:
- 5 inch AHD LCD High Definition display
- Built in speaker to support cameras with audio
- AHD/PAL/NTSC auto switching
- Resolution: 1024 x 600
- Slide track on back for use with many different mounts
- Heavy Duty Reversing system that is designed for commercial applications
- OSD Menu (On Screen Display)
- Contrast, Color and Brightness
- View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees
- Brightness: 500 NIT
- Monitor Inputs and Outputs:
- (3) 4-Pin camera inputs, will accept AHD or composite video inputs
- (3) Camera trigger inputs
- (1) Power supply input
- Monitor Dimensions:
- Monitor Dimensions without stand or sunshade: 5-5/8" (W) x 4" (H) x 1" (D)
- Monitor Dimensions with stand and sunshade: 5-5/8" (W) x 4-3/4" (H) x 2-1/4" (D)
- Monitor Dimensions with stand and without sunshade: 5-5/8" (W) x 4-3/4" (H) x 1" (D)
-
Camera Features:
- High Resolution Back Up Camera with infrared illumination
- Selectable reverse image for rear view or front view - Rear mounted set screw changes mode
- 1.3 Megapixel CMOS Image Sensor
- System: AHD (Analog High Definition)
- Native 960p image sensor
- Effective Pixels: 1280 x 960
- 120° Wide Angle Camera
- Minimum Illumination: 1 Lux and 0 Lux (LED On)
- IR Infrared 18 LEDs for Night Vision up to 32 foot distance
- Operating Temperature: -10°~ +60° C (RH 95% Max)
- Power Supply: DC 12V
- Waterproof Rating: Ip68
- Shell Material Aluminum Alloy
- Square style casing
- 4 Pin Connector - RCA Adapters are sold separately
-
Camera Dimensions:
- Overall dimensions: 3-5/8" (W) x 2-5/8" (D) x 2-5/8" (H)
| Part Number | SC5003AHD |
|---|---|
| LCD Screen Size | 5 inch - 6 inch |
| Native Screen Resolution | 1024 x 600 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 350 Nit |
| LCD back light type | LED |
| Auto Dimming | No Dimming |
| Trigger wire | Yes |
| Modulation | AHD |
| Slide track on back | Yes |
| Image Flip Function | Image rotate |
| Built in Speakers | Yes |
| Mount included | Yes, Pedistal stand |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | No |
| Audio Video inputs | 3 Video Inputs |
| Wireless Remote Control | No |
| Monitor Type | Stand alone monitor |
| Back up camera type | Surface Mount Camera |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Selectable |
| Camera Sensor type | CMOS |
| Camera diameter | 1/4" |
| Viewing Angle | 120 degrees |
| Parking grid lines | Selectable |
| Built in Microphone | No |
| Infrared Illumination | Yes |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Battery Powered | Hard wired |
| Connector Type | 4 Pin Connector |
| Wireless Transmission | Wired connection |
| Operation Voltage | 12-32 Volt DC |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
