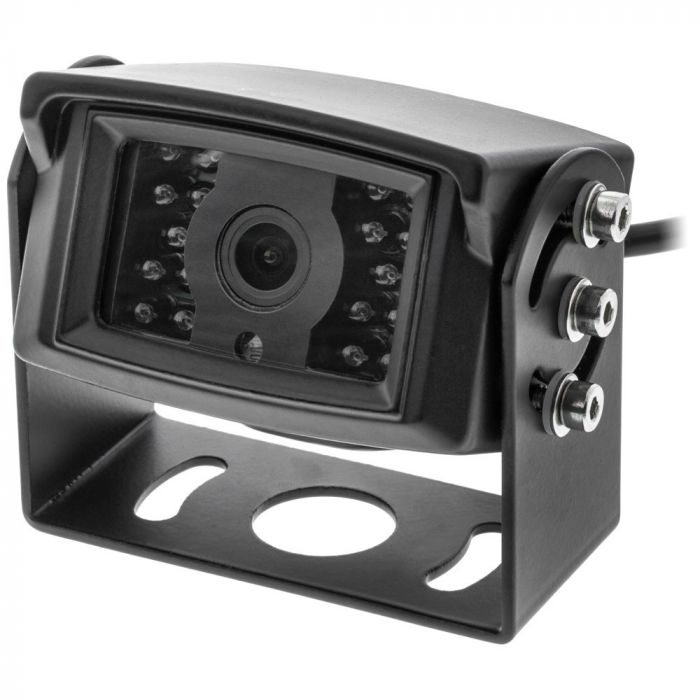

Safesight RC501AHD 1.3 Megapixel 960p Back Up Camera with 120 degrees viewing angle
$169.99
In stock
SKU
RC501AHD
Expert Knowledge
Talk to a specialist
- 1.3 Megapixel CMOS Image Sensor
- 120° Wide Angle Camera
- Commercial grade weather proof housing
- Selectable reverse image for rear view or front view
- Native 960p image sensor
- 18 IR LED's for 32 foot night vision
Unit includes: Back up camera, Mounting hardware, and Instruction manual
Safesight RC501AHD 1.3 Megapixel 960p Back Up Camera with 120° viewing angle
Safesight RC501AHD 1.3 Megapixel 960p Back Up Camera with 120° viewing angle
-
Features:
- High Resolution Back Up Camera with infrared illumination
- Selectable reverse image for rear view or front view - Rear mounted set screw changes mode
- 1.3 Megapixel CMOS Image Sensor
- System: AHD (Analog High Definition)
- Native 960p image sensor
- Effective Pixels: 1280 x 960
- 120° Wide Angle Camera
- Minimum Illumination: 1 Lux and 0 Lux (LED On)
- IR Infrared 18 LEDs for Night Vision up to 32 foot distance
- Operating Temperature: -10°~ +60° C (RH 95% Max)
- Power Supply: DC 12V
- Waterproof Rating: Ip68
- Shell Material Aluminum Alloy
- Square style casing
- 4 Pin Connector - RCA Adapters are sold separately
-
Dimensions:
- Overall dimensions: 3-5/8" (W) x 2-5/8" (D) x 2-5/8" (H)
| Manufacturer | Safesight |
|---|---|
| Part Number | RC501AHD |
| Camera Sensor type | CMOS |
| Back up camera type | Surface Mount Camera |
| Camera diameter | 1/3" |
| Viewing Angle | 120 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Reverse Image | Selectable |
| Parking grid lines | Yes |
| Infrared Illumination | Yes |
| Built in Microphone | No |
| Connector Type | 4 Pin Connector |
| Modulation | AHD |
| Operation Voltage | 12-15 Volt DC |
| Battery Powered | Hard wired |
| Cigarette Lighter Cord Included | No |
| Color | Black |
| Overall Height | $2.63 |
| Overall Length | $2.63 |
| Overall Width | $3.63 |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
