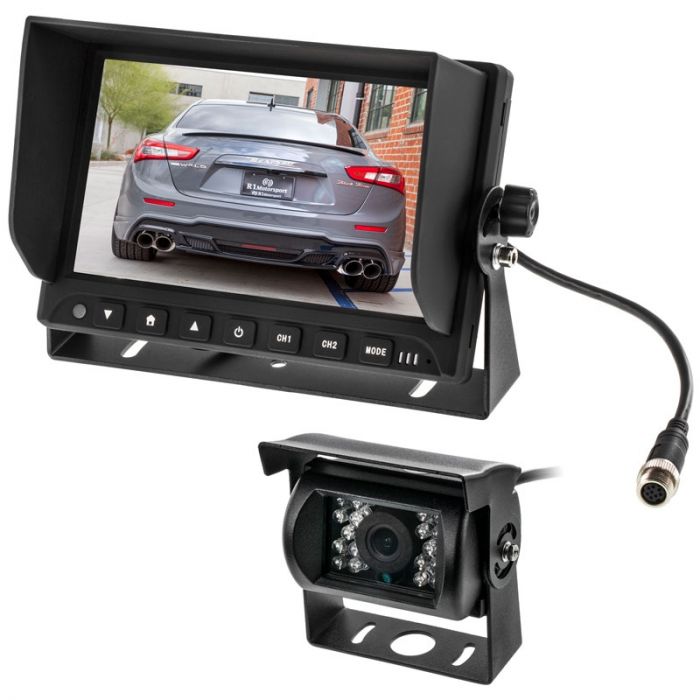

Safesight SC9012 7 inch Reverse Backup Camera System with 120 Degree Wide Angle Camera
$144.99
In stock
SKU
SC9012
Expert Knowledge
Talk to a specialist
- Universal 7 inch LCD Monitor with two video inputs
- (2) Video inputs
- Reverse trigger
- 1/3" Sharp Color CMOS image sensor for excellent color rendition, contrast, and resolution
- IR Night Vision
- Built in Sun Visor on Monitor and camera
Unit includes: Monitor, Camera, 60 foot 4-Pin cable, Remote Control and Instruction manual
Safesight SC9012 7 inch Reverse Backup Camera System with 120 Degree Wide Angle Camera
- Monitor feature:
- Universal 7 inch LCD Monitor with two video inputs
- Positive trigger wire input, monitor turns on and switches to backup camera input when 12 volts is applied
- Removable sun sheild
- Ultra rigid U-frame bracket with two retention screws per side for commercial vehicles
- Soft-touch buttons with backlite
- Rubberized housing for excellent look
- 16:9 Wide Screen
- PAL/NTSC System
- (4) Brightness modes(Regular/Soft/Vivid/Light)
- PAL/NTSC System
- Resolution: 800 X 480
- Wireless Remote Control
- Blue screen appears when no signal
- Monitor Inputs and Outputs
- 2 - 4-Pin Video Inputs
- 1 - 12 volt trigger input
- 1 - Power Supply: DC 12v
- Monitor Dimensions:
- Active Display area: 6" L x 3-3/8" W
- Camera features:
- 1/3" Sharp Color CMOS image sensor for excellent color rendition, contrast, and resolution
- Adjustable sun shade to repvent reflections on the camera lens
- 120° wide angle camera
- 18 - IR Infrared LED's for night vision that is capable of seeing in complete darkness
- Weatherproof, Shockproof and High Temperature Resistance
- Recommended for Light Duty Trucks, RVs and Delivery or Commercial Vans
- Includes 60ft camera cable that carries power and video
- Camera inputs and Outputs
- 1 - 4-Pin video output
- Camera Dimensions:
- 3-1/4"(W) x 3" (H) x 3" (D)
- Cable features:
- 60 foot 4-pin camera cable
- Cable carries power, ground and signal
- Weatherproof design with screw on sealed connecctors
- Rubber O-ring seals to prevent water intrusion
| Manufacturer | Safesight |
|---|---|
| Part Number | SC9012 |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 300 Nit |
| LCD back light type | LED |
| Auto Dimming | Yes - Screen Dimming |
| Trigger wire | Yes |
| Modulation | NTSC and PAL |
| Slide track on back | No |
| Image Flip Function | Image rotate |
| Built in Speakers | Yes |
| Mount included | Yes, Pedistal stand |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | No |
| Audio Video inputs | 2 Video Inputs |
| Wireless Remote Control | Yes |
| Monitor Type | Stand alone monitor |
| Back up camera type | Surface Mount Camera |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Yes - Reverse Image |
| Camera Sensor type | CMOS |
| Camera diameter | 2.8 mm |
| Viewing Angle | 120 degrees |
| Parking grid lines | No |
| Built in Microphone | No |
| Infrared Illumination | Yes |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Battery Powered | Hard wired |
| Connector Type | 4 Pin Connector |
| Wireless Transmission | Wired connection |
| Color | Black |
| Operation Voltage | 12-32 Volt DC |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
