Safesight SC9002HD 7 inch 720p High Definition Commercial RV Back Up Camera System

Safesight SC9002HD 7 inch 720p High Definition Commercial RV Back Up Camera System

Safesight SC9002HD 7 inch High Definition Commercial RV Back Up Camera System - Main


More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight SC9002HD Product Highlights

  • 720p HD 7 inch LCD monitor with two video inputs
  • Monitor Resolution: 1024 x 600
  • 1.3 Megapixel 720p 1/3" Night vision CMOS camera
  • 120° viewing angle
  • IP69K waterproof rating
  • System voltage: 9 Vdc - 36 Vdc
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

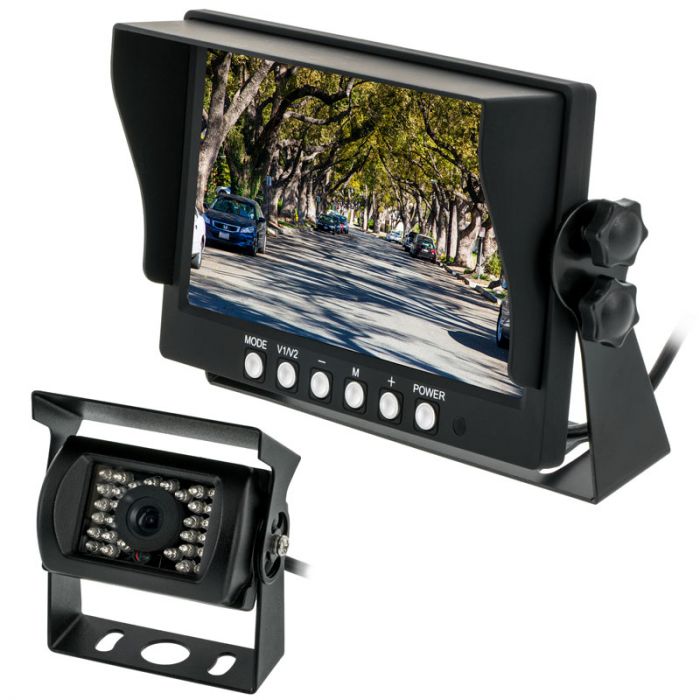

Unit includes: 7 inch LCD monitor, Monitor Bracket, Removable sun shade, Wiring harness, 60 foot extension cable, Back up camera, Remote Control Instruction manual, and Connectors

Safesight has reintroduced one of its best selling back up camera systems but added 720p HD! That's right Safesight has brought you the first high definition back up camera system. The system is fully backwards compatible with non-HD cameras and cables, so you can easily change your existing SC9002 camera and monitor and use the existing cable and add the new HD monitor and camera. You can also use a non-HD camera as a front or auxiliary camera since the monitor supports two video inputs.

Safesight SC9002HD 720p HD Back Up Camera System
    Monitor Features:
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)
  • Strong industrial U-bracket with dual mounting screws per-side
  • Includes removable sun shade
  • 720p HD Digital 7 inch LCD monitor with two video inputs
  • PAL / NTSC / AHD auto switching
  • Resolution: 1024 x 600 x RGB
  • Brightness: 250 NIT
  • Power Supply: DC 9 Volts - 36 Volts
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • 4-way image rotation function
  • View Angle range; Left/Right - 65° Top - 40° Down - 15°
    Monitor inputs and Outputs:
  • 1 - 4-pin back up camera input (Video 1)
  • 1 - 4-pin camera input (Video 2)
  • 1 - 12 volt trigger (Video 1)
  • 1 - power and ground input
    • Camera Features:
    • High Resolution Back Up Camera
    • 1/3" 1.3 Megapixels CMOS Sensor
    • Effective Pixels: 1280 x 960
    • 120° Wide Angle Camera
    • Minimum Illumination: 0 Lux (LED On)
    • IR Infrared LEDs for Night Vision 20 meters distance
    • Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
    • Operating Temperature: -20 degrees C ~ +70 degrees C (RH 95% Max)
    • Lens: F = 2.5mm/ 1.7mm
    • Power Supply: DC 12V
    • Camera Dimensions: 2-3/4" (W) x 1-15/16 (D) x 1-5/8"(H)
    • Waterproof Rating: Ip69K
    • Shell Material Aluminium Alloy
    • Square style casing
      Compatible Cables:
    • TOP-CBL15
    • TOP-CBL30
    • TOP-CBL45
    • TOP-CBL60

Technical Specifications

Manufacturer Safesight
Part Number SC9002HD
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1024 x 600
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 250 Nit
LCD back light type LED
Auto Dimming No Dimming
Trigger wire Yes
Modulation NTSC and PAL
Slide track on back Yes
Image Flip Function Image rotate
Built in Speakers No
Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 2 Video Inputs
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image Selectable
Camera Sensor type CMOS
Camera diameter 1/3 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Battery Powered Hard wired
Case included No
Connector Type 4 Pin Connector
Wireless Transmission Wired connection
Color Black
Operation Voltage 12 - 32 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Write Your Own Review

You're reviewing: Safesight SC9002HD 7 inch 720p High Definition Commercial RV Back Up Camera System

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Torin, Wednesday, March 29, 2017


I would like to use this with my travel trailer. Is it possible to use a quick disconnect cable with this kit?


Posted by Torin Segstro, Wednesday, September 28, 2016


I would like to buy a second camera that would connect to this monitor and can't seem to find the same model camera separately on your website.
