Swann’s latest network video security system with 720p high definition live viewing & playback. The system records in real-time with 25 / 30frames per second per channel. Get state-of-the-art digital imaging technology that offers 10 times the picture sharpness of traditional security systems including analog CIF.

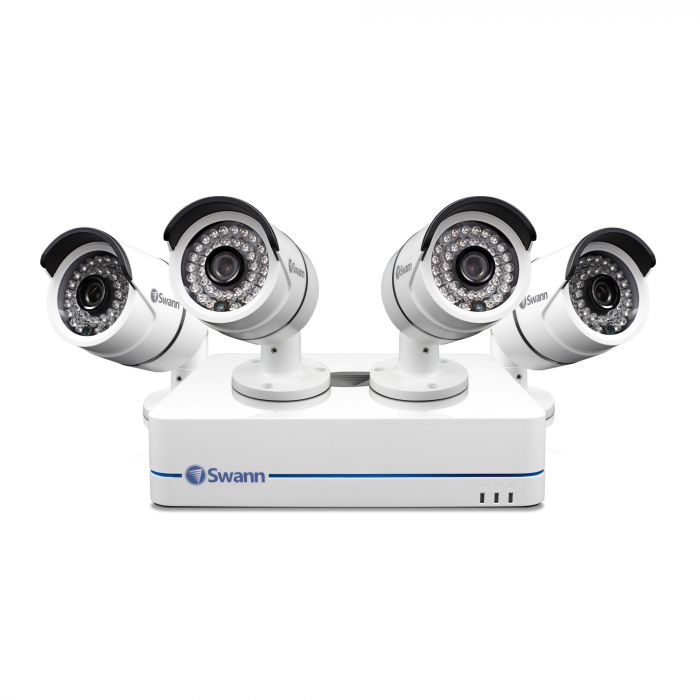

The SWNNVK-870854 Includes 4 x 1000 TV Lines cameras capable of generating crystal clear 1280 x 720 pixels (1 Megapixel) video with IR cut filters for extra-powerful night vision to 82ft / 25m and an all weather resistant rating of IP66 for indoor & outdoor use.
You can set & forget by recording continuously from 8 channels for 48+ days onto a 2TB hard drive or even longer with motion detection & have peace of mind by easily locating incident video, then transfer to external storage via USB or network
While away you can have the security in the palm of your hand with live viewing on your Smartphone or tablet including iOS (iPhone, iPad) & Android devices using the free SwannView app with email notifications if there is activity
You can also view the video live in 720p HD on your HDTV via HDMI connection to your LCD screen
Professional surveillance system gives you peace of mind by being able to see the detail you need from longer distances including license plates, faces, clothing colors & more, all in full HD
Incredibly easy installation for the do-it-yourselfer as cameras are powered by the NVR & connect via single CAT5E Ethernet cables (included). Connect the NVR to the internet in minutes using the setup software wizard.
|Max DVR Channels||8 channel|
|DVR HDD Capacity||2 TB|
|Wireless Transmission||No, wired connection|
|Built in Microphone||No|
|Included cameras||4 cameras|
|Camera Sensor type||CMOS|
|Sensor Size||1/4 inch|
|Lines of Resolution||720p|
|Minimum Illumination||1lux@F1.2, 0 lux with IR|
|Viewing Angle||70 degrees|
|IR LED Count||48|
|Dynamic Range (dB)||No|
|AGC (Automatic Gain Control)||Built In|
|IR range (ft)||80ft to 90ft|
|OSD (On Screen Display)||Yes|
|Modulation||NTSC and PAL|
|Lens Type||Fixed focal length|
|Relative Aperture (F-stop)||1.4|
|Focal Length (mm)||4mm|
|Waterproof ingress protection||IP66 - Dust; String Water Jets/Waves|
|Battery Powered||Hard wired|
|Ac Adapter included||Yes|
|Operation Voltage||48 Volt DC|
|Power consumption Amps||No|
|Connector Type||RJ45 Connector|
|Signal type||NVR PoE|
