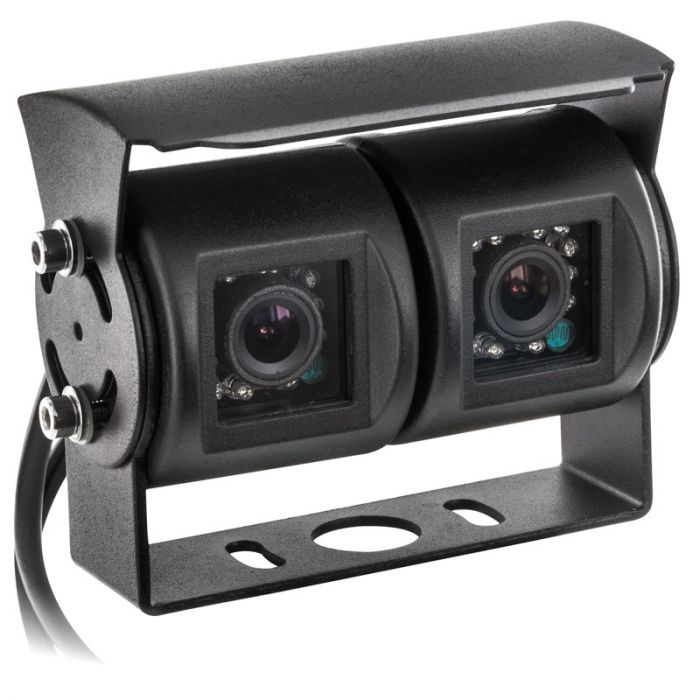

Metra TE-CCDL Dual 1/3 inch CCD Rear View Back Up Cameras - Black finish
$176.99
In stock
Only 1 left
SKU
TE-CCDL
Expert Knowledge
Talk to a specialist
- Dual cameras in a single housing
- Each camera contains a 1/3" Sony CCD Color image sensor
- Each camera has 12 IR LED's for night-vision - effective range is 25 feet per camera
- 120 degrees angles
- Reverse image and Front Viewing option
- Black powder coated finish
- RCA Outputs
Unit includes: Double back up camera, Mounting hardware, Wiring harness, and Instruction manual
Metra TE-CCDL Dual 1/3 inch CCD Rear View Back Up Cameras
Features:
Metra TE-CCDL Dual 1/3 inch CCD Rear View Back Up Cameras
Features:
- Offers simultaneous viewing through 2 different cameras
- Dual cameras in a single housing - Both have 120 degree wide angle viewing
- Each camera is individually adjustable for angle
- Ideal applications for large size vehicles, trailers, trucks, RV and buses
- Each camera contains a 1/3" Sony CCD Color image sensor
- Each camera has 12 IR LED's for night-vision - effective range is 25 feet per camera
- The dual lens can be adjusted so that one lens captures whats ahead and the other to shows whats directly in front of the bumper
- Quick Specifications
- 520 TV Lines of resolution per camera
- Effective pixels per camera: 768 (H) x 494 (V)
- Reverse image and Front Viewing option (mirror/ normal image switch)
- Low Light performance of 0 lux @ F1.2 with IR
- Functional with up to 100 feet of extension cable and includes two 4-Pin DIN to RCA connectors
- IP69K Waterproof rating
- Both Cameras have a 120 Degree viewing angle for short distance viewing
- Black powder coated housing
-
Dimensions:
- Camera dimensions: 3-7/8" (W) x 3-1/4" (H) x 2-3/8" (D)
| Manufacturer | Metra |
|---|---|
| Part Number | TE-CCDL |
| Camera Sensor type | CCD |
| Back up camera type | Surface Mount Camera |
| Camera diameter | 1/3 |
| Viewing Angle | 120 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP69K - Dust; High Pressure and Temperature rating |
| Reverse Image | Selectable |
| Infrared Illumination | Yes |
| Connector Type | 4 Pin Connector |
| Battery Powered | Hard wired |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 086429347568 |
| Return period | 30 days |
| Exchange period | 30 days |
