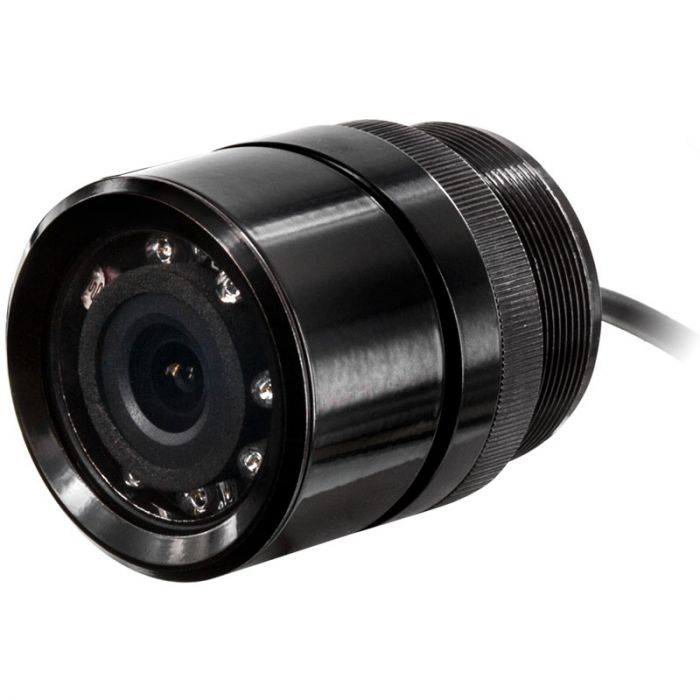

iBeam TE-THC Flush Mount Bullet back up camera with IR illumination
$99.99
In stock
SKU
TE-THC
Expert Knowledge
Talk to a specialist
- 170° viewing angle
- Flush Mount Camera
- Night Vision
- Low Light Sensitive
- Mirror Imaged
Unit includes: Back up camera, Mounting rings, Angle mounting rings, 20ft RCA cable, DC power cable, and Drill bit
iBeam TE-THC Flush Mount Bullet back up camera with IR illumination
iBeam TE-THC Flush Mount Bullet back up camera with IR illumination
- Features:
- Flush mount design so body of camera hides behind the surface
- 1/4" color CMOS sensor for exceptional image quality
- 170° viewing angle
- Infrared IR illumination for nightvision capabilities, can see in complete darkness with a range of 30 feet
- Scanning system: 2:1 interface
- Imager Resolution: 656 x 492 pixels
- Parking grid lines - can be enabled or disabled with cut wire
- Mirrored image for back up use
- Current consumption: Max 120mA
- Power supply: 12V DC
- IP67 waterproof rating
- One year warranty parts & labor
- Dimensions:
- Overall Dimensions: 1-7/8" (L) x 1-1/4" (D)
- Cutout Diameter: 1-1/8" (D)
| Manufacturer | iBeam |
|---|---|
| Part Number | TE-THC |
| Camera Sensor type | CMOS |
| Back up camera type | Flush Mount Key hole camera |
| Camera diameter | 5.5 mm |
| Viewing Angle | 170 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Selectable |
| Parking grid lines | Yes |
| Infrared Illumination | Yes |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 8-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Overall Height | $1.25 |
| Overall Length | $1.88 |
| Overall Width | $1.25 |
| Warranty | 1 Year |
| UPC Code | 86429255542 |
| Return period | 30 days |
| Exchange period | 30 days |
