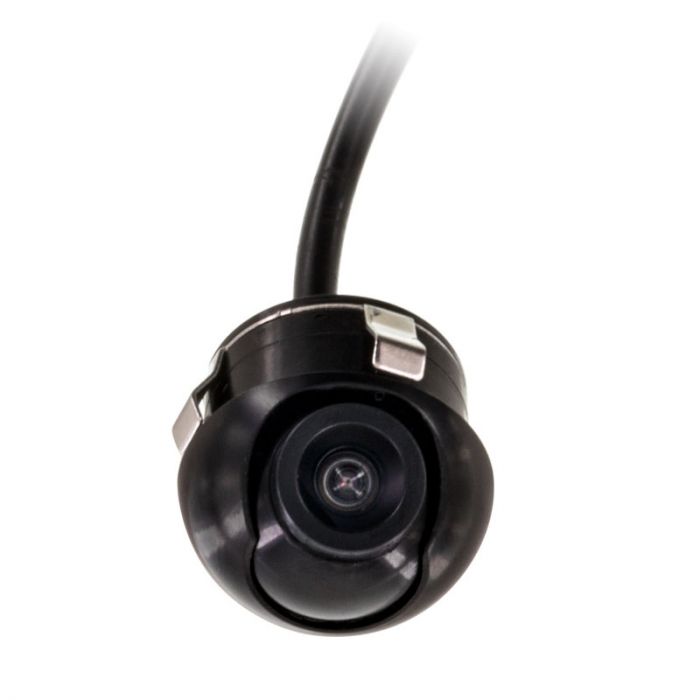

iBeam TE-RRSC Rotating Eyeball Front or Car Camera

$52.99
In stock
SKU
TE-RRSC

Key Features

  • Rotating Eyeball Camera
  • Front or rear view use
  • Built in three color parking grid lines
  • CMOS image sensor
  • 170° wide viewing angle
  • Black housing
Unit includes: Car camera, Wiring harness, Retaining nut, and Instruction manual

Beautifully small

Excellent picture quality can come from a very small camera, this micro camera can be mounted on any overhang; near the license plate in the front or the back, even the rear view mirrors, you can mount this camera anywhere.

iBeam reputation

iBeam is very respected brand in car back up camera systems. The TE-RRSC back up camera offers iBeam quality in a package that is very versatile


iBeam TE-RRSC Rotating Eyeball Front or Car Camera
    Features:
  • Universal Rotating Eyeball mount car camera camera
  • 2 cut-able wires allow you to change between reverse and non reverse and guide lines and no guide lines
  • Camera can be used for front or rear view use
  • Camera can be flush mounted under a ledge or straight forward for front or rear use
  • Built in three color parking grid lines for visual representation of distance to another vehicle or object
  • 170° wide viewing angle
  • 2.8 mm color CMOS sensor
  • IP67 rated
  • Resolution 420 TV lines
  • Active pixels: 656 (H) x 492 (V)
  • Image sensor: CMOS7070
  • Operating Temperature: -22° C - 70° C
  • AGC: auto White balance: auto
  • Electronic shutter: 1/60 - 1/15,000 second
  • Current consumption: Max 100mA. Power supply 12V DC
  • .5 Lux light sensitivity
  • Black color housing
    Dimensions:
  • Dimension: 7/8" (Diameter) x 5/8" (H)
  • Drill diameter: 18.5mm or 3/4"
More Information
Manufacturer iBeam
Part Number TE-RRSC
Camera Sensor type CMOS
Back up camera type Top down Camera
Camera diameter 2.8mm
Viewing Angle 170 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Overall Height 1.06 inches
Overall Length 1.00 inches
Overall Width 1.00 inches
Warranty 1 Year
UPC Code 086429303151
Return period 30 days
Exchange period 30 days
