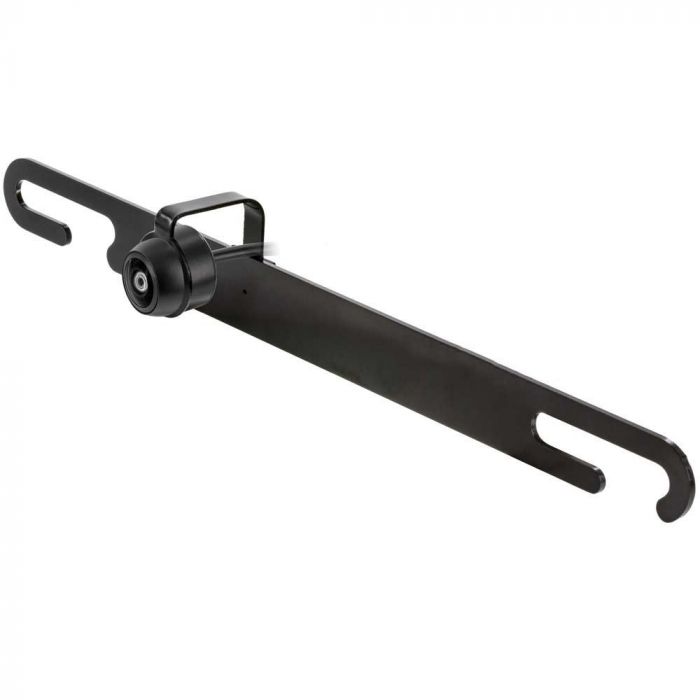

Accelevision TLP150HD Black Metal Bar Behind Mount License Plate Backup Camera

$96.99
In stock
SKU
TLP150HD

Key Features

  • Universal behind the license plate mount back up camera with black finish
  • HD quality highly sensitive 1/4" CMOS image sensor
  • Viewing Angle: 180° wide angle view
  • CMOS imaging device
  • Static parking grid lines - visual reference to objects
  • Excellent low light performance
Unit includes: License plate camera, Power lead, 23 foot RCA Connector and Instruction manual

Accelevision TLP150HD Black Metal Bar Behind Mount License Plate Backup Camera
    Features:
  • Universal behind the license plate mount back up camera with black finish
  • HD quality highly sensitive 1/4" CMOS image sensor
  • Viewing Angle: 180° wide angle view
  • 520 TVL Horizontal Resolution
  • Camera has swivel for adjusting the vertical point of view
  • Remarkable low Lux performance of 0.01 Lux at F2.0 - License plate light provide plenty of light when vehicle is placed in reverse
  • Excellent Auto White Balance
  • Waterproof (IP68)
  • Static parking grid lines - visual reference to objects
  • Current Consumption: 50mA, Max 300mA
  • White balance: Auto
  • Effective pixels: 728 Horizontal x 488 vertical
  • Power source: DC12V +/- 10%
  • Operating Temp: -4° F ~ 167° F ( -20° C ~ + 75° C )
  • Storage Temp: -40° F ~ 185° F ( -40° C ~ + 85° C )
    Inputs and Outputs:
  • (1) - RCA video output
  • (1) - 12 volt power input
  • (1) - 12 volt ground input
More Information
Manufacturer Accelevision
Part Number TLP150HD
Camera Sensor type CMOS
Back up camera type License Plate Camera
License Plate Camera Type Bar style
Camera diameter 2.96 mm
Viewing Angle 180 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Overall Height 1.25 inches
Overall Length 1.50 inches
Overall Width 8.75 inches
Warranty 1 Year
UPC Code 736836550470
Return period 30 days
Exchange period 30 days
