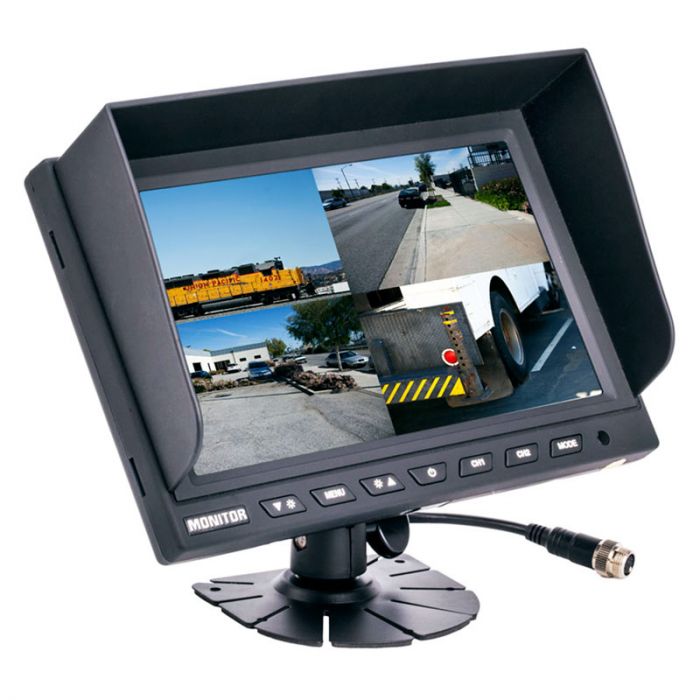

Safesight TOP-SS-009LQ 9 inch Quad Screen Monitor for Back Up camera
$192.99
In stock
SKU
TOP-SS-009LQ
Expert Knowledge
Talk to a specialist
- Complete back up camera monitor for commercial or passenger vehicle use
- Quad viewing capability with four independent camera triggers for full 360 all around view
- Digital TFT 9 inch LCD panel
- Removable sun shield for better viewing in bright daylight
- Elegant rubberized finish
- Pedestal stand with thumb screw angle adjustments
- Automatic Turn on
- Two camera inputs
Unit includes: 9 inch Quad screen display, Wiring harness, Pedestal mount, Remote control, and Instruction manual
Safesight TOP-SS-009LQ 9 inch Quad Screen Monitor for Back Up camera
Safesight TOP-SS-009LQ 9 inch Quad Screen Monitor for Back Up camera
- Quad screen features:
- Complete back up camera monitor for commercial or passenger vehicle use
- Quad viewing capability with four independent camera triggers for full 360 all around view
- Monitor is designed for front camera, left side camera, right side camera, and rear camera
- Monitor will display quad screen in it's normal state and will switch to full screen image of the camera in which you are headed such as when you turn on your turn signal that camera display's full screen. (Triggers must be connected)
- Monitor feature:
- Digital TFT 9 inch LCD panel
- Removable sun shield for better viewing in bright daylight
- Elegant rubberized finish on monitor housing
- Easy to mount with included fan mount, can be attached to top of dash or directly behind wall type mounting
- Pedestal stand with thumb screw angle adjustments
- Slide track on back for use with a variety of mounts
- Image rotation function to modify display settings for different cameras mounted in non normal positions
- Automatic Turn on and video switching with trigger wire - 12 volt positive trigger
- 4 - Way image rotation so monitor or camera can be mounted upside down and image rotated to proper orientation (Modifies setting on all cameras, no independent camera setup)
- Full Function, OSD (on screen display) Menu for display controls
- Built-in Speaker for cameras that support audio
- Contrast, Color, Hue, Volume, Image rotation and Brightness adjustments
- Language Selection (English, German, French, Spanish, Korean, Chinese)
- NTSC / PAL auto switching
- Resolution: 800 x 480 x 3 (RGB)
- Power Supply: 12Vdc - 24Vdc
- Inputs and Outputs:
- 4 - 4 pin screw connector Audio Video inputs
- 4 - 12 volt trigger for automatic power on and camera select
- Dimensions
- Dimensions of monitor no bracket with sun shield: 9-1/4" (W) x 6-1/8"(H) x 2-7/8" (D)
- Dimensions of monitor no bracket without sun shield: 9-1/4" (W) x 6-1/8"(H) x 1-1/8" (D)
- Dimensions of monitor with bracket: 9-1/4" (W) x 9-3/8"(H) x 2-1/4" (D)
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-009LQ |
| LCD Screen Size | 9 inch - 10 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 250 Nit |
| Swivel Screen | Yes |
| Touchscreen | No |
| Modulation | NTSC and PAL |
| Anti-Shock | Yes |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in FM Modulator | No |
| Built in Speakers | Yes |
| HDMI input | No |
| VGA input | No - VGA input |
| Audio Video inputs | 4 Audio Video Input |
| Composite video input | Yes |
| Front mounted auxiliary input | None |
| USB input | No |
| SD Card input | No |
| Housing material | Plastic |
| Slide track on back | Yes |
| Mounting thread for stand mount | Yes |
| Mount included | Yes, Pedistal stand |
| Trigger wire | Yes |
| Image Flip Function | Image rotate |
| Quad Screen | Yes |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-24 Volt DC |
| Ac Adapter included | No |
| Headrest Shroud included | No |
| Wireless Remote Control | Yes |
| Monitor Color | Black |
| Color | Black |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
