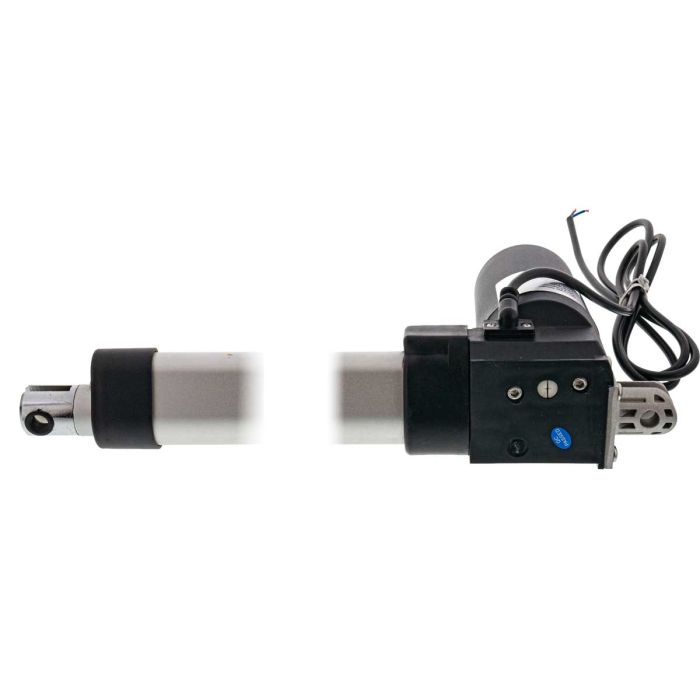

The TOP-A6108CW3 is a high-performance 8" stroke linear actuator with a powerful 300 LB capacity. Designed for demanding custom installations, it features a high-speed operation (1.25" per second no load), built-in limit switches, reed switch feedback, and an IP66 waterproof rating. Perfect for car audio lift kits, motorized panels, and various automation projects. Reliable, durable, and ready for your next build.
Features:
- Stroke 8"
- Speed per second 1.25 inch per second no load
- Speed per second .3 inch per second at full rated load
- Useful load pounds: 300
- Power consumption 3 amps at 12vdc no load
- Power consumption 8 amps at 12vdc at full load
- Built in limit switches
- Anodized Aluminum Housing
- Internally lubricated jack screw
- Side mounted DC motor
- Built in reed switch for feedback as to where the actuator is in its extension, used in control systems
- Fixed internal limit switches
- IP 66 waterproof rating
- S2 Duty cycle rating
- Operating Temperature: -26C - 65C
Dimensions:
- Closed Total Length 16"
- Closed Length Center Eye to Center Eye: 15"
- Open Length 23 7/8"
Connections:
- Brown wire: Actuator
- Blue wire: Actuator
- Red wire: Potentiometer
- Black wire: Potentiometer
