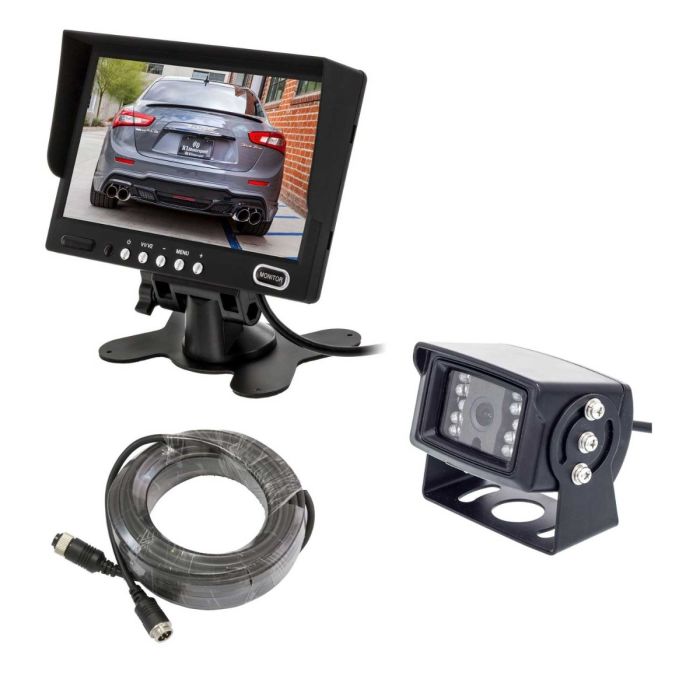

Safesight TOP-SS-007LAHDKIT AHD High-Definition 7 inch Monitor with Surface mount 1080P AHD camera and cable
$329.99
In stock
SKU
TOP-SS-007LAHDKIT
Expert Knowledge
Talk to a specialist
- 7 inch High-Definition monitor
- Accepts regular 4-pin camera and AHD cameras up to 1080p
- (2) 4-pin camera Audio Video Inputs
- Built in sun shield
- Automatic switching with trigger
- 1.3 Megapixel CMOS Image Sensor
- 120° Wide Angle Camera
- Commercial grade weather proof housing
- Selectable reverse image for rear view or front view
- Native 960p image sensor
- 18 IR LED's for 32 foot night vision
Monitor includes: 7 inch LCD display, Wiring harness, Auxiliary AV input cable, U-Bracket, Remote control, and Instruction manual
Safesight TOP-SS-007LAHD High-Definition 7 inch Monitor with 2 Video Inputs for AHD back up cameras with built in sun shade
Safesight RC501AHD 1.3 Megapixel 960p Back Up Camera with 120° viewing angle
Safesight TOP-CBL60 60 Foot Camera Extension Cable features:
Safesight TOP-SS-007LAHD High-Definition 7 inch Monitor with 2 Video Inputs for AHD back up cameras with built in sun shade
- Features:
- 7 inch TFT LCD digital panel monitor
- Accepts regular 4-pin camera and AHD cameras up to 1080p
- Built in sun shield
- Elegant rubberized finish
- Fan mount monitor with thumb screw angle adjustments
- Slide track on back for use with a variety of mounts
- Image rotation function to modify display settings for different cameras mounted in non normal positions
- Automatic switching with trigger
- Optional PAL and NTSC system
- Resolution 800 x 480 x 3 RGB
- Power Supply 12Vdc - 24Vdc
- Remote Control Full Function, OSD (on screen display) Menu
- Built-in Speaker
- Contrast, Color and Brightness
- Language Selection
- Inputs and Outputs:
- (2) 4-pin camera Audio Video Inputs
- (1) 12-24 Volt power connection
- (1) 12-24 Volt ground connection
- (1) 12-24 Volt rear trigger
- Dimensions:
- Dimensions of monitor no bracket: 6-7/8" (W) x 4-1/2"(H) x 3/4" (D)
Safesight RC501AHD 1.3 Megapixel 960p Back Up Camera with 120° viewing angle
-
Features:
- High Resolution Back Up Camera with infrared illumination
- Selectable reverse image for rear view or front view - Rear mounted set screw changes mode
- 1.3 Megapixel CMOS Image Sensor
- System: AHD (Analog High Definition)
- Native 960p image sensor
- Effective Pixels: 1280 x 960
- 120° Wide Angle Camera
- Minimum Illumination: 1 Lux and 0 Lux (LED On)
- IR Infrared 18 LEDs for Night Vision up to 32 foot distance
- Operating Temperature: -10°~ +60° C (RH 95% Max)
- Power Supply: DC 12V
- Waterproof Rating: Ip68
- Shell Material Aluminum Alloy
- Square style casing
- 4 Pin Connector - RCA Adapters are sold separately
-
Dimensions:
- Overall dimensions: 3-5/8" (W) x 2-5/8" (D) x 2-5/8" (H)
Safesight TOP-CBL60 60 Foot Camera Extension Cable features:
- Waterproof 60 ft 4 pin screw connector back up camera extension cable
- Rubber boots for connectors to prevent water intrusion
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-007LAHDKIT |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 800 x 600 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 300 Nit |
| LCD back light type | LED |
| Auto Dimming | No Dimming |
| Trigger wire | Yes |
| Modulation | AHD |
| Slide track on back | Yes |
| Image Flip Function | Image rotate |
| Built in Speakers | Yes |
| Mount included | Yes, Pedistal stand |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | No |
| Audio Video inputs | 2 Audio Video Inputs |
| Wireless Remote Control | No |
| Monitor Type | Stand alone monitor |
| Back up camera type | Surface Mount Camera |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Selectable |
| Camera Sensor type | CMOS |
| Camera diameter | 1/3" |
| Viewing Angle | 120 degrees |
| Parking grid lines | Yes |
| Built in Microphone | No |
| Infrared Illumination | Yes |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Battery Powered | Hard wired |
| Connector Type | 4 Pin Connector |
| Wireless Transmission | Wired connection |
| Color | Black |
| Operation Voltage | 12-24 Volt DC |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
