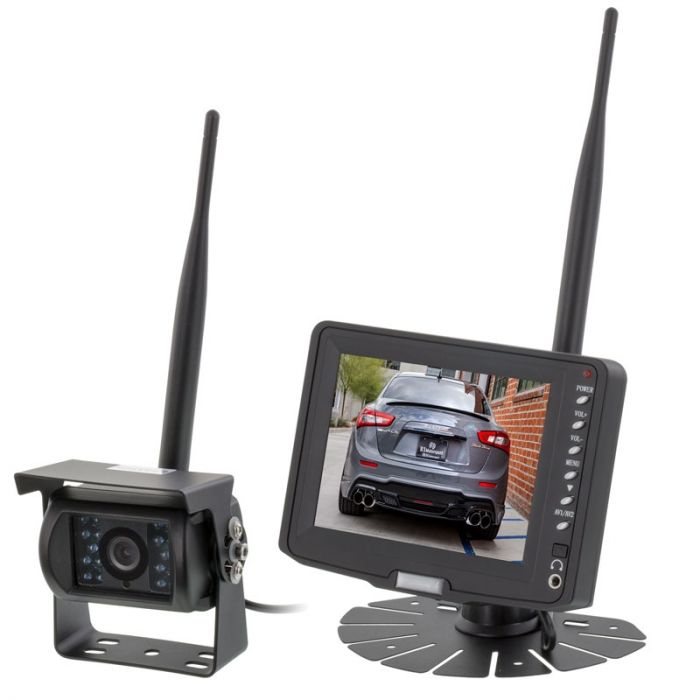

Safesight TOP-SS-501W2 Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Digital Wireless Camera System
- Digital Wireless Technology not subject to common interference and static, much better than Analog wireless systems
- 5 inch LCD display
- 1/3 inch Sharp CCD camera for superior night time picture quality
Unit includes: 7 inch LCD monitor/w wireless receiver, Wiring harness, Back up camera/w Wireless Transmitter, Remote Control Instruction manual, and Connectors
Safesight Safesight TOP-SS-501W2 Universal 5 inch LCD Monitor and Heavy Duty Commercial RV Back Up CCD Digital Wireless Camera System
-
Digital Wireless Technology
This camera system comes with digital wireless technology for no static or interference guaranteed. The future in wireless technology, a digital broadcast signal completely eliminates the loss of signal often found on standard wireless camera systems that run off an analog signal.
- Overview:
- 5 inch LCD monitor/w wireless receiver
- Remote Control
- Night vision CCD camera/w wireless transmitter
- Wireless Digital signal
Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)
-
Wireless Digital Monitor
- 5 inch TFT LCD High Resolution
- PAL/NTSC auto switching
- Resolution: 800x480xRGB
- Power Supply: DC 12-24V
- Heavy Duty Reversing
- OSD Menu (On Screen Display)
- Contrast, Color and Brightness
- Digital signal w/ no interference guaranteed
- RCA/8-pin connector cable
- Monitor Dimensions
- Without Antenna: 4 7/8" x 9 7/16" x 1 1/4"
- With Antenna: 4 7/8" x 6 7/16" x 1 1/4"
-
Wireless Digital Camera
- Sony 1/3" CCD image sensor back up camera
- 2.4GHz Digital FHSS hopping and pairing technology
- Resolution: 510 x 492 pixels
- NTSC or PAL video capable
- 120 degree wide viewing angle camera
- IR Infrared with 12 LEDs for Night Vision and up to 45 ft distance
- Audio Function
- Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
- Power Supply: DC 12V - 24V
- Waterproof Rating: Ip69k
- Shell Material Aluminum Alloy
-
Camera Dimensions
- Without antenna: 4-1/4 inches (W) x 2-3/4 inches (H) x 2-3/4 inches (D)
- With antenna: 4-1/4 inches (W) x 8 inches (H) x 2-3/4 inches (D)
Note: This item is intended to be used as a back up camera, if you are intending on using this item as a continuously on monitoring system vehicle speed cannot exceed 35 MPH as the system will stop working.
Manufacturer | Accelevision |
---|---|
Part Number | TOP-SS-501W2 |
LCD Screen Size | 5 inch - 6 inch |
Native Screen Resolution | 800 x 480 |
Widescreen Display | 16:9 Widescreen Display |
LCD Screen Brightness | 350 Nit |
LCD back light type | LED |
Trigger wire | Yes |
Modulation | NTSC and PAL |
Built in Speakers | Yes |
Mount included | Yes, Pedistal stand |
Auto on/off | Yes |
Wireless Remote Control | Yes |
Monitor Type | Stand alone monitor |
Back up camera type | Surface Mount Camera |
Camera diameter | 1/3 |
Viewing Angle | 120 degrees |
Infrared Illumination | Yes |
Connector Type | RCA Cable |
Wireless Transmission | Wireless connection |
Color | Black |
Warranty | 1 Year |
Return period | 30 days |
Exchange period | 30 days |
