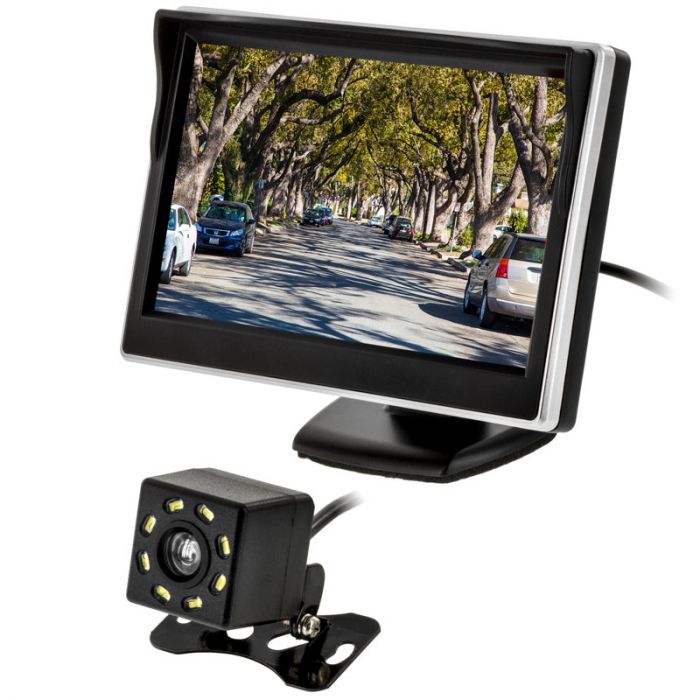

Safesight TOP-SS-C472 Back up camera system with 5 inch LCD and Surface mount camera
$48.99
In stock
Only 2 left
SKU
TOP-SS-C472
Expert Knowledge
Talk to a specialist
- Universal back up camera system with 5 inch LCD display and surface mount back up camera
- 5 inch universal top of dash mount LCD monitor
- Surface mount back up camera with (8) super bright LED's
- 120° wide angle view
- Parking grid lines - visual reference to objects
Unit includes: 5" LCD Monitor, (2) DC power jack, Surface mount camera, 18 foot RCA cable, Mounting screws, and Instruction manual
Safesight TOP-SS-C472 Back up camera system with 5 inch LCD and Surface mount camera
Safesight TOP-SS-C472 Back up camera system with 5 inch LCD and Surface mount camera
- System Features:
- Universal back up camera system with 5 inch LCD display and surface mount back up camera
- 5 inch universal top of dash mount LCD monitor
- Surface mount back up camera with (8) super bright LED's
- LCD monitor features:
- 5 inch LCD TFT LCD monitor
- 2 video inputs with video sense trigger
- 180 degree swivel mount for better mounting on dash or on windshield
- 300 NIT brightness
- OSD - on screen display for adjustments
- Rear mounted buttons for monitor control
- Resolution: 800 x 480
- Screen dimensions: 5"(W) x 3-1/4" (H) x 3/4" (D)
- Dimension with stand: 5" (W) x 3-3/4" (H) x 1-3/4" (D)
- Camera features:
- High sensitive PC7070 1/4" CMOS Image sensor
- 520 TVL Horizontal Resolution
- Camera has swivel for adjusting the vertical point of view
- Built in LED's to illuminate reverse area along with reverse lights
- Sensitivity: 0.1 Lux at F2.0
- Excellent Auto White Balance
- Waterproof (IP67)
- Parking grid lines - visual reference to objects
- Current Consumption: 150mA
- Viewing Angle: 120° wide angle view
- Effective pixels: 628 x 586
- Power source: DC12V +/- 10%
- Operating Temp: -20° C - 70° C
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-C472 |
| LCD Screen Size | 5 inch - 6 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 300 Nit |
| LCD back light type | LED |
| Auto Dimming | No Dimming |
| Trigger wire | Auto video sense trigger |
| Modulation | NTSC and PAL |
| Slide track on back | No |
| Image Flip Function | Image rotate |
| Built in Speakers | No |
| Mount included | Yes, Pedistal stand |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | No |
| Audio Video inputs | 2 Video Inputs |
| Wireless Remote Control | No |
| Monitor Type | Stand alone monitor |
| Back up camera type | Surface Mount Camera |
| Homelink | No Homelink transmitter |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Yes - Reverse Image |
| Camera Sensor type | CMOS |
| Camera diameter | 1/4" |
| Viewing Angle | 120 degrees |
| Parking grid lines | Yes |
| Built in Microphone | No |
| Infrared Illumination | LED Illumination |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Battery Powered | Hard wired |
| Connector Type | RCA Cable |
| Wireless Transmission | Wired connection |
| Color | Black |
| Operation Voltage | 12-15 Volt DC |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
