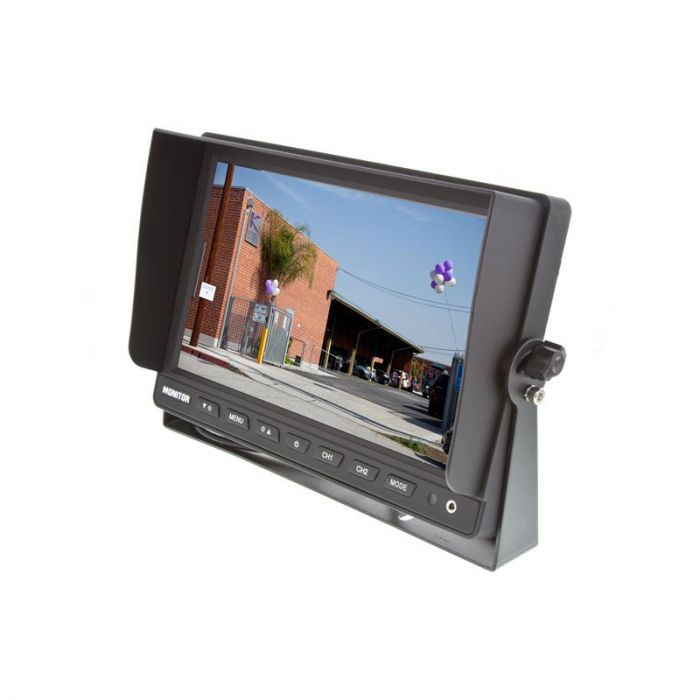

SafeSight TOP-SS-D1004 10" Commerial Back up camera monitor with sun shade - 2 Video inputs
SafeSight TOP-SS-D1004 10" Commerial Back up camera monitor with sun shade - 2 Video inputs
Key Features
10 inch TFT LCD High Definition display 2 - RCA Video Inputs with one triggered for input, for use with multiple cameras and side cameras 1 - 3.5mm front mount audio video input Heavy Duty Bracket Integrated sun shield
Unit includes: LCD screen, Wiring harness, Video cable, Remote control, Pedestal stand, and Instruction manual
SafeSight TOP-D1001 10" Back up camera Monitor - 2 Video inputs features:
10 inch TFT LCD High Definition display
Integrated Sun shade to prevent direct sun light glare and to enhance picture quality
Commercial grade metal U-Bracket with adjustable thumb screws for angle adjustment
Backlit blue buttons for easy controls
2 - RCA Video Inputs with one triggered for input, for use with multiple cameras and side cameras
1 - RCA Stereo audio inputs
Built in speakers
1 - 3.5mm front mount audio video input
PAL/NTSC auto switching
Image flip function so that monitor can be mounted in many different ways and image can be rotated to proper viewing
Resolution: 1024 x 600
Brightness: 300 NIT
Power Supply: DC 12-24V
Heavy Duty Reversing system that is designed for commercial applications
OSD Menu (On Screen Display)
Contrast, Color and Brightness
View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees
Dimensions: 10-1/4" (W) x 7-1/2" (H) x 2-3/4" (D)
More Information
Manufacturer
Safesight
Part Number
TOP-SS-D1004
LCD Screen Size
9 inch - 10 inch
Native Screen Resolution
1024 x 600
Widescreen Display
16:9 Widescreen Display
LCD back light type
LED
LCD Screen Brightness
300 Nit
Swivel Screen
Yes
Touchscreen
No
Modulation
NTSC and PAL
Built-in DVD Player
No
Anti-Shock
Yes
Headphone Transmitter
No
Headphone Jack
No
Built in FM Modulator
No
Built in Speakers
Yes
HDMI input
No
VGA input
No - VGA input
Audio Video inputs
3 Video Inputs
Composite video input
Yes
Front mounted auxiliary input
3.5 mm audio/video input
USB input
No
SD Card input
No
Housing material
Plastic
Slide track on back
Yes
Mounting thread for stand mount
Yes
Mount included
Yes, Pedistal stand
Trigger wire
Yes
Image Flip Function
Image rotate
Quad Screen
No
Cigarette Lighter Cord Included
No
Operation Voltage
12-24 Volt DC
Ac Adapter included
No
Headrest Shroud included
No
Wireless Remote Control
Yes
Monitor Color
Black
Color
Black
Warranty
1 Year
Return period
30 days
Exchange period
30 days
