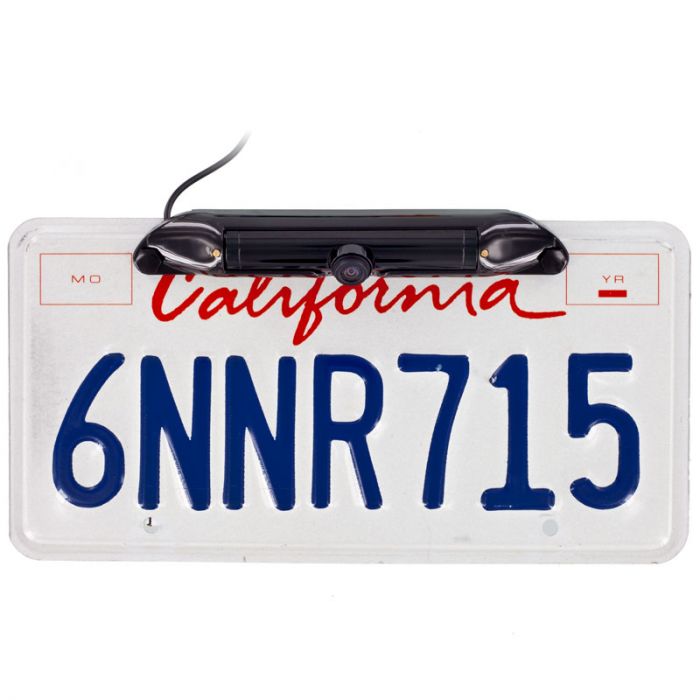

Safesight TOP-SS-L4205B CCD License Plate Mount Bar Type Back Up Camera - Black
$96.99
In stock
SKU
TOP-SS-L4205B
Expert Knowledge
Talk to a specialist
- Highly sensitive 1/3" Color CCD
- 420 TV Lines Horizontal Resolution
- Remarkable low Lux performance of 0.3 Lux at F2.0
- Waterproof(IP67) Reverse Image
- 170ยบ wide viewing angle
- Adjustable up/down picture adjustment with sets screws
Unit includes: License plate camera, RCA Cables and Mounting hardware
Safesight TOP-SS-L4205B CCD License Plate Mount Bar Type Back Up Camera features:
Safesight TOP-SS-L4205B CCD License Plate Mount Bar Type Back Up Camera features:
- Highly sensitive 1/3" Color CCD
- 420 TV Lines Horizontal Resolution
- Remarkable low Lux performance of 0.3 Lux at F2.0
- Waterproof(IP67) Reverse Image
- 170ยบ wide viewing angle
- Adjustable up/down picture adjustment with sets screws
- Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
- Beautiful design & anti-scratch coating plastic housing
- Camera is switchable for front or rear view use
- Dimensions: 7-1/2" (W) x 1" (H) x 1" (D)
- Imager: 1/3" DSP Color CCD
- Effective Pixels: NTSC - 510 (H) X 492 (V)
- Horizontal resolution: 420 TV Lines
- Total number of pixels: 250,920
- Min. Illumination: 0.1 Lux at F2.0
- Synchronizing system: Internal
- Scanning system: 2:1 Interlaced
- Video output: 1Vp-p 75 ohm composite
- S/N Ratio: More than 48dB
- Electronic iris: 1/50 to 1/1000 sec
- White balance: Auto 2100'K - 9100'K
- Lens mount: 2.8mm Pinhole lens
- Operating Temp: -4ยฐ F~122ยฐ F ( -20ยฐ C~ + 50ยฐ C )
- Storage Temp: -40ยฐ F~176ยฐ F ( -40ยฐ C~ + 80,2011,ยฐ C )
- Input: 9 - 15 Vdc, 150mA
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-L4205B |
| Camera Sensor type | CCD |
| Back up camera type | License Plate Camera |
| License Plate Camera Type | Bar style |
| Camera diameter | 1/3 inch |
| Viewing Angle | 170 degrees |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Selectable |
| Parking grid lines | No |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12-15 Volt DC |
| Battery Powered | Hard wired |
| Color | Black |
| Warranty | 90 days |
| Return period | 30 days |
| Exchange period | 30 days |
