Safesight TOP-SS-D7004Q 7 Inch LCD Monitor with Quad screen - (4) Pin Audio / Video inputs

Safesight TOP-SS-D7004Q 7 Inch LCD Monitor with Quad screen - (4) Pin Audio / Video inputs

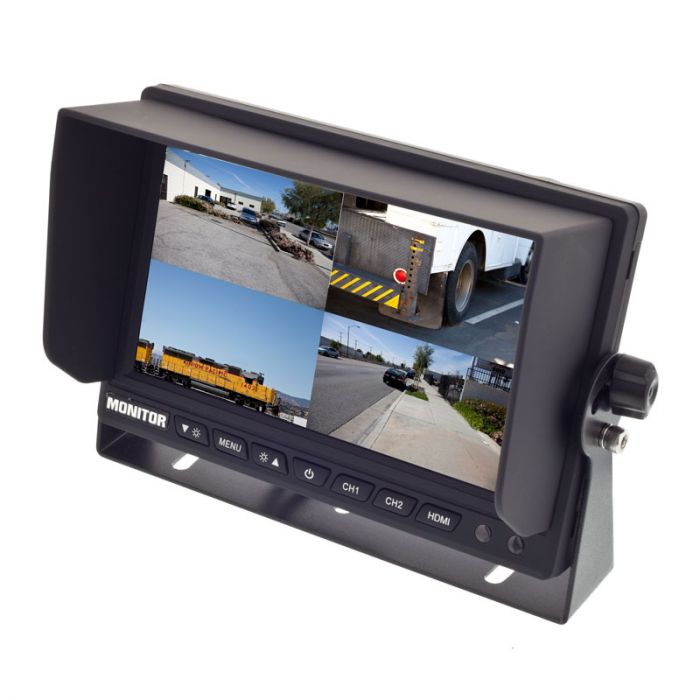

Safesight TOP-SS-D7004Q 7 Inch Quad Screen LCD Monitor - With sun shade installed

More Views

Ships Free!

Overall Rating 2.8 (Based on 1 reviews)

Safesight TOP-SS-D7004Q Product Highlights

  • 7" Diagonal LCD monitor
  • Quad proccessor
  • 4 - 4 pin Audio / Video inputs
  • 4 - Triggered inputs
  • Resolution 800 x 480 RGB
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: 7 inch LCD monitor, Video input and power harness, Mounting stand, Sun visor, Allen key, and Remote Control

Safesight TOP-SS-D7004Q 7 Inch LCD Monitor with Quad screen - (4) Pin Audio / Video inputs features:
  • 7" Diagonal LCD monitor
  • Built in quad screen processor
  • Individual trigger wireds for each video input. (Back), (Left-side), (Right-side), (Front or Top-side)
  • 4 - Composite Audio / Video inputs - 4 pin connectors. Can be converted to RCA cables with adapters (Sold separately)
  • Can be used with cameras that have microphones
  • PAL and NTSC auto switching
  • Image rotation feature that allows you to mount the monitor in any direction and flip the image.
  • High strength commercial grade U-bracket mount for use in rugged applications
  • Removable sun shade for use in high glare situations
  • New low-power draw LED backlight
  • Blue back-lit soft touch buttons
  • Brightness: 300 NIT
  • Voltage: 12Vdc - 24Vdc
  • Built in speaker with volume control
  • Power consumption: 700mA @ 12Vdc
  • Resolution 800 x 480 RGB
  • Resolution 800 x 480 RGB
  • Dimensions without sun visor: 8-1/4" (W) x 5-1/2" (H) x 3/4" (D)
  • Dimensions with sun visor: 8-1/4" (W) x 5-1/2" (H) x 2-3/4" (D)

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-D7004Q
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 4 Audio Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Phone Mirroring N/A
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen Yes
Cigarette Lighter Cord Included No
Operation Voltage 12 - 24 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No

Customer Reviews

Quad settings affects ALL cameras, so one of side camera views is always upside down/backward.
Review by
Install (5 star for easy)
Display settings affects ALL cameras, so at least one camera in quad view is upside down/backward. No manual. (Posted on 7/28/2014)

Write Your Own Review

You're reviewing: Safesight TOP-SS-D7004Q 7 Inch LCD Monitor with Quad screen - (4) Pin Audio / Video inputs

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Have a question? Go ahead and ask anything. We are here to help.

Please login to ask a product question

Ships Free!
Your Price: $159.99
$0.00 Tax Outside CA
Item sku:TOP-SS-D7004Q
Availability:In stock
Free shipping on all orders over $50!
  - Shipping options
    Quantity Discounts
  • Buy 2 for $155.99 each and save 3%
  • Buy 4 for $149.99 each and save 7%
  • Buy 6 for $144.99 each and save 10%
  • Buy 10 for $139.99 each and save 13%
