Safesight TOP-SS-WDB20T200 1/3" 2.4 Megapixel 1080p HD-IP Sony Dome CCTV camera - 12VDC

Safesight TOP-SS-WDB20T200 1/3" 2.4 Megapixel 1080p HD-IP Sony Dome CCTV camera - 12VDC

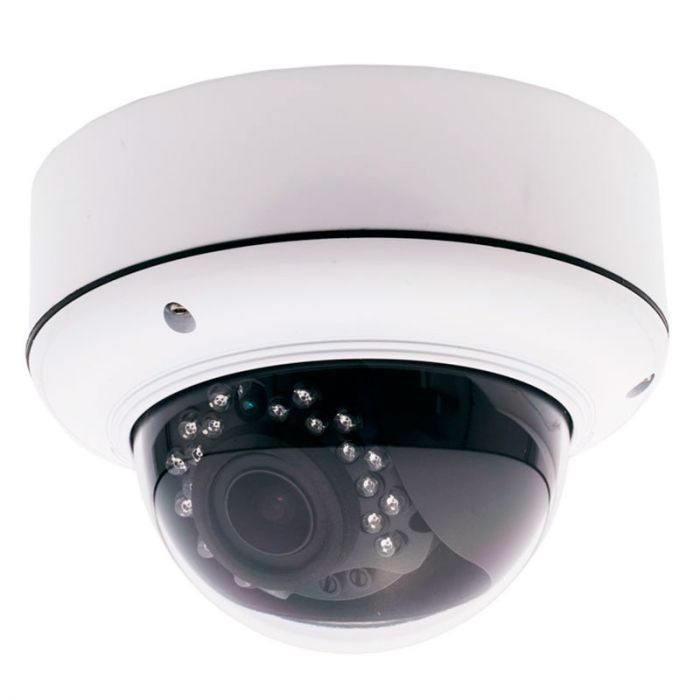

Safesight TOP-SS-WDB20T200 1080p HD-IP Dome Security camera - Front right view of camera

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-SS-WDB20T200 Product Highlights

  • Dome camera
  • 1/3" 2.4 Megapixel Sony CMOS image sensor
  • Progressive scan 1080p output
  • 2.8-12mm Variofocal manual zoom lens with external adjustments
  • HD-IP RJ-45 (10/100Base-T) output
  • Outdoor Aluminum Vandal-resistant housing
  • 21 Infrared LED lighting with 60 foot range
  • Brilliant white housing
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: HD-IP Dome Camera, Mounting hardware, Wall anchors, and Instruction manual

HD-IP is the future of digital security cameras. This 2.4 megapixel HD-IP Outdoor Dome Camera features a progressive scan Sony CMOS image sensor and delivers up to 1920 x 1080 (1080p) full HD resolution at 30 fps (frames per second). The DM368 Texas Instruments Da Vinci processor insures that images are sharp, detailed and incredibly lifelike. With integrated night-vision infrared LED's this camera can see in complete darkness with a maximum range of 60 feet. Now you can protect even the darkest of areas.

Three reasons to consider HD-IP:

1080p HD resolution

HD-IP cameras offer image quality that is generally superior to traditional analog cameras. IP cameras are completely digital and usually provide up to 25% better image detail. HD-IP is a cost-effective video surveillance solution that's easy to install and integrate and utilizes standard networking cables making it very easy to run cables.

Future proof

HD-IP utilizes ethernet cables and run on the principles of computers making them more capable by providing live views to smartphones and laptop computers. These systems can be used for non-security applications to analize work flows, customer service and deliveries. All the data transmissions offer encrypted data ensuring privacy and can be viewed anywhere in the world!

Save money

With limited budgets, HD-IP systems provide a cost effective solution. A HD-IP system allows you to utilize existing and inexpensive cables that cut down on installation times.

Safesight TOP-SS-WDB20T200 1/3" 2.4 Megapixel 1080p HD-IP Sony Dome CCTV camera - 12VDC features:

  • White Vandal resistant dome aluminum housing
  • Brilliant white to match any interior or exterior color
  • 1/3" 2.4 Megapixel Sony CMOS image sensor
  • Progressive scan 1080p output
  • 1920 x 1080 (1080p) full HD resolution @ 30 fps
  • HD-IP RJ-45 (10/100Base-T) output
  • 2.8-12mm Variofocal manual zoom and manual focus lens with external adjustments
  • 3-Axis Camera swivels 360 within housing
  • 21 Infrared LED lighting with 60 foot range
  • Built-in Digital Noise Reduction to eliminate noise from your video with three settings: Low / Medium / High
  • IP66 weather rated
  • Built-in Automatic Gain Control for additional low and high light level picture quality
  • HD-IP cameras require HD-IP DVRs
  • IP protocols: IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
  • Support ONVIF 2.0
  • Supports P2P with included QR code
  • Supports POE with IEEE 802.3af
  • Supports connections to Internet Explorer 6 -11 and iPhone, iPad, Android

On Screen controls for:
  • Fixed or auto iris control
  • Manual or auto shutter
  • Light flicker correction - Used in situations with fluorescent lighting
  • Night sensitivity
  • Automatic gain control
  • HLC control block certain areas of high brightness and add brightness to surrounding areas
  • Back-light adjustment to compensate for areas of high brightness
  • WDR - allows adjustment of areas of low brightness can be seen while viewing areas of high brightness
  • White balance - Auto / Preset / Manual
  • DNR - Low / Middle / High
  • Image sharpness
  • Image gamma
  • Color gain
  • Mirror image - Flip images horizontally
  • Flip image - Flip images vertically
  • Digital zoom
  • Adaptive color enhancement
  • Lens shading
  • Privacy area - Block seeing through neighbors windows

  • Dimensions: 5-5/8" Diameter x 4-1/2" Height

Digital Noise Reduction (DNR) eliminates noise that is created in the image by applying a digital comb filter. In low light levels, the camera compensates for a lack of light by slowing the shutter speed and opening the iris to allow more light. The camera also applies additional gain to increase the light level, this process causes noise, DNR compensates for this and increases picture quality.

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-WDB20T200
Max DVR Channels No
DVR HDD Capacity No
Length 1.5 Feet
Wireless Transmission Wired connection
Infrared Illumination Yes
Built in Microphone No
Included cameras No
Imager Manufacturer Sony
Camera Sensor type CMOS
Sensor Size 1/3 inch
Camera sensor diameter No
Lines of Resolution 1080p
Minimum Illumination .01 Lux
Color Camera Yes
Viewing Angle 120 degrees
IR LED Count 20
Infra-Red Wavelength 850nm
Zoom No
Gain Control Yes
Dynamic Range (dB) More than 50db
Focus Manual
AGC (Automatic Gain Control) Built In
IR range (ft) 50ft to 60ft
OSD (On Screen Display) Yes
Modulation NTSC and PAL
Lens Included Yes
Lens Type Manual Zoom
Electronic Shutter Auto
Relative Aperture (F-stop) 1.2
Focal Length (mm) 2.8 - 12mm
Color White
Housing material Metal - Vandalproof
Vandal-proof Yes
Outdoor Yes
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Battery Powered Hard wired
Ac Adapter included No
Operation Voltage 12 - 15 Volt DC
Power consumption Amps 1000
Connector Type RJ45 Connector
Signal type IP-Based
Warranty 1 Year
UPC Code No
