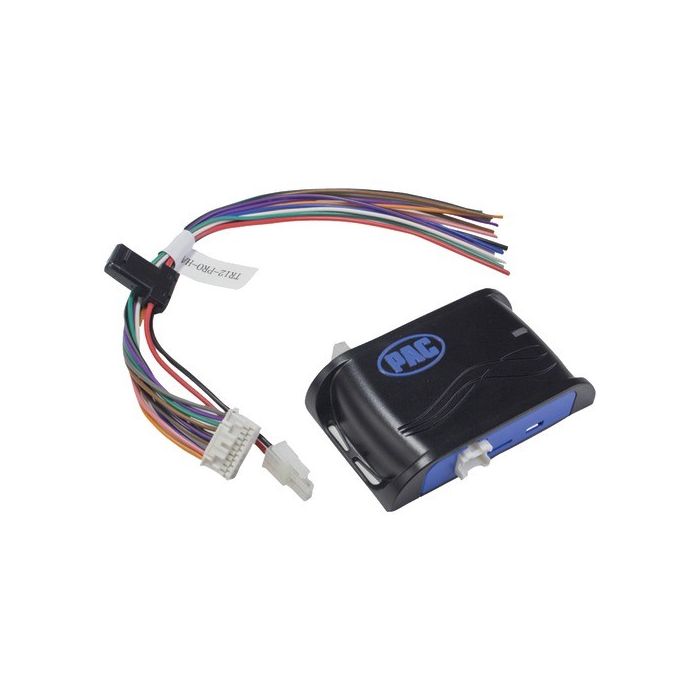

PAC TR-12 8-Input Smart Trigger and Latching Output Module

$64.99
Out of stock
SKU
TR-12

Key Features

  • 8 fully programmable inputs
  • 4 fully programmable outputs
  • Programmable via computer to create and endless possibilities of things to control via any type of input
  • Independent options for pulse, constant, latching and un-latching inputs and outputs
Unit Includes: Trigger module

PAC TR-12 8 Input Smart Trigger and Latching Output Module
    Features:
  • The TR12 is a universal trigger output module that can be easily configured by a PC. There are numerous possibilities due to 4 separate inputs (8 wires total, 1 positive and 1 negative for each input) and 4 separate outputs.
  • Inputs can be set to trigger from a certain number of pulses (positive or negative), a selectable trigger voltage (from .20 volts to 14 volts in .20 volt increments) or from a latched and pulsed input.
  • (4) - outputs can be programmed via computer for pulsed, latched or timed 12v or ground and have a current rating of 3A each.
  • Pre-Programmed presets for Pioneer, Clarion and Alpine head units
  • Separate input and output configurations are possible
    Inputs and Outputs:
  • 4 - Positive input triggers
  • 4 - Positive or negative input triggers
  • 4 - Outputs (3 amps max each)
    Common uses:
  • Low voltage trigger - Supplies a 12 volt remote output for an aftermarket amplifier when used with a stock head unit that does not have a remote output. Use the TR-7 to supply a 12 volt output from a 5 volt remote source, like from Ford radios.
  • Toggled On/Off Outputs - Turn on neon lights or other accessories from an alarm with a momentary output or from a momentary switch.
  • Amp Turn On Delay - Upon a constant trigger, the TR12 will delay the turn on for the user programmed amount of time.
  • Double pulse output - Pulses outputs twice when trigger from a constant or pulsed signal.
  • Reverse Camera Delay - Allows the reverse camera image to be displayed on the radio for a pre-determined amount of time after the gear has been shifted out of reverse.
  • Horn honking output - Using the 12v siren output from an aftermarket alarm, set the timing for the horn honk to where it sounds the best.
  • Linear actuator controller - Open/close amplifier racks from a sigle or multiple trigger. This setting also has limit switch triggers in cases where the actuator motor does not. Requires additional relays and are not included.
  • Door lock pulse generator - Good for automatically locking and unlocking door locks when ignition is turned on and off.
  • Channel splitter - Split 1 channel from an alarm to two outputs. Both outputs are user programmable for pulse, latched or timed output.
  • Four Timers in One - Upon a trigger, all four outputs are user programmable to delay before turning on outputs or turning on instantly then delay before turning off outputs. Good for situations where you need more than one timer but on a different timer period, without having multiple modules.
    Programming options:
  • 8 - Input settings (Disabled, Constant, or pulsed) / (Minimum and maximum voltage to trigger)
  • 4 - Output settings (Disabled, Pulsed, Latched, Un-latched, Toggle, Delay, Actuator) / (Positive or Negative polarity) / (Normal state) / (Assignable Input trigger) / (Delay configuration) / (Output waveform) / (On/Off time duration)
  • 1 - Power and ground input
More Information
Manufacturer PAC
Part Number TR-12
Warranty 1 Year
California Proposition 65
UPC Code 609098817806
Return period 30 days
Exchange period 30 days
