Beuler 5083PWMR 12 VDC Micro Automotive 5-Pin Relay SPDT 15/30A with mounting tab

Rating:
96 % of 100
$3.29
In stock
SKU
5083PWMR
  • Buy 2 for $3.13 each and save 5%
  • Buy 25 for $3.04 each and save 8%
  • Buy 50 for $2.99 each and save 9%
  • Buy 100 for $2.93 each and save 11%

Key Features

  • Micro relay with 18 inch pre-wired leads
  • perfect for tight fit locations like behind radios or kick panels
  • 15 amp / 30 amp rated contacts
  • SPDT - Single pole dual throw
Unit includes: Micro 12 volt relay

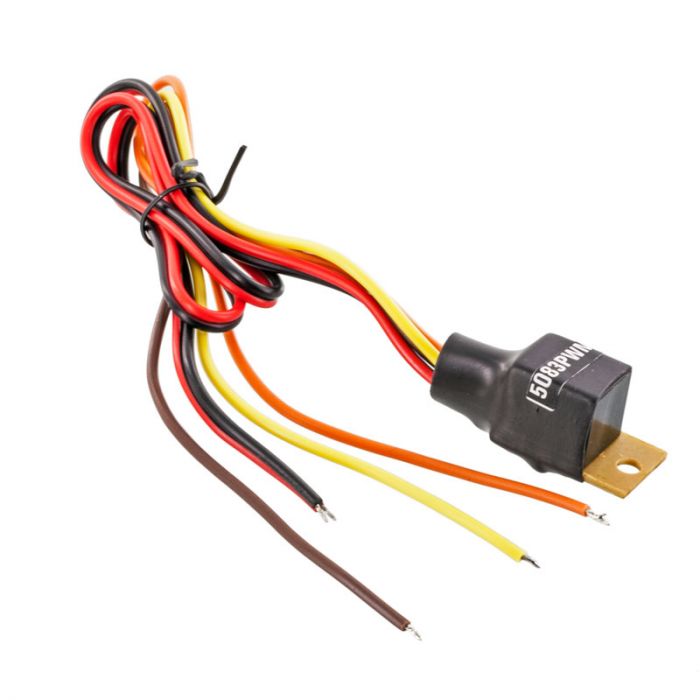

Beuler 5083PWMR 12 VDC Micro Automotive 5-Pin Relay SPDT 15/30A with mounting tab

The Beuler 5083PWMR micro 12 Volt relay is perfect for tight areas behind radios or kick panels. This relay is commonly used in Automotive sound and security installations. It easily switches 15 amps of current and peaks of 30 amps with minimal draw on the coil of 35 milliamps @ 12Vdc. It features a mounting tab and is incredible small. Single Pole, Dual throw for flexible installations and multiple uses such as amplifier turn on or door lock actuation.

    Features:
  • Micro relay with 18 inch pre-wired leads
  • perfect for tight fit locations like behind radios or kick panels
  • 15 amp / 30 amp rated contacts
  • SPDT - Single pole dual throw
  • 12 Vdc rated coil with minimum 8 volt to trigger
  • 390 Ohm Coil
  • Power consumption @ 12Vdc 35 mA
  • Dimensions 3/4" (w) x 1" (D) x 2" (H) with terminals and tab
    Wiring Colors:
  • Red - Positive 12 volts for the coil
  • Black - Ground for the coil
  • Orange and Yellow are Normally closed contacts
  • Yellow and Brown are Normally open contacts
More Information
Manufacturer Beuler
Part Number 5083PWMR
Operation Voltage 8-15 Volt DC
Coil resistance 390.00 Ohms
Relay type Full size 5 Pin relay
Current capacity 15 Amp
Pole switching type SPDT (Single pole Dual throw)
Tab type Plastic Tab
Waterproof ingress protection None
Warranty 1 Year
California Proposition 65
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Beuler 5083PWMR 12 VDC Micro Automotive 5-Pin Relay SPDT 15/30A with mounting tab
Your Rating

Relay Pinout Diagrams Explained

A relay pinout diagram shows the function of each terminal (pin) on a relay and how the internal connections work. It helps you wire the relay correctly for your project.

1. Basic Relay Anatomy

Most automotive relays have two main parts:

  • Coil – An electromagnet that switches the relay on/off (low current side)
  • Switch Contacts – The high-current switch that turns your accessory on/off

2. Most Common Automotive Relay: 5-Pin SPDT

This is the standard relay type used with sockets like BRSCN, BRSPC, BRSS, etc.

Pin Name Function
30 Common Power input (goes to the load)
87 Normally Open (NO) Closed when relay is energized (ON)
87a Normally Closed (NC) Closed when relay is de-energized (OFF)
85 Coil Ground Negative side of coil
86 Coil Positive Positive side of coil (+12V trigger)

Visual Pinout Diagram

          87
          │
   87a ───┼─── 30
          │
         [Relay]

   85 ───────── 86


How It Works:

  • No power to 85/86 → Current flows between 30 and 87a
  • +12V applied to 85/86 → Coil energizes → Current flows between 30 and 87

4. How to Read a Relay Pinout Diagram

Most relay pinout diagrams include the following elements:

  • A box or outline representing the relay body
  • Pin numbers clearly labeled next to each terminal
  • Internal connections shown with lines or dotted lines
  • Coil symbol (usually a rectangle or spring-like coil)
  • Switch contacts shown with an arrow indicating movement when the relay is energized

Example Relay Pinout Diagram:

       87          30
        │           │
        └──────┬────┘
               │
             ┌──┐     ← Moving Contact
             └──┘
            /     \
          87a      (Switches when coil is energized)

    85 ───────────── 86
          Coil


Understanding the Symbols:

  • 30 — Common terminal (input power)
  • 87 — Normally Open (NO) contact
  • 87a — Normally Closed (NC) contact
  • 85 & 86 — Coil terminals (control side)

When the relay coil is energized (pins 85/86 powered), the internal switch moves from 87a to 87.

Quick Wiring Examples (5-Pin Relay)

1. Basic On/Off Circuit (Most Common)

Used for lights, fans, fuel pumps, horns, etc.

  • 86 → Switched +12V (from switch, toggle, or ECU output)
  • 85 → Ground (or switched ground)
  • 30 → Constant +12V Power (from battery or fuse box)
  • 87 → Output to Accessory (lights, fan, etc.)
  • 87a → Not used (leave disconnected)

2. Changeover / Dual Circuit Setup

Use both 87 and 87a when you need to switch between two different circuits.

  • 30 → Input Power
  • 87 → Circuit A (ON when relay is energized)
  • 87a → Circuit B (ON when relay is OFF)
  • 85 & 86 → Coil control

3. Typical Pin Connections Summary

Pin Connection Typical Wire Color Purpose
30 Constant +12V Black (BRS14E & BRS12E) Power Input
87 To Accessory Green (BRS14E & BRS12E) Power Output (ON)
87a Optional 2nd Circuit Blue (BRS14E & BRS12E) Power Output (OFF)
85 Ground White (BRS14E & BRS12E) Coil Negative
86 Switched +12V Red (BRS14E & BRS12E) Coil Positive

Tip: Always use a fused power source on pin 30 for safety.

Basic 5-Pin Relay Wiring Harness

Battery +12V ──► [Fuse] ──► Pin 30 (Common)

Pin 87 ──► Accessory (Lights / Fan / Pump / Amp etc.)

Pin 86 ──► Switched +12V Trigger
               (from switch, headlight wire, remote turn-on, etc.)

Pin 85 ──► Ground

Pin 87a ──► (Optional - Not used in basic setup)


Recommended Wiring (Empty relay socket or spade connectors (Not BRS14E & BRS12E):

  • Pin 30 — Red wire with inline fuse (closest to battery)
  • Pin 87 — Red or Blue wire to device
  • Pin 86 — White or Pink trigger wire
  • Pin 85 — Black ground wire

Dual Output (Changeover) Relay Harness

Pin 30   → Constant +12V (Fused)

Pin 87   → Circuit A (ON when relay activated)
Pin 87a  → Circuit B (ON when relay is off)

Pin 86   → Trigger +12V
Pin 85   → Ground
