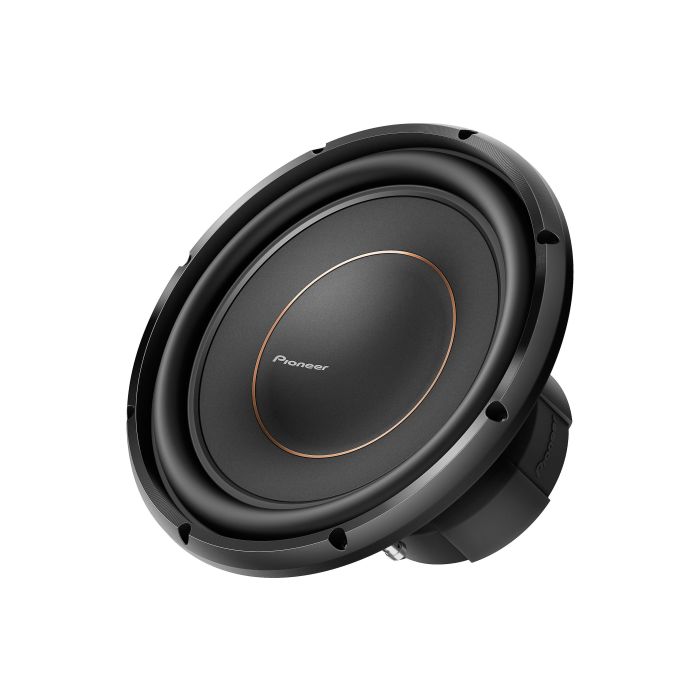

Pioneer TS-D12D4 12" subwoofer with dual 4-ohm voice coils
$179.99
In stock
SKU
TS-D12D4
Expert Knowledge
Talk to a specialist
- 12" Subwoofer with dual 4 Ohm voice-coils
- Aramid Fiber Interlaced Injection Molded Polypropylene cone woofer
- Butyl Rubber Surround for Strength and Linearity During High Excursion
- Oversized 74.1 oz Double Stacked Magnet and Vented Pole Yoke
Inside the box:
- 12 inch subwoofer driver
- Trim ring
- Six 1-1/8" Screws
- Instruction manual
- Adhesive backed foam gasket
-
Features:
- 12" Subwoofer with dual 4 Ohm voice-coils
- Aramid Fiber Interlaced Injection Molded Polypropylene cone woofer which adds rigidity and accurate response
- Butyl Rubber Surround for Strength and Linearity During High Excursion
- Oversized 74.1 oz Double Stacked Magnet and Vented Pole Yoke for Increased Power Handling
- Oversized 4-layer voice coil
- Stamped metal basket
- Sold individually
- Power Handling Max:
- 2000 Watt maximum power handling
- Power Handling RMS:
- 600 Watt nominal continuous power handling RMS
- Quick Specs:
- Impedance: 4 Ohm per coil
- Frequency response: 20 Hz - 4700 Hz
- Sensitivity: 78 dB @ 1Watt / 1meter
- Dimensions:
- Mounting depth: 6-1/8 inches
- Cut-out diameter: 11-1/8 inches
| Manufacturer | Pioneer |
|---|---|
| Part Number | TS-D12D4 |
| Driver Size | 12 inch |
| Subwoofer Shape | Round |
| Voice coils | Dual voice coil |
| Impedance (per voice coil) | 4 ohm |
| FS | 34 |
| QES | 0.74 |
| QMS | 9.75 |
| QTS | 0.69 |
| RE | 3.3 |
| VAS | 47.9 L |
| Xmax (millimeters) | 13.0 |
| Sensitivity | 78 dB |
| Frequency Response | 20 Hz - 4.7 KHz |
| Sub enclosure type | Banpass, Ported / Vented, Sealed |
| Power Handling RMS | 501 - 750 Watts |
| Power Handling Peak | 2000 Watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | $3.13 |
| Cutout Dimensions | $11.13 |
| Sealed Enclosure Recommended Size | 1.0 ft3 |
| Ported Enclosure Recommended Size | 1.0 ft3 |
| Color | Black |
| Warranty | 1 Year |
| Sold as | Individually |
| UPC Code | 884938374408 |
| Return period | 30 days |
| Exchange period | 30 days |
