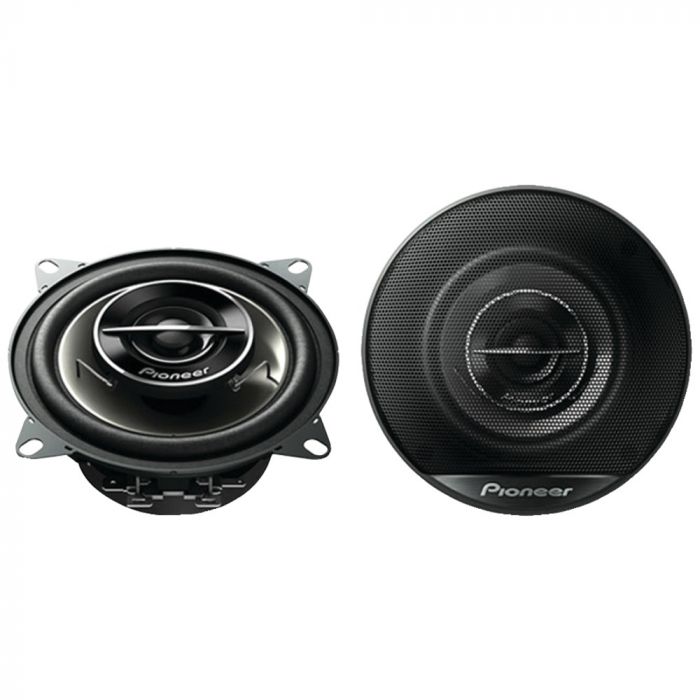

DISCONTINUED - Pioneer TS-G1044R 4" 200-Watt 2-Way Speakers
More Views
Pioneer
Free Shipping on orders $50+
Pioneer TS-G1044R Product Highlights
- 2-Way design with separate tweeter and woofer
- 30W nominal power handling
- 1-3/16" balanced dome tweeter with ferrite magnet reproduces high performance high frequencies
- 1-3/4" Shallow mounting depth for better vehicle compatibility
Frequently Bought Together
Overview
Unit includes: Two coaxial speakers, Mounting hardware, and Instruction manual
Pioneer TS-G1044R 4" 200-Watt 2-Way Speakers
Pioneer TS-G1044R 4" 200-Watt 2-Way Speakers
- 2-Way design with separate tweeter and woofer
- 200W maximum input power
- 30W nominal power handling
- IMPP composite cone woofer which makes it extremely light and fast for improved sensitivity and reduced distortion
- Conex damper for increased power handling and deeper bass
- 1-3/16" balanced dome tweeter with ferrite magnet reproduces high performance high frequencies
- 1-3/4" Shallow mounting depth for better vehicle compatibility
Technical Specifications
| Manufacturer | Pioneer |
|---|---|
| Part Number | TS-G1044R |
| Speaker Size | No |
| Speaker system type | 2 - way Coaxial |
| Frequency Response | 45 - 27,000 Hz |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| Power Handling RMS | 30 Watts |
| Power Handling Peak | 200 Watts |
| Sensitivity | 88 dB |
| FS | No |
| QES | No |
| QMS | No |
| QTS | No |
| RE | No |
| VAS | No |
| Xmax (millimeters) | No |
| Cutout Dimensions | 0inches |
| Mounting Depth | 1.75 inch |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 884938143455 |
