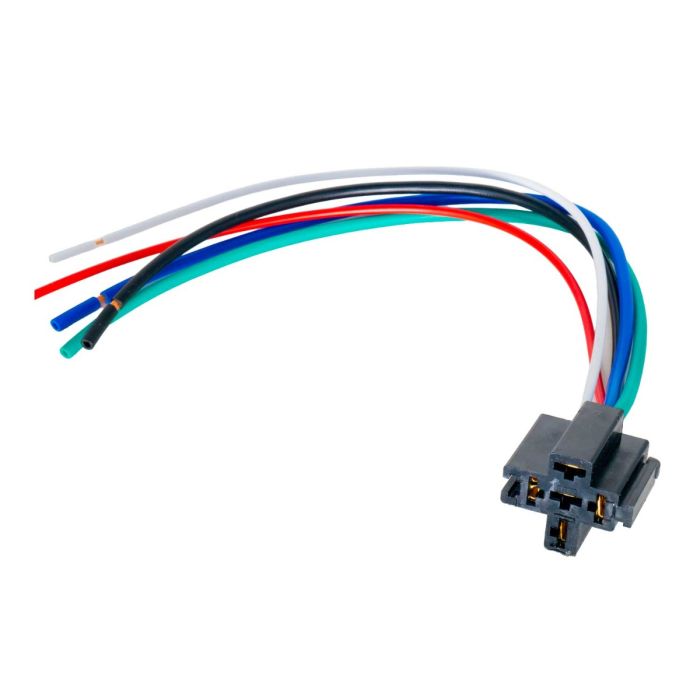

Quality Mobile Video BRS12E 12 VDC Automotive 5-Pin Relay Socket with interlock - 12 Gauge leads
$3.59
In stock
SKU
BRS12E
- Buy 100 for $3.34 each and save 7%
- Buy 200 for $3.27 each and save 9%
- Buy 500 for $3.20 each and save 11%
Expert Knowledge
Talk to a specialist
- Fit all automotive Bosch and TS Connectivity style relays regardless of manufacturer
- Integrated male and female slide tracking allowing you to combine multiple relay sockets for neat installations
- Rated for 40 amp current draw
- SPDT - Single pole dual throw
- 12 gauge 11 inch long wiring leads
Unit includes: 12 volt relay socket
The BRS12E is a premium 5-pin automotive relay socket designed for 12V DC applications, featuring an integrated interlocking system that allows multiple relay sockets to be securely connected for clean, organized installations.
Built for durability and reliability, the BRS12E is ideal for automotive, racing, aviation, and custom electrical projects. Its compact design and rugged construction make installation simple while ensuring long-lasting performance in demanding environments.
The innovative slide-track design enables multiple relay sockets to be joined together, creating a professional, space-efficient wiring setup. Relay replacement is quick and hassle-free, allowing damaged or worn relays to be swapped out without disconnecting multiple wiring connections.
Whether you're a professional installer or a DIY enthusiast, the BRS12E provides a convenient, dependable solution for building and maintaining relay-based electrical systems.
Features:
- Fit all automotive Bosch style relays regardless of manufacturer
- Integrated male and female slide tracking allowing you to combine multiple relay sockets for neat installations
- Rated for 40 amp current draw
- SPDT - Single pole dual throw
- 16 gauge coil wires
- 12 gauge switching wires
- Conventional 87, 87a, 30, 86, and 85 pin locations
- Completely insulated terminals
- 11 inch wiring leads
Dimensions:
- Socket: 1 1/4" (w) x 1 1/16" (D) x 1-1/8" (H)
- 12 gauge 11 inch long wiring leads
Compatibility:
- Beuler BU5035 30/40 Amp 12 Volt Relay
- Beuler BU5083 40/60 Amp 12 Volt Relay
- Beuler BU5083W 40/60 Amp 12 Volt Relay Without Mounting Tab
- Beuler BU5084 40/60 Amp Volt Sealed Relay
- Beuler BU5084W 40/60 Amp 12 Volt (Sealed Relay
- Beuler BU5084M Sealed 40/60 Amp 12 Volt Relay
- Beuler BU5084V24 Waterproof 40/60 Amp 24 Volt Relay
- Beuler BU510TD 12V Time Delay Relay-On
- 1Beuler BU509TD 12V Time Delay Relay-Off
- Pin 30 - (Black wire) Constant Ground or Constant positive (This will be what the relay switches)
- Pin 85 - (Red wire) Coil
- Pin 86 - (White wire) Coil
- Pin 87a - (Blue wire) Normally closed contact
- Pin 87 - (Green wire) Normally open contact
Pin configuration (When using BU509TD Time Delay Relay):
- Pin 30 - (Black wire) - Must have constant or accessory 12 volts all-time, as this is what powers the circuit on the relay
- Pin 85 - (Red wire) - Single pulse (+12 volts) to trigger time delay off (Constant 12 volts can be applied and once +12 volts is removed relay will stay latched for duration of timer.)
- Pin 86 - (White wire) - Ground
- Pin 87a - (Blue wire) - (+12) volt output (Normally closed contact - on except when time delay is active)
- Pin 87 - (Green wire) - (+12) volt output (Normally open contact - on for duration of set time)
Pin configuration (When using BU510TD Time Delay Relay):
- Pin 30 - (Black wire)- Must have constant or accessory 12 volts all-time, as this is what powers the circuit on the relay
- Pin 85 - (Red wire) - Constant (+12 volts) to trigger time delay on (Requires the removal of +12 volts to reset the timer)
- Pin 86 - (White wire) - Ground
- Pin 87a - (Blue wire) - (+12) volt output (Normally closed contact - on except when time delay is active)
- Pin 87 - (Green wire) - (+12) volt output (Normally open contact - on for duration of set time)
| Manufacturer | Beuler |
|---|---|
| Part Number | BRS12E |
| Relay type | Full size 5 Pin relay |
| Tab type | No Tab |
| Warranty | 1 Year |
| California Proposition 65 |  Warning:This product can expose you to chemicals including lead, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Item Returns | This item can be returned |
Write Your Own Review
Relay Sockets – Complete Guide
What is a Relay Socket?
A relay socket (also called a relay base or relay holder) is the plastic base that a relay plugs into. It provides secure electrical connections and makes it easy to install, replace, or service the relay without cutting or soldering wires directly to the relay pins.
Why Use a Relay Socket?
- Makes relay replacement quick and tool-free
- Protects the relay terminals
- Allows for cleaner, more professional wiring
- Easier to add fuses, diodes, or resistors
- Enables modular and expandable designs
Main Types of Relay Sockets
| Type | Size | Pins | Interlocking | Best For |
|---|---|---|---|---|
| Micro Relay Socket | Small | 5 | Yes/No | Tight spaces |
| Full-Size Relay Socket | Standard | 5 | Yes/No | High current, custom builds |
| ISO Relay | Large | 4/5 | Usually No | OEM replacements |
Key Features Explained
- Interlocking (BRSPC, BRS14PT, BRS14E, BRS12E, BRS14MR, BRSCP) – Can be connected together to form neat relay banks
- Non-Interlocking (BRSC, BRSP) – Individual sockets for flexible spacing
- Socket Only vs With Contacts (BRSCN comes with terminals)
- Solder Tab (BRSS) – Best for high-vibration environments
Standard 5-Pin Relay Socket Pinout
- 30 – Power Input (Common)
- 87 – Normally Open Output
- 87a – Normally Closed Output
- 85 – Coil Ground
- 86 – Coil Positive (+12V trigger)
Common Applications
- Custom car audio systems
- Auxiliary lighting (LED bars, fog lights)
- Cooling fans & fuel pumps
- Winches and horns
- Marine and race car electrical systems
Pro Tip: Always use a fuse on Pin 30 and consider dielectric grease for better corrosion protection.
Pro Tips for Using Relay Sockets
- Always use the correct wire gauge — Match wire size to your current load (e.g., 12–14 AWG for 20–30A applications).
- Add a fuse on Pin 30 — This is critical for safety. Place an appropriately rated fuse as close as possible to the power source.
- Use dielectric grease — Apply a small amount on the relay pins and inside the socket to prevent corrosion and improve electrical contact.
- Choose solder tab sockets for high vibration — For race cars, off-road vehicles, or marine use, the BRSS (solder tab version) offers superior vibration resistance.
- Take advantage of interlocking sockets — Models like BRSPC or RS102E allow you to create clean, professional-looking relay banks with minimal space.
- Label your relays and wires — Makes future troubleshooting much easier.
Bonus Tip: When using crimp terminals, always use a quality crimping tool and double-check for solid connections before final installation.
