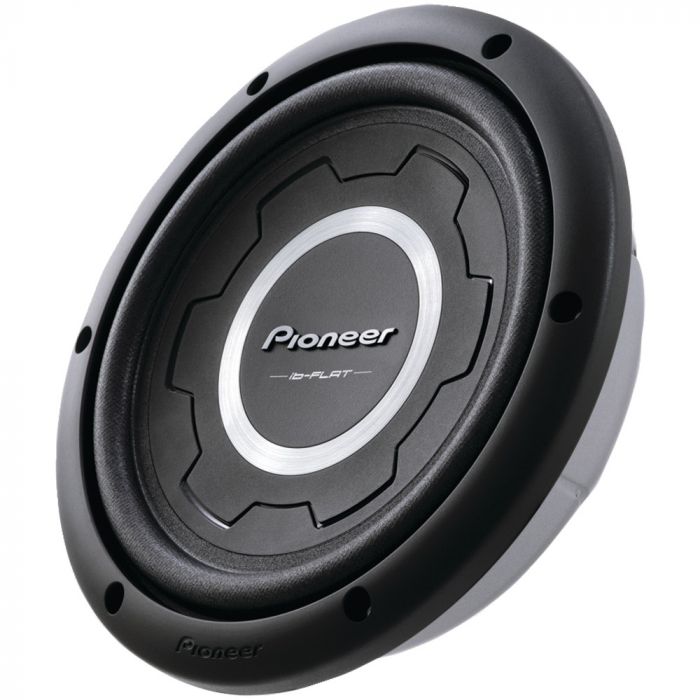

DISCONTINUED - Pioneer TS-SW2501S4 10" Shallow Subwoofer With 1200 Watts Max Power - 4 ohm
$96.99
Out of stock
SKU
TS-SW2501S4
Expert Knowledge
Talk to a specialist
- 10" Subwoofer with single 4 ohm voicecoil
- 300 Watt nominal continuous power handling RMS
- Sensitivity: 90 dB @ 1Watt / 1meter
- Mounting depth: 3"
Unit includes: Shallow mount subwoofer and Instruction manual
Pioneer TS-SW2501S4 10" Shallow Subwoofer With 1200 Watts Max Power
Pioneer TS-SW2501S4 10" Shallow Subwoofer With 1200 Watts Max Power
- 10" Subwoofer with single 4 ohm voicecoil
- 1,200 Watt maximum power handling
- 300 Watt nominal continuous power handling RMS
- 6-layer aluminum voice coil for high temperature and power handling
- Impedance: 4Ω
- Strontium magnet construction
- Cast aluminum basket
- Vented pole piece
- Silver spring compression terminal
- 10" interlaced basalt/carbon fiber reinforced IMPP cone woofer
- 3-layer fiber woven radial surround
- Frequency response: 20 Hz–290 Hz
- Sensitivity: 90 dB @ 1Watt / 1meter
- Mounting depth: 3"
| Manufacturer | Pioneer |
|---|---|
| Part Number | TSSW2501S4 |
| Driver Size | 10 inch |
| Subwoofer Shape | Round |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| Xmax (millimeters) | 5.5 mm |
| Sensitivity | 90dB |
| Frequency Response | 20 - 290 Hz |
| Sub enclosure type | Ported / Vented, Sealed |
| Power Handling Peak | 1200 watts |
| Shallow Mount Subwoofer | Yes |
| Mounting Depth | $3.00 |
| Cutout Dimensions | $9.31 |
| Sealed Enclosure Recommended Size | 0.5 cubic feet |
| Ported Enclosure Recommended Size | 0.5 cubic feet |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 012562945705 |
| Return period | 30 days |
| Exchange period | 30 days |
