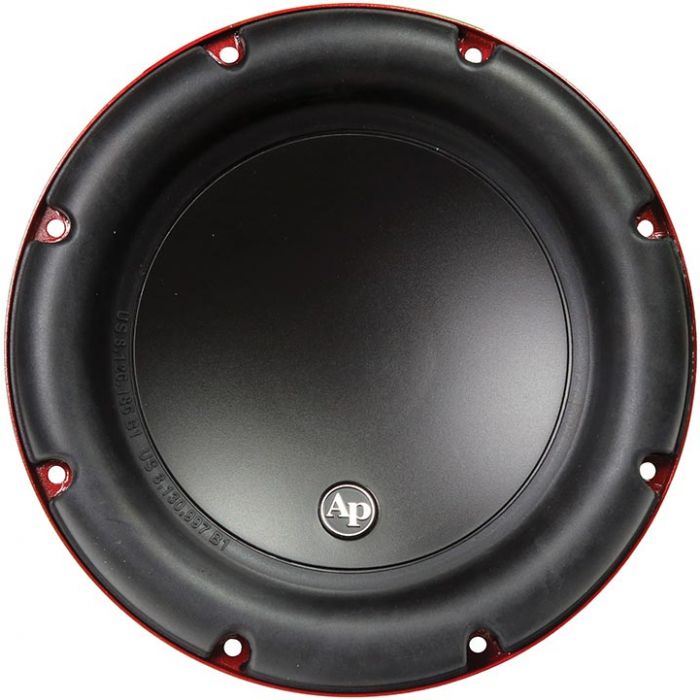

Audiopipe TSCAR10 10 inch Subwoofer - Single 4 ohm voice coil
$74.99
In stock
SKU
TSCAR10
Expert Knowledge
Talk to a specialist
- 10 inch Subwoofer with 4 ohm Single voice coil
- Oversized 50 ounce magnet and motor structure for extreme power handling and bass output
- 2 inch 4-layer single voice coil with large gauge wire for high temperature and power handling
- 300 Watts maximum power handling
Unit Includes: 10 inch Single 4 ohm voice coil subwoofer, Mounting Hardware, and Instruction manual
Audiopipe TSCAR10 10 inch Subwoofer - Single 4 ohm voice coil
Audiopipe TSCAR10 10 inch Subwoofer - Single 4 ohm voice coil
-
Features:
- 10 inch Subwoofer with single 4 ohm voicecoil
- Oversized 50 ounce magnet and motor structure for extreme power handling and output
- Injection-molded polypropylene cone
- Large Butyl Rubber Surround
- Woven high strength tinsel leads
- Perimeter venting for heat management
- Powder coated black stamped steel basket
- Multi-connect speaker terminals
- High-temperature 4 Layer voice coil
- Instruction Manual - Instruction Manual
- Sold Individually
-
Power Handling Max:
- 600 Watts maximum power handling
-
Power Handling RMS:
- 300 watts nominal continuous power handling RMS
-
Quick Specs:
- Impedance: 4 ohm Ohm per coil
- Frequency response: 28 Hz - 1500 Hz
- Sensitivity: 87 dB @ 1Watt / 1meter
-
Dimensions:
- Mounting Depth:5.625 inches
- Mounting Diameter: 9.5 inches
| Manufacturer | Audiopipe |
|---|---|
| Part Number | TSCAR10 |
| Driver Size | 10 inch |
| Subwoofer Shape | Round |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| FS | 33 Hz |
| QES | 0.72 |
| QMS | 1.5 |
| QTS | 0.48 |
| RE | 3.6 |
| VAS | 0 |
| Xmax (millimeters) | 7.5 mm |
| Sensitivity | 87 dB |
| Frequency Response | 28 Hz - 1500 Hz |
| Sub enclosure type | Banpass, Ported / Vented, Sealed |
| Power Handling RMS | 300 Watts |
| Power Handling Peak | 600 Watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | 5.63 Inches |
| Cutout Dimensions | 9.50 Inches |
| Sealed Enclosure Recommended Size | 1.0 ft3 |
| Ported Enclosure Recommended Size | 1.25 ft3 |
| Color | Black |
| Warranty | 1 Year |
| Sold as | Individually |
| UPC Code | 784644227121 |
| Return period | 30 days |
| Exchange period | 30 days |
