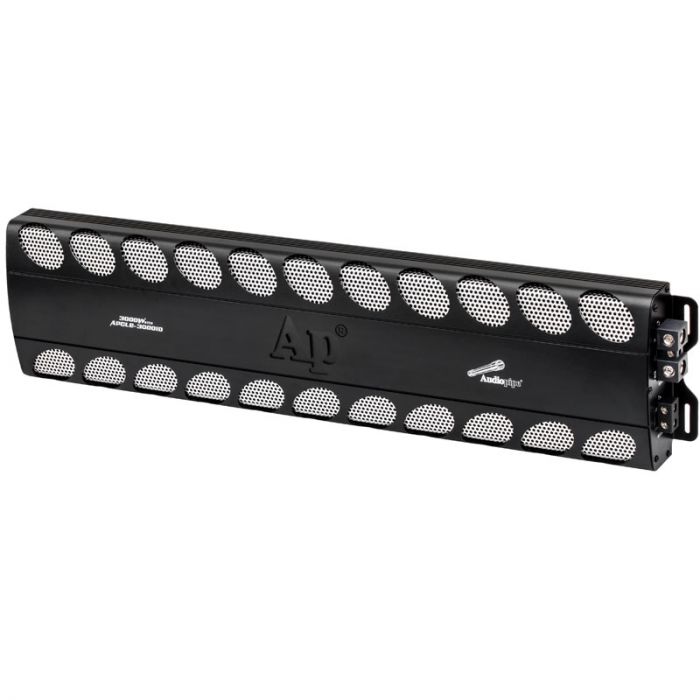

Audiopipe APCLE-30001D 3000 Watt Class D Mono Amplifier
Expert Knowledge
Talk to a specialist
- Audiopipe APCLE-30001D 3000 Watt Class D Mono Amplifier
- 3000 watts RMS x 1 Channel (2 ohm)
- 1800 watts RMS x 1 Channel (4 ohms)
- 2 - Channel Low level RCA inputs
- Features:
- 1800 Watts Max Power
- Pulse Width Modulated MOSFET Power supply
- Double side FR-4 PCB with high quality SMD components
- Oversized toroids for excellent current and voltage control
- 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
- 2-ohm stable
- Variable Low Pass filters allow you to adjust the playback frequencies from 40Hz to 180Hz at 12dB per octave
- 2 channel RCA inputs accepts up to 5 volt input signals
- 0° and 180° phase control
- Variable Bass boost controls: 0 - +12dB at 30Hz - 80Hz
- Variable subsonic filter: 24dB 5Hz - 50Hz
- Gold plated terminals for all connections
- Accepts up to 16 volts DC input for maximum sound output
- Frequency Response: 8Hz to 180 Hz
- Total Harmonic Distortion (4 Ω): < 0.15% (1kHz)
- Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >70dB
- Dimensions: 27-7/8" (W) x 2-1/8" (H) x 7" (D)
- Minimum 0 Gauge power wire with 200 amp fuse
-
RMS Power Rating:
- 4 ohms: 1800 watts x 1 channels
- 2 ohms: 3000 watts x 1 channels
| Manufacturer | Audiopipe |
|---|---|
| Part Number | APCLE30001D |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Total RMS Power at 1 ohm | 0.00 |
| Total RMS Power at 2 ohm | 3,000.00 |
| Total RMS Power at 4 ohm | 1,800.00 |
| Total Peak Power Output | 3,000.00 (Watts) |
| Amplifier Bridging | Not Bridgable |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 5 volts |
| Speaker level inputs | No |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | Low-pass, Sub-sonic |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 0 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 784644417447 |
| Return period | 30 days |
| Exchange period | 30 days |
