Metra TYTO-02 2013 and Up Toyota amplified audio system interface
$110.99
In stock
SKU
TYTO-02
Expert Knowledge
Talk to a specialist
- Integrates with Toyota Amplified audio systems
- Interface is designed to be used with factory amplified systems and converts aftermarket radio outputs to factory amplified audio system inputs
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable

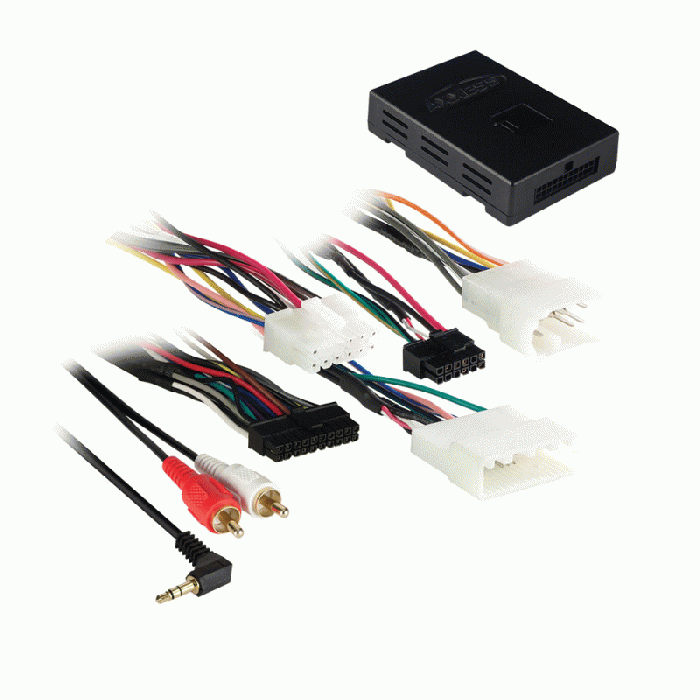

Unit includes: A) TYTO-02 interface, B) 16-pin harness, C) 14-pin harness to 10-pin and 28-pin Toyota harness, and Instruction manual
Metra TYTO-02 2013 and Up Toyota amplified audio system interface:
Interface Features:
Connections:
Kit Components:
Tools Required:
Optional parts:
Metra TYTO-02 2013 and Up Toyota amplified audio system interface:
Interface Features:
- Provides accessory output for databus signals (12-volt 10-amp capable output)
- Works with JBL, JBL Synthesis, and Amplified Audio systems
- Designed for Toyota audio systems
- Interface is designed to be used with factory amplified systems and converts aftermarket radio outputs to factory amplified audio system inputs
- Can be used with ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- USB firmware updatable
- Retains balance and fader
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – illumination
- Blue with White Stripe – Amplifier turn on
- Brown – Radio mute (Not Used)
- Light Green – Parking brake(Not Used)
- Green with Purple stripe - Reverse trigger
- Blue with Pink Stripe – VSS (Vehicle speed sensor)(Not Used)
- White with a Red Stripe - RCA cable for OE 3.5 mm jack (Radio must have a Aux input with RCA's)
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Kit Components:
- A) TYTO-02 interface
- B) 16-pin harness
- C) 14-pin harness to 10-pin and 28-pin Toyota harness
- D) Instruction manual
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 70-1761 Toyota Car Stereo Wiring Harness
- Metra TYTO-01 Toyota JBL Amplified Stereo Wiring Harness
- Metra 70-8114 Toyota Steering wheel interface control cable
- Metra ASWC Steering wheel interface control
- 2013 - and Up Avalon (with Nav)
- 2012 - and Up Camry (with Nav)
- 2014 - and Up Highlander
- 2012 - and Up Prius (3rd generation with Nav)
- 2012 - and Up Prius PHV (with Nav)
- 2015 - and Up Rav-4
- 2013 - and Up Sequoia (with Nav)
- 2012 - and Up Tacoma (with Nav)
- 2014 - and Up Tundra (with Nav)
- 2013 - and Up Venza (with Nav but without separate display)
Vehicle Applications:
Toyota:
| Manufacturer | Metra |
|---|---|
| Part Number | TYTO-02 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| UPC Code | 086429279005 |
| Return period | 30 days |
| Exchange period | 30 days |
