Axxess TYTO-03 2018 - and Up Toyota Camry amplified audio system interface
$123.99
In stock
SKU
TYTO-03
- Integrates with 2018 and Up Toyota Camry Amplified Toyota Audio systems
- Interface is designed to be used with factory amplified systems and converts aftermarket radio outputs to factory amplified audio system inputs
- 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
- Retains the factory AUX-IN jack
- Retains the factory backup camera

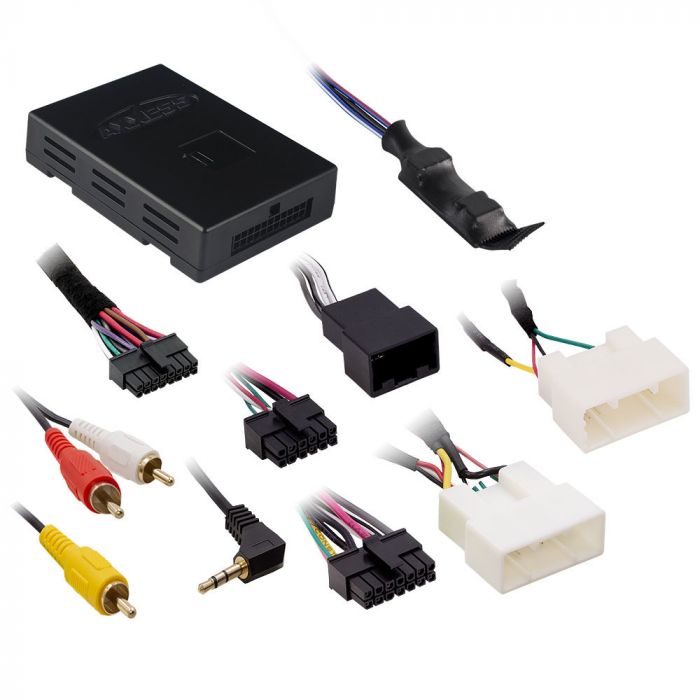

Unit includes: A) TYTO-03 interface, B) TYTO-03 harness, C) 16-pin harness with stripped leads, D) AX-CAM6V, E) Backup camera harness, and Instruction manual
Metra TYTO-03 2018 - and Up Toyota Camry amplified audio system interface
Metra TYTO-03 2018 - and Up Toyota Camry amplified audio system interface
-
Interface Features:
- Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
- Provides accessory (12-volt 10-amp)
- Retains R.A.P. (retained accessory power)
- Used in amplified audio systems
- Retains steering controls on the steering wheel for use with aftermarket radio
- Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
- Retains the factory AUX-IN jack
- Retains the factory backup camera
- Includes an AX-CAM6V 12-to-6V step-down for the factory camera
- High level speaker input
- USB updatable
- Retains balance and fade
- Axxess AX-TYAMP3-SWC 2018 - and Up Toyota radio replacement interface Instruction manual
-
Connections:
- Yellow - 12V Constant
- Red - 12V Accessory
- Black - Ground
- Orange - illumination
- Blue with White Stripe - Amplifier turn on
- Brown - Radio mute (Not Used)
- Light Green - Parking brake(Not Used)
- Blue with Pink Stripe - VSS (Vehicle speed sensor)(Not Used)
- Green - Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White - Left Front Speaker (+)
- White with Black Stripe - Left Front Speaker (-)
- Purple - Right Rear Speaker (+)
- Purple with Black Stripe - Right Rear Speaker (-)
- Gray - Right Front Speaker (+)
- Gray with Black Stripe - Right Front Speaker (-)
-
Kit Components:
- A) TYTO-03 interface
- B) TYTO-03 harness
- C) 16-pin harness with stripped leads
- D) AX-CAM6V, E) Backup camera harness
-
Tools Required:
- Panel Removal tool
- Cutting tool
- Crimping tool
- Electrical tape
- Crimp connectors
-
Optional parts:
- Wiring and Antenna Connections (Sold Separately)
- Metra 70-1765 Toyota Car Stereo Wiring Harness
- Metra 99-8266BLHG Toyota Camry Dash Kit
- Metra ASWC Steering wheel interface control
-
Vehicle Applications:
-
Toyota:
- 2018 - 2019 Camry
Manufacturer | Metra |
---|---|
Part Number | TYTO-03 |
Integration Module | Radio Replacement and Steering Wheel |
Wiring harness function | Replace Factory Radio |
Steering Wheel Control | Yes, requires external module |
Speaker level inputs | Yes |
Warranty | 1 Year |
Vehicle Year | 2018, 2019, 2020 |
Vehicle Brand | Toyota |
Vehicle Model | Camry |
Return period | 30 days |
Exchange period | 30 days |
Write Your Own Review
Customer Questions
Wiring Harnesses Explained
What do all of the wire colors mean? Aftermarket manufacturers have made car stereo receiver installation an easier process by using a standardized wire color scheme. We walk you through what each individual wire does, this way if you have an installation that doesn't perform properly you will have the resources to begin troubleshooting your installation.
