CrimeStopper UBB-4.CQ Quad Screen DVR Processor

CrimeStopper UBB-4.CQ Quad Screen DVR Processor

CrimeStopper UBB-4Q Quad Screen DVR Processor - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Crimestopper UBB-4CQ Product Highlights

  • 4 channel mobile DVR system
  • Quad screen processor
  • 1 channel audio recording
  • 4 GB SD card
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

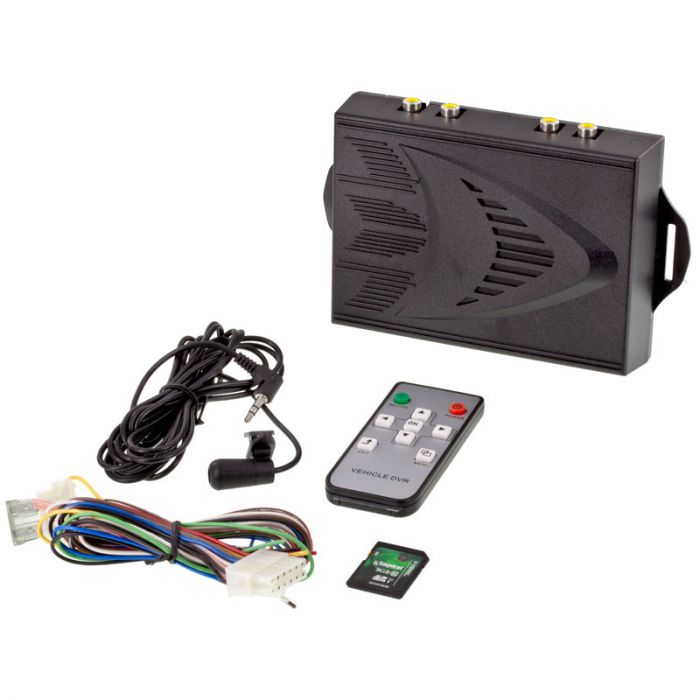

Unit includes: DVR recorder, Remote control, Wiring harness, and Instruction manual

The Crimestopper UBB-4.CQ Camera processor and DVR system bring an un parralled level of security and capabilities. You can turn any monitor into a quad screen monitor and a DVR at the same time. The processor allows you to connect up to 4 cameras providing a front, rear, left and right side camera view. The system will record all of the cameras as you drive helping you asses blame in the event of an accident. The UBB-4.CQ has four triggered inputs so the monitor will show a full image of the direction you are turning. For additional security the UBB-4.CQ can be integrated into any aftermarket car alarm, if the vehicle is tampered with the system will begin recording immediately. The Crimestopper UBB-4.CQ is one of the most capable camera processors available.

CrimeStopper UBB-4.CQ Quad Screen Processor and DVR

  • Digital video recording system with quad screen processor that can be displayed on any monitor
  • Provides around-the-clock video surveillance recording of vehicle
  • Allows 4 different cameras to record simultaneously with quad view
  • 4 different trigger zones: ignition, reverse, dome light (security) and turn signal
  • Recordings can be viewed on a in vehicle monitor or on home computer
  • Uses SD™ Card for memory (32GB max)
  • Audio recording for inside the vehicle with included microphone
  • Records time and date with built in clock
  • Compatible with any camera that uses standard RCA connections
  • System can be integrated with any alarm or remote start system for automatic recording if the alarm is set off
  • Includes full-function remote
  • Resolution: 720 × 480

Inputs and outputs:
  • 4 - RCa camera inputs
  • 1 - 3.5 mm microphone audio input
  • 1 - 12 volt ignition trigger lead
  • 1 - 12 volt reverse trigger lead
  • 1 - 12 volt right turn trigger lead
  • 1 - 12 volt left turn trigger lead
  • 1 - SD card input up to 32 GB

Technical Specifications

Manufacturer Crimestopper
Part Number UBB-4CQ
Recorder Type DVR Recorder
Camera Sensor type No
Camera diameter No
Infrared Illumination No
GPS Data No
Built in Microphone Yes
Built in Speakers No
LCD Screen Size No
Native Screen Resolution N/A
Widescreen Display No
LCD back light type N/A
LCD Screen Brightness N/A
Touchscreen N/A
Headphone Jack N/A
Built in FM Modulator N/A
Audio Video inputs 4 Video Input
Audio Video Outputs 1 Audio/Video output
HDMI output No
USB input No
SD Card input Yes, SD Card
Cigarette Lighter Cord Included N/A
Auto on/off Yes
Slide track on back N/A
Mount included No
Mounting thread for stand mount N/A
Operation Voltage 12 - 24 Volt DC
Housing material N/A
Trigger wire N/A
Image Flip Function N/A
Quad Screen N/A
Warranty 1 Year
Color Black
UPC Code 048097553115
