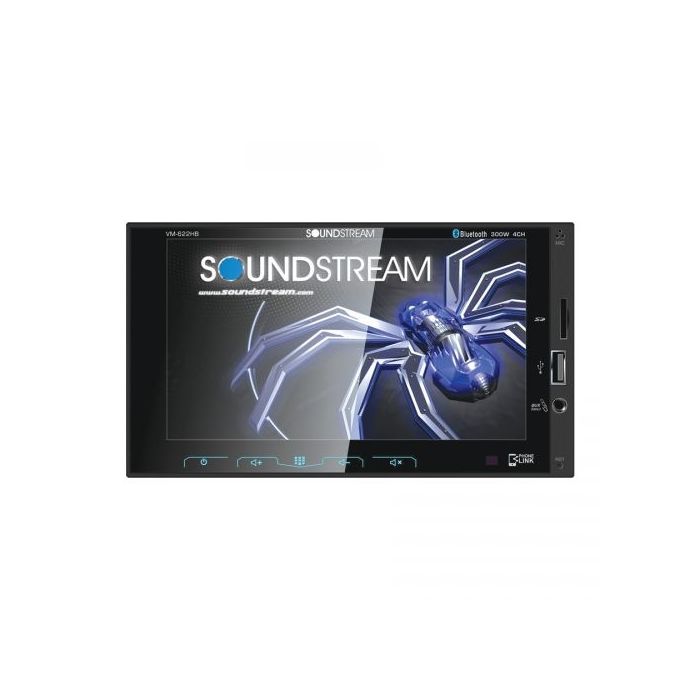

Soundstream VM-622HB 6.2" Double DIN Digital Media Receiver with Bluetooth 4.0 & Android PhoneLink

$82.99
In stock
SKU
VM-622HB

Key Features

  • 6.2 inch Clear Resistive Touchscreen DVD Receiver
  • Built in Bluetooth 4.0
  • Capacitive Touch Screen Supports 1080p Video Playback
  • Built in AM/FM radio tuner
  • Front USB Port
  • Steering wheel control compatible
  • 7 Color RGB LED illuminated keys with accents
Unit Includes: Double DIN receiver, Bluetooth Microphone, Wiring harness, Speaker harness, Mounting hardware, and Instruction manual

Soundstream VM-622HB 6.2" Double DIN Digital Media Receiver with Bluetooth 4.0 & Android PhoneLink
    Features
  • 6.2" Double DIN DVD Bluetooth Receiver
  • MHL PhoneLink for Compatible Android Phones
  • Capacitive Touch Screen Supports 1080p Video Playback
  • Bluetooth V3.0 Hands-Free Calling from Enabled Phone
  • A2DP Wireless MP3 Audio Playback from Enabled Device
  • Built-in Front Panel Bluetooth Microphone
  • 7 Color RGB LED illuminated keys with accents
  • Accepts OEM Steering Wheel Control Interfaces
  • Playback from DVD & CD of MP3, MP4 & Other Video
  • Playback from 64GB USB of MP3, MP4 & Other Video (front)
  • 2A 5V Adaptive Fast Charge of Mobile Devices (front USB)
  • ID3 MP3 Tag Reading for Track & Artist Information
  • Rear Audio/Video Input for Personal Media Devices
  • Front & Rear RCA Pre-Amp Audio Outputs
  • Subwoofer RCA Audio Pre-Amp Output
  • Video Output for Auxiliary Devices
  • Rear View Camera Input w/ Trigger
  • 300w 4ch. MOSFET Speaker Outputs
  • Custom Backgrounds & Screen Savers
  • Multi-Region FM Frequency Stepping
  • 800x480 Widescreen Resolution Supports 720p Video Playback
    Audio Features
  • 10-band parametric equalizer with 8 preset and custom options (Off / Custom / Jazz / Hip-Hop / Pop / Rock / R&B)
  • Manual EQ with 32 Hz / 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz ±7dB Adjustments
  • Subwoofer Time alignment: 0 - 18 ms
  • Low-Pass filter with variable crossover frequencies (Adjustable from off / 50 Hz / 80 Hz / 120 Hz / 160 Hz) at 12dB per octave
  • Variable subwoofer level control (+14dB to 0dB)
  • Subwoofer phase control 0° - 180°
  • Internal amplifier control: When using RCA's internal amplifier can be turned off
  • Loudness control
    Media Playback
  • Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, VCD, MP3, MPEG4 WMA, DivX, and AVI
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • Compatible audio codecs: FLAC, WMA, WAV, MP3, DTS, and Dolby Digital
  • Compatible video codecs: AVI, MPEG1, MPEG2, MPEG4, H.264, and AAC
  • Compatible picture codecs: JPEG, PNG and BMP
  • ID3 tag information, display artist and song information
  • FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
  • High quality Digital to Analog Converter
  • Supports up 32 GB flash drives
    Tuner features:
  • Includes Radio AM & FM tuner with 30 preset stations memory
  • RDSB (Radio data service) Tuner
    Inputs and Outputs
  • 3 - 4V preamp outputs for (Front, Rear and Subwoofer)
  • 1 - Rear Input for Rear Camera
  • 1 - Video Output
  • 1 - Front USB input
  • 1 - Front SD Card Input
  • 1 - Bluetooth Microphone
  • 1 - Steering wheel control input requires ASWC steering wheel interface
    Bluetooth
  • Integral Bluetooth 3.0 technology facilitates convenient hands-free phone calls and audio streaming
  • A2DP 1.2: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP 1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • HFP 1.5: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • PBAP 1.0: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 4.0 certified
    Dimensions:
  • Chassis Dimensions: 7"W x 6-1/2"D x 3-15/16"H
More Information
Manufacturer Soundstream
Part Number VM-622HB
Chassis Size Double DIN
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 4 volts
Illumination color Full Color
Touchscreen Yes - Capacitive touchscreen
Back up camera input Yes
Audio Video inputs 1 Audio Video Input
Front mounted auxiliary input 3.5 mm audio input
Audio Video Outputs 1 Video output
Built-in DVD Player No
Disc Playback No
SD Card input Yes, SD Card
USB input Yes
Smartphone Compatible Yes
Built in Crossover High-pass, Low-pass
Audio Formats AAC, FLAC, Mpeg-3, WAV, WMA
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
Radio Data Service - RDS Yes
Navigation No
Steering Wheel Control Yes, requires external module
Wireless Remote Control Yes
CEA2006 Compliant No
Warranty 1 Year
UPC Code 709483058910
Return period 30 days
Exchange period 30 days
