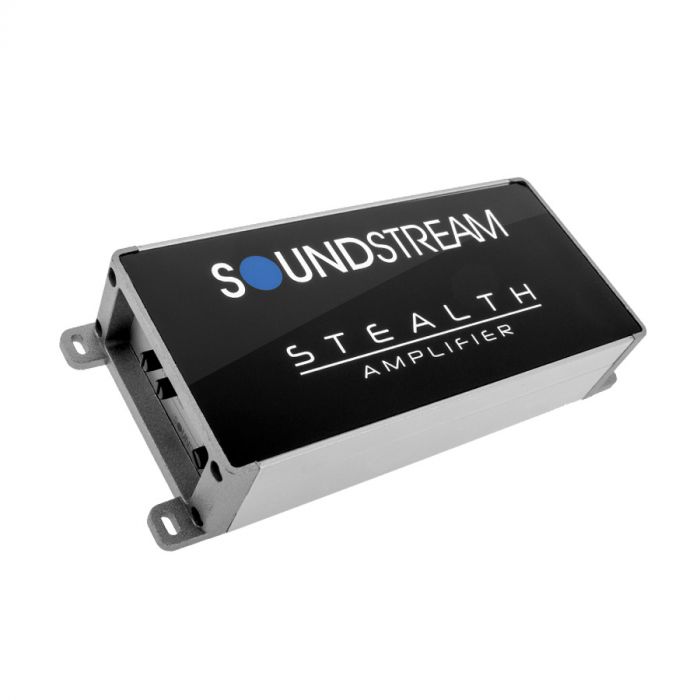

Soundstream Stealth Series ST2.1000D 2 Channel Class D Amplifier - 1000 Watts
- Stealth series 1,200 watts full range amplifier
- 2-Ohms: 250 Watts x 2 channel
- 4-Ohms: 140 Watts x 2 channel
- 4-Ohms/Bridged: 500 Watts x 1 channel
- Aluminum heat sink for better cooling
- MOSFET Power Supply with Audiophile Grade IRTM Transistors
- Military Grade SMT PCB Maintains Dynamic Performance
- 2-ohm Stereo and 4-ohm Bridged Full Range Operation
The little giant that the Sound Stream ST2.1000D will be evident once you install the amplifier in your car and turn on the volume to high. The incredible sound effect that this tiny car amplifier is capable of is quite unbelievable, thanks to the 1000 Watts raw output that reverberates inside your car and wafts out when the windows are rolled down. This multichannel amplifier comes in hybrid aluminum alloy heat sink that ensures optimum dissipation throughout.
The amplifier offers bridged full range operation in 4 Ohm and in 2 Ohm stereo as well. It is a neat fit in any car, and remains almost unnoticed (thanks to its puny size) but the moment the music is turned on, the people seated in the car are startled out of their wits for a moment, that’s the sound effect the little giant packs. Weighing less than 3.9 pounds (1.8kg) the Sound Stream ST2.1000D is incredible tiny yet comes with MOSFET power supply and w/ Audiofile grade IRTM transistors. The dynamic performance is maintained at a steady pace, thanks to the military grade SMT PCB. There is ample protection with direct short, thermal and overload circuits.
The Sound Stream ST2.1000D can be stealth installed in any location inside your car, thanks to its special feature that does not heat it up even after continuous play at high volume for more than an hour at a time. This 2 Channel car amplifier comes with variable high and low pass filters and with the special class D amp technology. It comes with the standard manufacturer’s warranty and purchasers are entitled to customer service and support 24/7, as technical support and help are just a call away.
Soundstream Stealth Series ST2.1000D 2 Channel Class D Amplifier - 1000 Watts
- Features:
- Stealth Series ST2.1000D
- 1200 Watts of maximum power
- Stealth Series 1,200 W Class D 2 Channel Amplifier
- Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
- 2-ohm Stereo and 4-ohm Bridged Full Range Operation
- MOSFET Power Supply with Audiophile Grade IRTM Transistors
- Military Grade SMT PCB Maintains Dynamic Performance
- Direct Short, Thermal and Overload Circuits Protect Amplifier
- 200mV-12V High Level or Low Level RCA Input
- Quick Disconnect RCA/High Level Wire Harness
- Quick Disconnect Power and Speaker Output Harness
- Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
- RMS Power Output:
- 2-Ohms: 250 Watts x 2 channel
- 4-Ohms: 140 Watts x 2 channel
- 4-Ohms/Bridged: 500 Watts x 1 channel
- 3"W x 6.50"L x 1.5"H
- Basic warranty: 1 year
- Dimensions:
- Warranty duration:
Manufacturer | Soundstream |
---|---|
Part Number | ST2.1000D |
Amplifier Topology Class | Class D |
Number of Channels | 2 Channel |
Amplifier Bridging | Bridgable @ 4 ohms |
Minimum Impedance in Bridged Mode | 4 ohm |
Minimum Impedance in Un-Bridged Mode | 2 ohm |
Strappable Amplifier | No |
Preamp voltage | 150 mV - 12 V |
Speaker level inputs | No |
Gain Control | No |
Bass Knob / Remote Gain | No |
Built in Crossover | High-pass, Low-pass |
Cooling Fan | No |
Color | Silver |
Warranty | 1 Year |
Recommended Power Wire Gauge | 10 Gauge |
CEA2006 Compliant | No |
UPC Code | 709483056220 |
Return period | 30 days |
Exchange period | 30 days |
