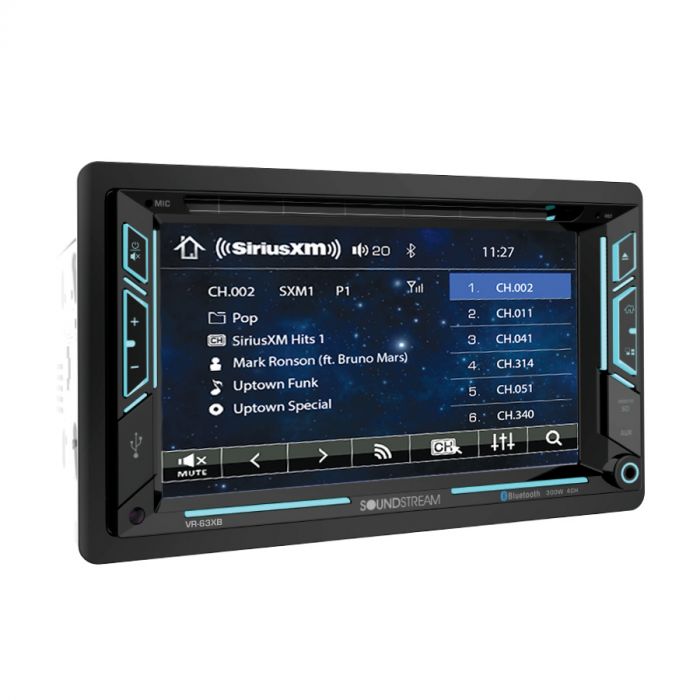

Soundstream VR-63XB 6.2" Double DIN DVD Receiver with Bluetooth & SiriusXM Ready
- 6.2" Double DIN DVD Receiver
- Built in Bluetooth V4.0
- Turn-by-Turn GPS Navigation of USA
- MHL PhoneLink for Compatible Android Phones
- Built in AM/FM radio tuner
- 2A 5V Adaptive Fast Charge of Mobile Devices (front USB)
- Steering wheel control compatible
Soundstream VR-63XB 6.2" Double DIN DVD Receiver with Bluetooth & SiriusXM Ready
- Features
- 6.2" Double DIN DVD Receiver
- Turn-by-Turn GPS Navigation of USA (Powered by iGo Primo 9.0)
- 12 Million Points of Interest Database Included
- MHL PhoneLink for Compatible Android Phones
- Complete Integration of Select Android Enabled Devices
- 10-Band Audio Equalizer w/ User Presets
- Bluetooth V4.0 Hands-Free Calling from Enabled Phone
- A2DP Wireless MP3 Audio Playback from Enabled Device
- Built-in Front Panel Bluetooth Microphone
- Accepts OEM Steering Wheel Control Interfaces
- Playback from DVD & CD of MP3, MP4 & Other Video
- Playback from 64GB USB of MP3, MP4 & Other Video (front)
- 2A 5V Adaptive Fast Charge of Mobile Devices (front USB)
- ID3 MP3 Tag Reading for Track & Artist Information
- Rear Audio/Video Input for Personal Media Devices
- Front & Rear RCA Pre-Amp Audio Outputs
- Subwoofer RCA Audio Pre-Amp Output
- Video Output for Auxiliary Devices
- Rear View Camera Input w/ Trigger
- Custom Backgrounds & Screen Savers
- Multi-Region FM Frequency Stepping
- 800x480 Widescreen Resolution Supports
- 400NIT LED Backlight
- Front 3.5mm AUX Audio Input
- Audio Features
- 10-band parametric equalizer with 8 preset and custom options (Off / Custom / Jazz / Hip-Hop / Pop / Rock / R&B)
- Manual EQ with 32 Hz / 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz ±7dB Adjustments
- Subwoofer Time alignment: 0 - 18 ms
- Low-Pass filter with variable crossover frequencies (Adjustable from off / 50 Hz / 80 Hz / 120 Hz / 160 Hz) at 12dB per octave
- Variable subwoofer level control (+14dB to 0dB)
- Subwoofer phase control 0° - 180°
- Internal amplifier control: When using RCA's internal amplifier can be turned off
- Loudness control
- Media Playback
- Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, VCD, MP3, MPEG4 WMA, DivX, and AVI
- Region 1 DVD player
- Electronic shock protection with built in buffer
- Compatible audio codecs: FLAC, WMA, WAV, MP3, DTS, and Dolby Digital
- Compatible video codecs: AVI, MPEG1, MPEG2, MPEG4, H.264, and AAC
- Compatible picture codecs: JPEG, PNG and BMP
- ID3 tag information, display artist and song information
- FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
- High quality Digital to Analog Converter
- Supports up 32 GB flash drives
- Tuner features:
- Includes Radio AM & FM tuner with 30 preset stations memory
- RDSB (Radio data service) Tuner
- Inputs and Outputs
- 3 - 4V preamp outputs for (Front, Rear and Subwoofer)
- 1 - Rear Input for Rear Camera
- 1 - Video Output
- 1 - Front USB input
- 1 - Bluetooth Microphone
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Bluetooth
- Integral Bluetooth 4.0 technology facilitates convenient hands-free phone calls and audio streaming
- A2DP 1.2: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP 1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- HFP 1.5: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP 1.0: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- External microphone with 10 foot cord for optimal placement
- Bluetooth 4.0 certified
- Dimensions:
- Chassis Dimensions: 7"W x 6-1/2"D x 3-15/16"H
Manufacturer | Soundstream |
---|---|
Part Number | VR-63XB |
Chassis Size | Double DIN |
Illumination color | Full Color |
Touchscreen | Yes |
Widescreen Display | 16:9 Widescreen Display |
Native Screen Resolution | 800 x 480 |
Camera Inputs | 1-Camera Input |
Back up camera input | Yes |
Front mounted auxiliary input | 3.5 mm audio input |
Built-in DVD Player | Yes |
Disc Playback | DVD |
USB input | Yes |
Built in Crossover | High-pass, Low-pass |
Audio Formats | Mpeg-3, WMA |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | No |
Satellite Radio | Sirius XM Ready |
CEA2006 Compliant | No |
Warranty | 1 Year |
Return period | 30 days |
Exchange period | 30 days |
