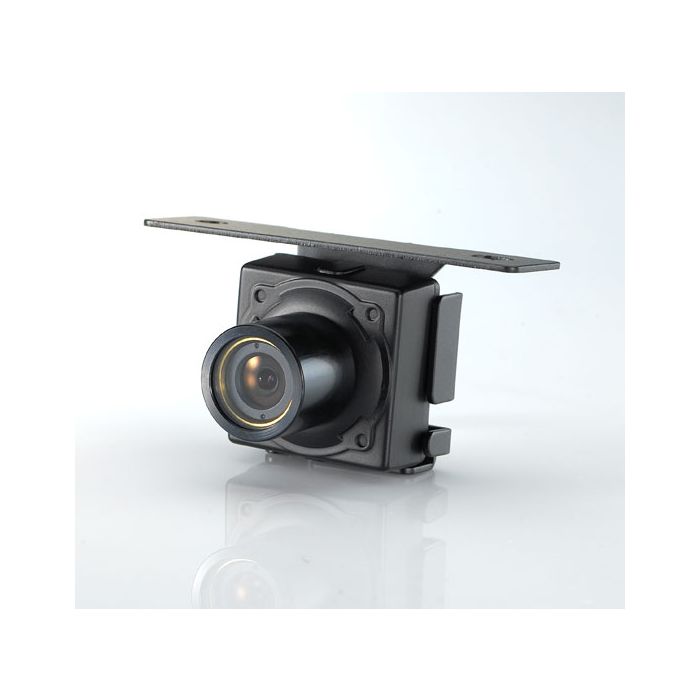

DISCONTINUED - Boyo VTB100 Surface Mount Trunk handle reverse back up camera

DISCONTINUED - Boyo VTB100 Surface Mount Trunk handle reverse back up camera

DISCONTINUED - Boyo VTB100 Surface Mount Trunk handle reverse back up camera

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTB100 Product Highlights

  • CCD Lens
  • Reverse Image
  • Moisture Free Weatherproof
  • Compact Size
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Back up camera, Mounting bracket, Mounting hardware, and Instruction manual

VTB100 Trunk handle mount reverse back up camera details:
    Outstanding true color reproduction
      It shows how DSP color CCD camera should perform its color reproduction. The unit includes the new generation 1/3" CCD sensor and it is successfully combined with our own image processing technology in order to enhance the color reproduction to the close level of human eye. It responses to all colors as natural and reproduce them extremely live.
    Remarkable low light sensitivity, noise free
      It is brighter than ever at dark illumination. Generally DSP color cameras perform very poor sensitivity compared with monochrome cameras at low illumination. It marks a new breakthrough how the color cameras work so well at low light condition. Note for the real feature of 0.3 lux at F2.0
    Compact Size (33mm x 33mm)
      The value of the camera is not in making the size as small as possible. It is just purposed to meet the general demands of micro technology. The real value is in making the unit perform a reliable functions & quality not loosing its principal purpose. It is successfully proved as being the world's smallest size, used with 1/3" CCD format, Incorporating all innovative features.
    Moisture Free Weatherproof
      The unit is completely sealed with strong metal housing. There is no condensation when it is heated after a long time operation under rainy weather.
    Extremely low power consumption & wide working voltage tolerance
      It covers DC12V ± 3V of power input and requires less than 80,2011,㎃. This is critical for the reliability as it produces less heat and protect it from damage against bad power supply or fluctuating AC power input.
    Key Features:
    • Weatherproof applicable for outdoor security or car rear view vision
    • 1/3" Super sensitive DSP Color CCD sensor (Sharp)
    • Human eye level of true color reproduction Ultra sensitive low light performance of 0.3 Lux at F2.0 fixed lens
    • 380,2011, TVL Horizontal Resolution
    • Extremely reliable operating power tolerance
    • Reverse Polarity Input protection circuit built-in
    • Reverse Image
    • Imager: 1/3" DSP Color CCD, (High sensitive)
    • Effective Pixels: NTSC : 512(H)X492(V)
    • Horizontal resolution: 380,2011, TV Lines
    • Total number of pixels: NTSC: 270K
    • Min.Illumination: 0.3 Lux at F2.0
    • Synchronizing system: Internal
    • Scanning system: 2:1 Interlaced
    • Video output: 1Vp-p 75 ohm composite
    • S/N Ratio: More than 48dB
    • Electronic iris: 1/50,1/60-1/100,000 sec.
    • Smear effect: 0.005%
    • Gamma correction: r = 0.45
    • White balance: Auto.2100'K - 9100'K
    • Gain control: Auto. 4dB - 30dB
    • Lens mount: 2.8mm Pinhole lens (130˚ D)
    • MTBF: 80,2011,000 hours
    • Power source: DC12V(Tolerance: 8V-20V)
    • Operating current: 80,2011,mA w/regulated power in
    • Operating Temp: 14˚ F~122˚ F ( -10˚ C~ + 50˚ C )
    • Humidity: Within 90% RH
    • Measurement (mm): 33(W) x 33(V) x 30(H)
    • Weight: 150 g

    Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTB100
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera sensor diameter No
Viewing Angle 130 degrees
Wireless Transmission No
Waterproof ingress protection No
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No
