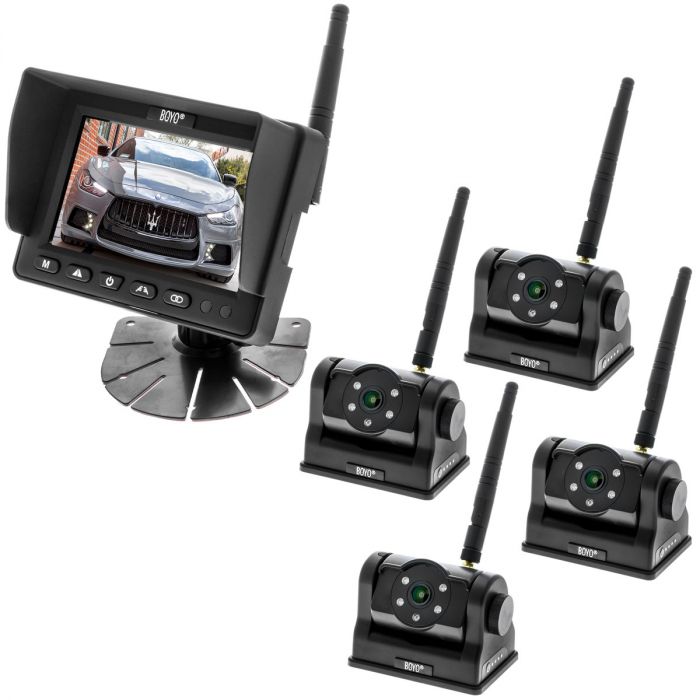

Boyo VTCRH4 5 inch 720p Digital Wireless Quad Camera System

$499.99
In stock
SKU
VTCRH4

Key Features

  • 2.4GHz Digital Wireless Monitoring System
  • 5 inch wireless monitor and two (4) magnetic mount 720p wireless cameras
  • Wireless Operation Up To 700’ (open space)
  • 18 hour camera battery life for quick installation of hardwiring
  • Quad mounts for dashboard and windshield suction cup
Inside the box:
  • 5 inch LCD monitor with wireless receiver
  • (5) Wireless Cameras
  • (5) Antennas
  • (5) Hardwire DC power cords
  • Cigarette lighter cord
  • Home AC adapter
  • Suction cup mount
  • Pedestal mount
  • Base station magnetic and adhesive mount
  • Instruction manual
Boyo VTCRH2 5 inch 720p Digital Wireless Dual Camera System
    5" Digital Monitor Features:
  • 5 inch IPS LED monitor with built in digital HD receiver
  • Ultra Clear Display Quality with 720P AHD resolution
  • Front mounted buttons for direct camera control and dual screen view
  • Resolution: 1024(H) x 800(V)
  • Power Supply: 12VDC - 24VDC
  • Screen Ratio: 16:9
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • Magnetic and adhesive Antenna base with 16 foot extension cable
  • Parking Guidelines On/Off
  • Image flip function: Horizonal and Vertical
  • Detachable Sunshade
  • Includes dual mounts for dashboard and windshield suction cup
  • Operating Temperature: -4° ~ +158° F (RH 95% Max)
  • Current consumption: 3 Watts
    Monitor Dimensions
  • Without Antenna and no sunshade: 5-7/16" (W) x 3-7/8" (H) x 1-1/8" (D)
  • Without Antenna and sunshade: 5-5/8" (W) x 4-1/8" (H) x 2-3/4" (D)
  • With Antenna and sunshade: 5-5/8" (W) x 6-1/2" (H) x 4-1/4" (D)
    Monitor connections
  • 1 - DC power jack
  • 1 - Camera 1 positive trigger (Full screen)
  • 1 - Camera 2 positive trigger (Full screen)
720p Wireless digital camera features:
  • 720p Digital HD resolution for excellent image detail and object detection
  • 1/2.7" CMOS CCD image sensor for excellent color and resolution
  • Magnetic Camera Mount: Easy to install / No hard wiring / No fastening / Mountable at / Re-mountable to anywhere on steel surface
  • Effective Pixel Resolution: 1280(H) x 720(V)
  • Wide Viewing Angle: 150° (D) x 130° (H) x 110° (V)
  • IR Infrared with 4 LEDs for Night Vision and up to 25 ft distance
  • Camera can be hardwired with DC power plug (included), charged with cigarette lighter (included) or AC adapter (included)
  • Wireless Operation Up To 700’ (open space)
  • Built-in 6400 Ma Rechargeable Battery
  • Battery Working Hours: 18 Hours
  • Battery Charger Included
  • Operating Temperature: -4° ~ +158° F (RH 95% Max)
  • Power Supply: DC 12V - 24V
  • Waterproof Rating: Ip68
  • Shell Material Aluminum Alloy
    Camera Dimensions
  • Without antenna: 4-1/4 inches (W) x 2-3/4 inches (H) x 2-3/4 inches (D)
  • With antenna: 4-1/4 inches (W) x 8 inches (H) x 2-3/4 inches (D)
More Information
Manufacturer Boyo
Part Number VTCRH4
LCD Screen Size 5 inch - 6 inch
Native Screen Resolution 1280 x 800
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming Yes - Full Auto Dimming
Trigger wire Yes
Modulation AHD
Slide track on back Yes
Image Flip Function Image rotate
Built in Speakers No
Mount included Yes, Suction cup
Auto on/off Yes
Cigarette Lighter Cord Included Yes
Audio Video inputs None
Wireless Remote Control No
Monitor Type Stand alone monitor
Mirror Mount Type Glass Mount
Back up camera type Surface Mount Camera
Reverse Image Selectable
Camera Sensor type CMOS
Camera diameter 1/2.7"
Viewing Angle 150 degrees
Parking grid lines Selectable
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Battery Powered Battery Powered or Hardwired
Wireless Transmission Digital wireless
Color Black
Operation Voltage 12-24 Volt DC
Warranty 1 Year
Return period 30 days
Exchange period 30 days
