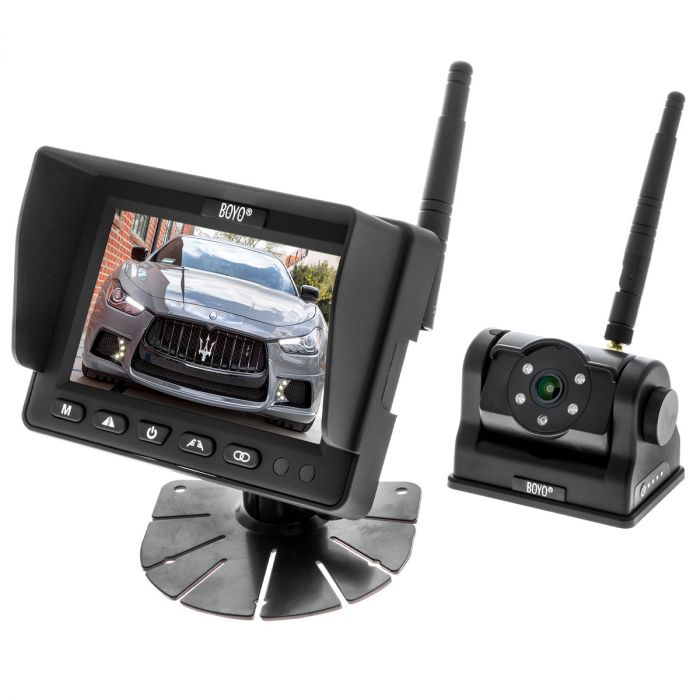

Boyo VTCRH1 5 inch 720p Digital Wireless Single Camera System
$369.99
In stock
SKU
VTCRH1
Expert Knowledge
Talk to a specialist
- 2.4GHz Digital Wireless Monitoring System
- 5 inch wireless monitor and two (1) magnetic mount 720p wireless camera
- Wireless Operation Up To 700’ (open space)
- 18 hour camera battery life for quick installation of hardwiring
- Single mounts for dashboard and windshield suction cup
Inside the box:
- 5 inch LCD monitor with wireless receiver
- (1) Wireless Cameras
- (2) Antennas
- (2) Hardwire DC power cords
- Cigarette lighter cord
- Home AC adapter
- Suction cup mount
- Pedestal mount
- Base station magnetic and adhesive mount
- Instruction manual
-
5" Digital Monitor Features:
- 5 inch IPS LED monitor with built in digital HD receiver
- Ultra Clear Display Quality with 720P AHD resolution
- Front mounted buttons for direct camera control and dual screen view
- Resolution: 1024(H) x 800(V)
- Power Supply: 12VDC - 24VDC
- Screen Ratio: 16:9
- OSD Menu (On Screen Display)
- Contrast, Color and Brightness
- Magnetic and adhesive Antenna base with 16 foot extension cable
- Parking Guidelines On/Off
- Image flip function: Horizonal and Vertical
- Detachable Sunshade
- Includes dual mounts for dashboard and windshield suction cup
- Operating Temperature: -4° ~ +158° F (RH 95% Max)
- Current consumption: 3 Watts
-
Monitor Dimensions
- Without Antenna and no sunshade: 5-7/16" (W) x 3-7/8" (H) x 1-1/8" (D)
- Without Antenna and sunshade: 5-5/8" (W) x 4-1/8" (H) x 2-3/4" (D)
- With Antenna and sunshade: 5-5/8" (W) x 6-1/2" (H) x 4-1/4" (D)
-
Monitor connections
- 1 - DC power jack
- 1 - Camera 1 positive trigger (Full screen)
- 1 - Camera 2 positive trigger (Full screen)
- 720p Digital HD resolution for excellent image detail and object detection
- 1/2.7" CMOS CCD image sensor for excellent color and resolution
- Magnetic Camera Mount: Easy to install / No hard wiring / No fastening / Mountable at / Re-mountable to anywhere on steel surface
- Effective Pixel Resolution: 1280(H) x 720(V)
- Wide Viewing Angle: 150° (D) x 130° (H) x 110° (V)
- IR Infrared with 4 LEDs for Night Vision and up to 25 ft distance
- Camera can be hardwired with DC power plug (included), charged with cigarette lighter (included) or AC adapter (included)
- Wireless Operation Up To 700’ (open space)
- Built-in 6400 Ma Rechargeable Battery
- Battery Working Hours: 18 Hours
- Battery Charger Included
- Operating Temperature: -4° ~ +158° F (RH 95% Max)
- Power Supply: DC 12V - 24V
- Waterproof Rating: Ip68
- Shell Material Aluminum Alloy
-
Camera Dimensions
- Without antenna: 4-1/4 inches (W) x 2-3/4 inches (H) x 2-3/4 inches (D)
- With antenna: 4-1/4 inches (W) x 8 inches (H) x 2-3/4 inches (D)
| Manufacturer | Boyo |
|---|---|
| Part Number | VTCRH1 |
| LCD Screen Size | 5 inch - 6 inch |
| Native Screen Resolution | 1280 x 800 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 300 Nit |
| LCD back light type | LED |
| Auto Dimming | Yes - Full Auto Dimming |
| Trigger wire | Yes |
| Modulation | AHD |
| Slide track on back | Yes |
| Image Flip Function | Image rotate |
| Built in Speakers | No |
| Mount included | Yes, Suction cup |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | Yes |
| Audio Video inputs | None |
| Wireless Remote Control | No |
| Monitor Type | Stand alone monitor |
| Mirror Mount Type | Glass Mount |
| Back up camera type | Surface Mount Camera |
| Camera Sensor type | CMOS |
| Camera diameter | 1/2.7" |
| Viewing Angle | 150 degrees |
| Parking grid lines | Selectable |
| Built in Microphone | No |
| Infrared Illumination | Yes |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Battery Powered | Battery Powered or Hardwired |
| Wireless Transmission | Digital wireless |
| Color | Black |
| Operation Voltage | 12-24 Volt DC |
| Warranty | 1 Year |
| UPC Code | 850005493303 |
| Return period | 30 days |
| Exchange period | 30 days |
