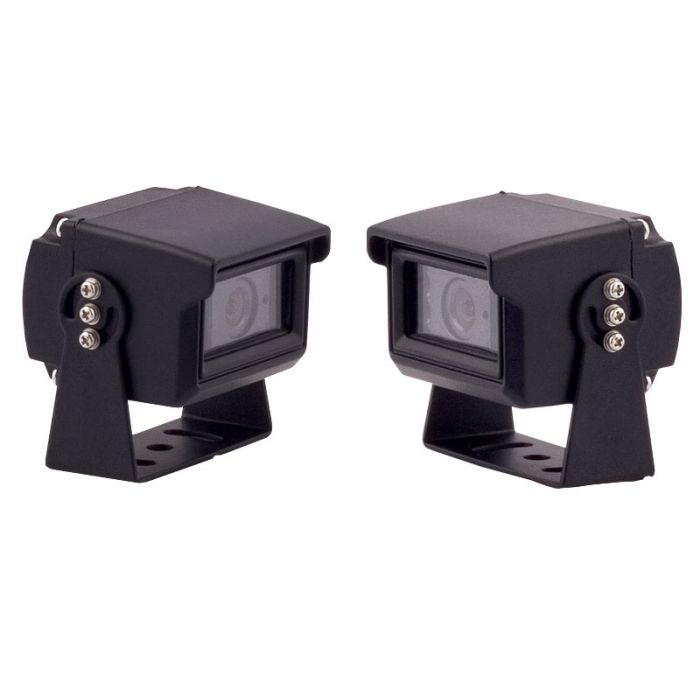

Boyo (Vision Tech) VTB201 Compact Night Vision Bracket Mount Type Camera

Boyo (Vision Tech) VTB201 Compact Night Vision Bracket Mount Type Camera

Boyo (Vision Tech) VTB201 Compact Night Vision Bracket Mount Type Camera

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Boyo VTB201 Product Highlights

  • 120 degrees Wide Angle Camera
  • Blind Spot reduced
  • IR for Night Vision
  • Built-in Microphone
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Back up camera, Mounting bracket, Mounting screws, and Instruction manual

Boyo (Vision Tech) VTB201 Compact Night Vision Bracket Mount Type Camera
  • Weatherproof and water resistant
  • Image device: 1/3" SHARP CCD
  • Mirror/ Normal image switch
  • 360 deg. adjustable mounting angle
  • Integrated microphone
  • Minimum illumination: 0 Lux (Infrared lamps on)
  • Nightvision distance: approx 8m (6 infrared lights)
  • Wider viewing angle up tp 120 degrees
  • Day/ Night sensor for automatic adjustment
  • Image device: 1/3" SHARP SENSOR CCD
  • TV System: NTSC
  • Effective pixels: 512 x 492 pixels
  • Sensing area: 4.9mm x 3.7mm
  • Sync. system: Internal
  • Resolution: 420 TV lines
  • Minimum illumination: 0 Lux
  • Microphone: Yes
  • Video output: 1.0vp-p, 75 Ohm
  • AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: Auto
  • Electronic shutter: 1/60 - 12µ
  • Current consumption: Max. 250mA
  • BLC: Auto
  • Power supply: DC12V
  • Operating Temp: -4 degrees F - 142 degrees F ( -20 degrees C - + 70 degrees C )
  • Storage Temp: -20 degrees F - 152 degrees F ( -40 degrees C - + 80,2011, degrees C )
  • Humidity: Within 95% RH
  • Lens: f=2.8mm / F=2.0
  • Lens Angle: 120 degrees

  • Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTB201
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera sensor diameter No
Viewing Angle 120 degrees
Wireless Transmission No
Waterproof ingress protection No
Reverse Image Selectable
Parking grid lines No
Infrared Illumination Yes
Built in Microphone Yes
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No

Customer Reviews

An excellent product
Review by
Install (5 star for easy)
Instruction/Owner's manual was unintelligible (poor English). Specifications were almost complete, but still lacking.

View in pitch dark is excellent. However, night image is so bright that vehicles with headlights on are not visible unless Brightness is turned down all the way. Still, this is an excellent product, especially for the price (under $200).
(Posted on 5/7/2011)
