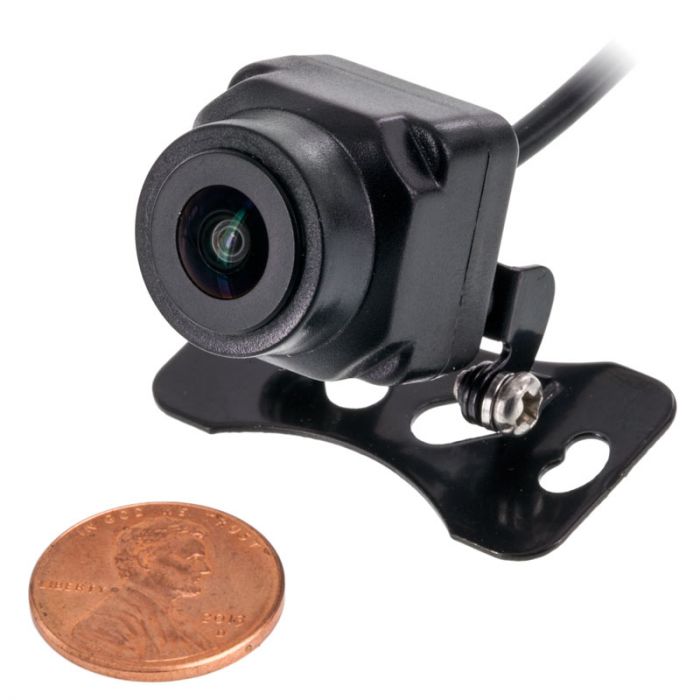

Boyo VTB110N Front Corner View HD Mini Mount Camera

Boyo VTB110N Front Corner View HD Mini Mount Camera

Boyo VTB110N Front Corner View HD Mini Mount Camera - Main

More Views

Boyo
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTB110N Product Highlights

  • CCD Lens
  • Mini Bracket
  • 175 Degree Viewing
  • Waterproof IP67
  • Low Light Sensitive
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!

Overview

Unit includes: Back up camera, Surface mount brackets, Wiring harness, Screws, and Instruction manual

Boyo VTB110N Front Corner View HD Mini Mount Camera
    Features:
  • Unique front car camera that provides two images of the front corners of the vehicle to minimize the blind spots
  • Camera can easily be mounted in between vehicle grill or bumper
  • High sensitive 1/3" DSP Color CCD built-in
  • Image Sensor: PC1089N
  • Stainless Steel Bracket with angle adjustment
  • Waterproof IP67 rated
  • Remarkable low Lux performance of 0.1 LUX
  • 175 degree wide viewing angle
  • Effective Pixels: NTSC : 500 (H) X 582 (V)
  • Horizontal resolution: 600 TV Lines
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Power source: DC12V
  • Operating current: 80mA
  • Operating Temp: -4° F~221° F ( -40° C~ + -105° C )
  • Storage Temp: -40° F~321° F ( -40° C~ + -150° C )
    Dimensions
  • Camera body: 15/16" x 15/16" x 15/16"

Technical Specifications

Manufacturer Boyo
Part Number VTB110N
Auto Dimming No
Camera Sensor type CCD
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/3 inch
Viewing Angle 170 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Reverse Image No - Normal Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
NTSC/PAL NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Warranty 1 Year
UPC Code 794504891867
