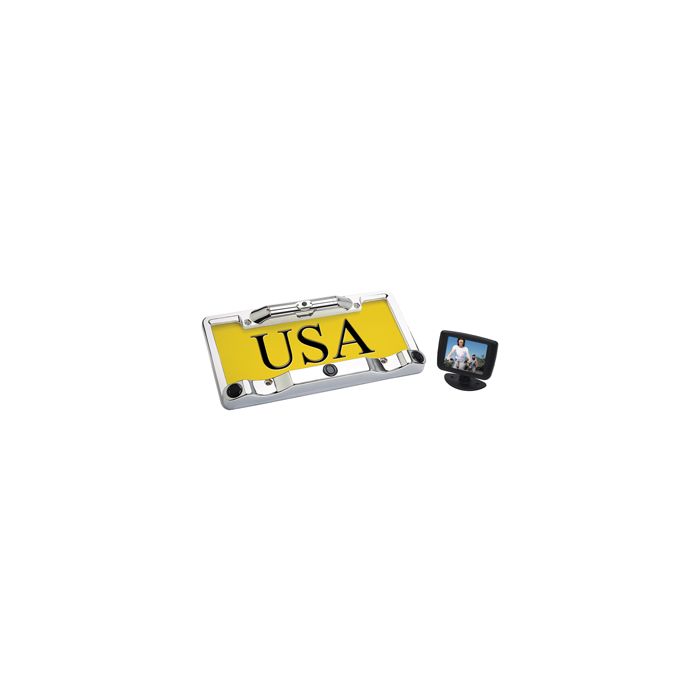

Boyo VTC433R Wireless license plate back up camera system with ultrasonic sensors

Boyo VTC433R Wireless license plate back up camera system with ultrasonic sensors

Boyo VTC433R Wireless license plate back up camera system

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTC433R Product Highlights

  • 2.5 inch LCD monitor
  • CCD License plate reverse camera with sensors
  • Wireless video and sensor transmission
  • Easy installation
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Wireless license plate back up camera system features:
  • Automatic turn on when vehicle is placed in reverse
  • License plate mount back up camera
  • Small dash mount 3" universal lcd monitor
  • Completely wireless video transmission
  • Ultrasonic sensors audible indicated proximity to walls, vehicles, people, and sidewalks
  • 3 ultrasonic sensors

Camera Specifications:
  • Image Sensor: 1/3 DSP Color CCD image ccd color dsp 13 sensor
  • Effective Pixels: 512 (H) x (582) effective x (h) (582) 512 pixels
  • Horizontal Resolution: 420 TV Lines horizontal lines tv 420 resolution
  • Total number of pixels: 320k total pixels: 320k of number
  • Min. Illumination: .5 Lux at F2.0 min. f2.0 at lux .5 illumination
  • Scanning System: 2:1 Interlaced scanning interlaced 2:1 system
  • Video Output: 1Vp-p 75 Ohm video 75 ohm 1vp-p output
  • S/N Ratio: More than 48db sn 48db than more ratio
  • Electronic Iris: 1/50 to 1/1000 electronic 11000 to 150 iris
  • White Balance: Auto white auto balance
  • Lens Mount: 2.8mm pinhole lense lens lense pinhole 2.8mm mount
  • Power source: 12vdc power 12vdc source
  • Wireless Frequency: 2.4Ghz wireless 2.4ghz frequency
  • Wireless Distance: 20 meters wireless meters 20 distance
  • Wide Angle: 130 degree wide degree 130 angle
  • Power consumption: 100mA

Monitor Specifications:
  • Display resolution: 960(W) x 240 (H) display resolution: 960(w) x 240 (h)
  • Screen size: 2.96" Diagonal screen size: 2.96" diagonal
  • Working voltage: 10vdc - 15vdc working voltage: 10vdc - 15vdc
  • Power consumption: 8watts

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTC433R
LCD Screen Size 3 inch - 4 inch
Native Screen Resolution 480 x 234
Widescreen Display 4:3 Normal Aspect Ratio
LCD Screen Brightness 300 Nit
LCD back light type CCFL
Auto Dimming No
Trigger wire No
Modulation NTSC and PAL
Slide track on back No
Image Flip Function Yes, reverse image flip
Built in Speakers No
Mount included No
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs No
Wireless Remote Control No
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type License Plate Camera
Options No
Product Options No
Homelink No Homelink transmitter
Built in Bluetooth No Bluetooth
Reverse Image Yes - Reverse Image
Camera Sensor type CCD
Camera sensor diameter 2.96 mm
Viewing Angle 130 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Case included No
Connector Type No
Wireless Transmission Wireless connection
Color Chrome
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 689076230407

Write Your Own Review

You're reviewing: Boyo VTC433R Wireless license plate back up camera system with ultrasonic sensors

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Mark, Friday, July 31, 2015


Is the sensor a beeping noise? That you can hear while backing up.


  • Posted by Mike Yang on Friday, July 31, 2015
    A: Yes, it is a beeping noise while backing up.
