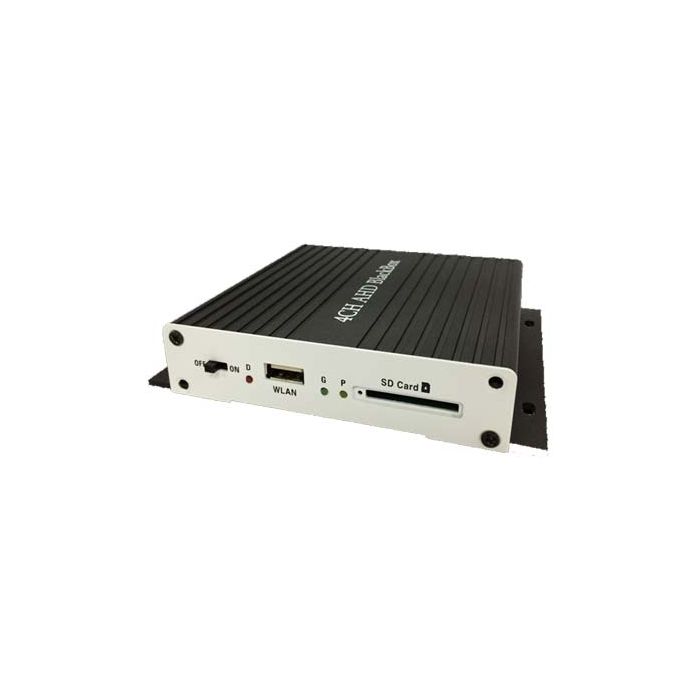

Boyo VTR400E 4-Channel Black Box DVR Recorder with 1-Channel Audio recording

Record everything that is taking place as you drive. The Boyo VTR400E DVR recorder can simultaneously records 4 cameras as you are driving to help in the event of an accident. The VTR400E has a built in G-Sensor that records the rate of acceleration, rate of turn, and rate of impact. The VTR400E also has an external GPS sensor that tracks your exact position and provides additional accuracy to the G-sensor. The VTR400E can playback all recorded data directly on a computer with the included software. The software displays all four cameras at once with GPS map information and G-sensor data. Protect yourself today!

• Built in camera with video recording at a resolution of 720 x 480 pixels for high quality playback
• Motion detection sensor for automatic recording as when you are stopped or parked recording starts for a set interval
• Built-In 3 Axis G-Sensor that measures turn rate and impact in real time
• Microphone input for audio recording
• Internal microphone for audio recording when external mic is not used
• Built in buzzer beeper for status and event recording alerts
• Panic recording mode
• Uninterrupted cycle recording- unit will record over oldest stored footage
• Time and Date stamp option
• Recording status LED
• Built in a GPS clock
• Password protect settings

• Records onto 2Gb - 32Gb Micro SD card (Class 10 Standard and above)
• Video Recording format: MPEG4
• Audio Recording format: AAC
• Playback video on any computer with included software
• Video recording modes: SD (720 x 480)
• 1 Camera supports: 1~30 fps@ 720x480, 1~30 fps @ 720x240
• 2 Cameras supports: 1~15 fps @ 720x480, 1~30 fps @ 720x240
• 3 Cameras supports: 1~10 fps @ 720x480, 1~15 fps @ 720x240
• 4 Cameras supports: 1 ~ 5 fps @ 720x480, 1~15 fps @ 720x240


3 Recording methods:
• Normal Mode: Continuous recording will automatically start after booting the VTR400E
• Event Mode: Recording by Motion Detection, G-sensor, Alarm 1~3 or [PANIC] button
• Dual Mode: Continuous recording will automatically start after booting and make a separate event recording file when there is an event


Pre Event and Post Event settings:
• Pre-record time is 5~30sec, if total frame rate is below 8fps @ 720x576 or 10fps @ 720x480
• Pre-record time is 5~25sec, if total frame rate is 12fps @ 720x576 or 15fps @ 720x480
• Pre-record time is 5~15sec, if total frame rate is 25fps @ 720x576 or 30fps @ 720x480
• Post-record time is 5~300sec


Alarm settings:
• Alarm 1: Event record, Trigger high or low, Custom name
• Alarm 2: Event record, Trigger high or low, Custom name
• Alarm 3: Event record, Trigger high or low, Custom name

• 3 - Camera input cables
• Female RCA plug on unit to accept fourth camera input for backup
• Hardwired remote control with channel record button, Panic record, Play, Shutter, and Stop
• Signal inputs: +12 volts, Ground, Speed pulse
• Alarm inputs: Cam 1, Cam 2, Cam 3
• Includes 4Gb SD card
• GPS Log to KML adapter to export to Google earth to show route
• Audio / Video output for connection to Live view on LCD monitor

• Hard wire cord for 12 volt and 24 volt vehicles
• Internal capacitor for data protection

• Mounts with double stick tape or velcro
• Includes velcro pads
• Includes double stick tape
• Includes cable retainers

• Dimensions with mount: 3-7/8" (W) x 2-7/8" (W) x 13/16" (D)
