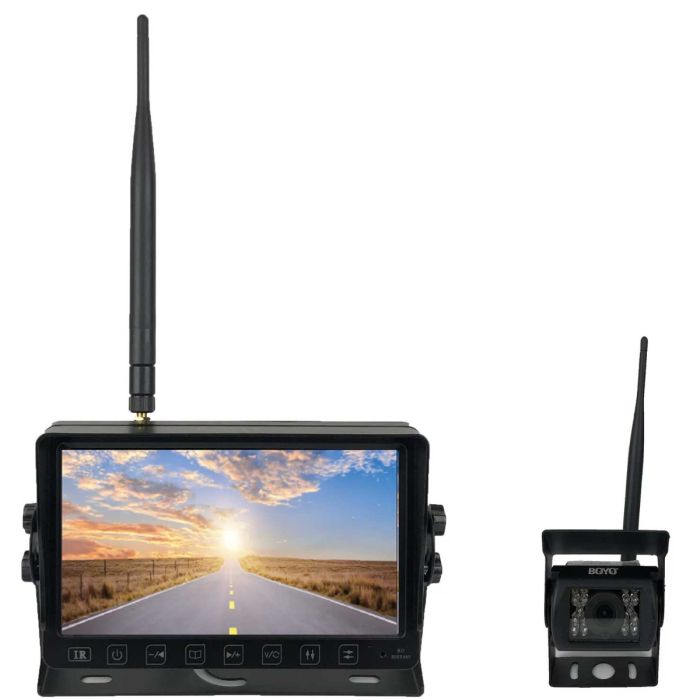

Boyo VTC703AHD Single Camera Digital Wireless Backup Camera System with DVR

$269.99
In stock
SKU
VTC703AHD

Key Features

  • Digital Wireless Technology - Not subject to common interference and static
  • 7 inch AHD 1080p LCD display with built in 1-channel DVR
  • (1) 1/4 inch CMOS AHD 1080p cameras for superior night time picture quality
  • Perfect for trailers and tow vehicles
  • 1080p resolution
  • 200 foot range

Unit includes: 7 inch LCD monitor with wireless receiver, (1) Back Up Cameras with Wireless Transmitter, Monitor hard wire cable, Cigarette lighter power cable, Audio video input cable, (2) Antennas, Suction cup mount, Fan mount, Mounting and Electrical hardware, and Instruction manual

Boyo VTC700RQ Single Camera Digital Wireless Backup Camera System with DVR

    Overview:
  • 7 inch LCD monitor with wireless receiver
  • Single camera system is perfect for large vehicles and RV's where running cables is difficult
  • 2.4 Ghz digital transmission, cameras require pairing and are not subject to interference and signal hijacking
  • Built in DVR with 2 channel record capability
  • (1) Night vision CCD camera/w wireless transmitter
  • Ideal for trucks and trailers where wired connections are not possible
  • 200 foot line of sight range
  • Monitor can be temporarily mounted using included suction cup
  • Monitor can be permanently mounted using included fan mount
  • Monitor can be temporarily powered using included cigarette lighter cord
  • Monitor can be permanently powered using included hard wire cord
  • 1 Side mounted video output

    Wireless Digital Monitor
  • IPS, TFT, LCD Panel, 1080p HD Quality
  • Panel: 7 inch Digital Panel Screen
  • Resolution: 1024 (H) x 600 (V)
  • Display format: 16:9
  • NTSC/PAL compatible
  • Built-In Speaker
  • Parking lines on/off (Selectable)
  • Reverse / Non-Reverse Image (Selectable)
  • 2.4GHz Digital Wireless Signal
  • Wireless Transmit Range at about 300 feet
  • Working temperature: -20°C ~ 70°C
  • Working Voltage Range: 12VDC ~ 36VDC
  • Works as Single, Dual, or Quad Screens
  • 4 Channel Audio/Video
  • Power the monitor through a cigarette plug
  • Built-in DVR
  • Records onto an micro SD card up to 128GB
    • Monitor Dimensions:
    • With Antenna extended vertically: 9-3/4 (H) x 9-1/2" (W) x 1-3/8" (D)
    • Without Antenna: 6-1/4 (W) x 8-3/8" (H) x 1-3/8 (D)

    Wireless Digital Camera
  • Image Sensor: 1/4” FHD CMOS sensor
  • Effective Pixels: 1920 (H) x 1080 (V)
  • Waterproof Rating: IP68
  • Viewing Angle: 110°(H), 85°(V), 140°(D)
  • Auto White Balance
  • Built-in Microphone
  • IR Night Vision Visible Distance: about 12feet
  • Reverse / Non-Reverse Image (Selectable)
  • 2.4GHz Digital Wireless Signal
  • Wireless Transmit Range at about 300 feet
  • Working temperature: -20°C ~ 70°C
  • Working Voltage Range: 12VDC ~ 36VDC
  • No high speed dropouts
  • Trigger function
  • NTSC or PAL compatible
    • Camera Dimensions
    • Without Antenna: 4-1/4" (W) x 2-1/2 (H) x 3-1/4 (D)
    • With Antenna: 4-1/4" (W) x 5-1/2" (H) x 3-1/4" (D)
    Inputs and Outputs:
  • 1 - 9-32 VDC power inputs
  • 1 - Rear camera trigger
  • 1 - Camera 2 trigger

Note: this system is not designed to be used while in motion at highway speeds, due to signal limitations this system will not function properly at speeds in excess of 20 MPH.

More Information
Manufacturer Boyo
Part Number VTC703AHD
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1024 x 600
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 350 Nit
LCD back light type LED
Auto Dimming No Dimming
Trigger wire Yes
Modulation ATSC only
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers Yes
Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included Yes
Audio Video inputs 1 Audio Video Input
Wireless Remote Control No
Monitor Type Stand alone monitor
Back up camera type Surface Mount Camera
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CMOS
Camera diameter 1/4"
Viewing Angle 140 degrees
Parking grid lines Selectable
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Battery Powered Hard wired
Connector Type RCA Cable
Wireless Transmission Digital wireless
Color Black
Operation Voltage 12-36 Volt DC
Warranty 1 Year
Return period 30 days
Exchange period 30 days
