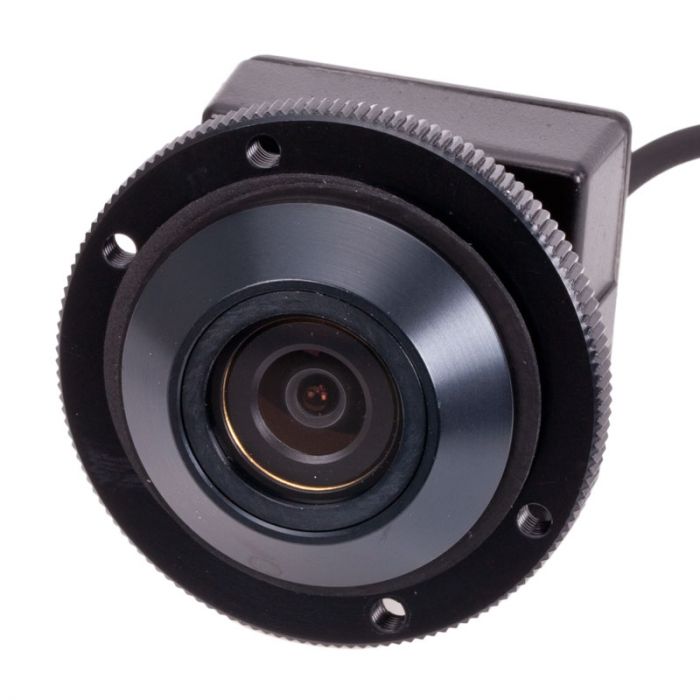

Boyo (Vision Tech) VTK100N Non-Reverse Keyhole Type Waterproof Camera with Built In 1/3 inch DSP Color CCD

In stock

Key Features

  • Fixed Non-Reverse Image for front viewing
  • CCD Lens
  • Compact Size
  • Key Hole Camera
Unit includes: Cam

Boyo (Vision Tech) VTK100N Non-Reverse Keyhole Type Waterproof Camera with Built In 1/3 inch DSP Color CCD
  • Fixed Non-Reverse Image for front viewing
  • 1/3" Super sensitive DSP Color CCD sensor (Sharp)
  • Weatherproof applicable for outdoor security or car rear view vision
  • Human eye level of true color reproduction
  • Ultra sensitive low light performance of 0.3 Lux at F2.0 fixed lens
  • 380,2011, TVL Horizontal Resolution
  • Extremely reliable operating power tolerance
  • Reverse Polarity Input protection circuit built-in

  • Outstanding true color reproduction: It shows how DSP color CCD camera should perform its color reproduction. The unit includes the new generation 1/3" CCD sensor and it is successfully combined with our own image processing technology in order to enhance the color reproduction to the close level of human eye. It responses to all colors as natural and reproduce them extremely live.
  • Remarkable low light sensitivity, noise free: It is brighter than ever at dark illumination. Generally DSP color cameras perform very poor sensitivity compared with monochrome cameras at low illumination. It marks a new breakthrough how the color cameras work so well at low light condition. Note for the real feature of 0.3 lux at F2.0.
  • Compact Size (33mm x 33mm): The value of the camera is not in making the size as small as possible. It is just purposed to meet the general demands of micro technology. The real value is in making the unit perform a reliable functions & quality not loosing its principal purpose. It is successfully proved as being the world's smallest size, used with 1/3" CCD format, Incorporating all innovative features.
  • Moisture Free Weatherproof: The unit is completely sealed with strong metal housing. There is no condensation when it is heated after a long time operation under rainy weather.
  • Extremely low power consumption & wide working voltage tolerance: It covers DC12V ± 3V of power input and requires less than 80,2011,. This is critical for the reliability as it produces less heat and protect it from damage against bad power supply or fluctuating AC power input.

  • Model: VTK100N
  • Imager: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels: NTSC - 512(H)X492(V)
  • Horizontal resolution: 380,2011, TV Lines
  • Total number of pixels: NTSC - 270K
  • Min. Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2-1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Smear effect: 0.005%
  • Gamma correction: r = 0.45
  • White balance: Auto.2100'K - 9100'K
  • Gain control: Auto. 4dB - 30dB
  • Lens mount: 2.8mm Pinhole lens (130 degrees D)
  • MTBF: 80,2011,000 hours
  • Power source: DC12V(Tolerance: 6V-35V)
  • Operating current: 90mA w/regulated power in
  • Operating Temp: -4 degrees F ~ 122 degrees F ( -20 degrees C ~ + 50 degrees C )
  • Storage Temp: -40 degrees F ~ 176 degrees F ( -40 degrees C ~ + 80,2011, degrees C )
  • Humidity: Within 90% RH
  • Weight: 150g

  • VTK100 - Reverse Image
  • VTK100N - Fixed Non-Reverse Image for front viewing

More Information
Manufacturer Boyo
Part Number VTK100N
Camera Sensor type CCD
Back up camera type Flush Mount Key hole camera
Viewing Angle 130 degrees
Waterproof ingress protection Waterproof
Reverse Image No - Normal Image
Modulation NTSC only
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
