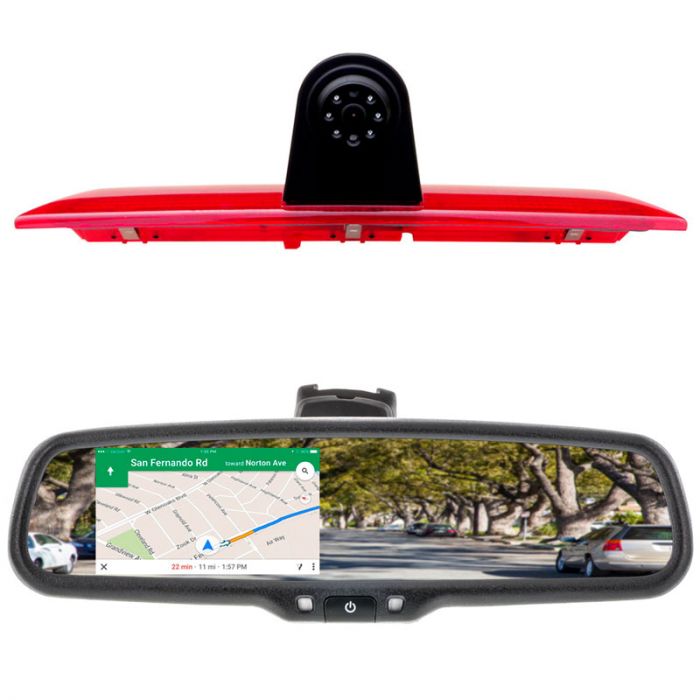

Boyo VTFTK1 Ford Transit Van Back Up Camera System

$342.98

In stock

SKU
VTFTK1

Key Features

  • 4.3" Digital TFT LCD Monitor
  • Mirror Link your Android or iOS device's screen to the monitor
  • Adjustable backup camera guide lines
  • Factory fit back up camera for Ford Transit Passenger or Cargo Van
  • Infrared illumination for night vision
  • Camera is ball mounted and can be adjusted in overhang housing
Customize Boyo VTFTK1 Ford Transit Van Back Up Camera System
Boyo VTW43M 4.3 Inch Digital Rear View Mirror Monitor with Android and iOS Miracast   + $213.99
Boyo VTS50 Reverse Back up Camera for 2014 - 2016 Ford Transit Passenger or Cargo Van   + $128.99

* Required Fields

Your Customization
Boyo VTFTK1 Ford Transit Van Back Up Camera System
Boyo VTFTK1 Ford Transit Van Back Up Camera System

In stock

$342.98

Summary
    Monitor includes: Rearview mirror monitor, Glass mount, Wire harness, Wireless remote control, Mounting bracket arm, Wire cover and Instruction manual

    Camera includes: Back up camera, Adhesive seal, 25 foot RCA cable, 10 foot DC power cable, and Instruction manual



    Boyo VTW43M 4.3 Inch Digital Rear View Mirror Monitor with Android and iOS Miracast

    Features:
    • 4.3" Digital TFT LCD Monitor
    • Mirror Link your Android or iOS device's screen to the monitor
    • Adjustable backup camera guide lines
    • Built-in speakers to play audio from video source
    • Touchscreen command buttons
    • Glass mount installation for OEM look
    • Fits nearly every vehicle
    • 2 - RCA Video inputs
    • Automatic reverse trigger


    Inputs and Outputs:
    • 2 - RCA Video inputs
    • 12 volt positive trigger wire


    Specifications:
    • Video Resolution: 480 x 272
    • Working Voltage: DC 12V


    Dimensions:
    • Mirror dimensions: 10-3/4" (W) x 3-1/4" (H) x 1" (D)
    • Maximum opening size for clip on: 2-3/4" (H)
    • Glass mount: 3-1/2" (L)
    Boyo VTS50 Reverse Back up Camera for Ford Transit Passenger or Cargo Van

      Features:
    • Factory fit for Ford Transit Passenger or Cargo Van
    • RCA connector allows easy connection to any monitor
    • Jumper for parking grid lines - turns them on and off
    • Mounts above factory brake light in factory location
    • Infrared illumination for night vision
    • Camera is ball mounted and can be adjusted in overhang housing
    • Waterproof IP68
    • 170° viewing angle for extra wide angle
    • CMOS PC3089 camera sensor
    • 648 x 488 Pixels
    • NTSC video signal
    • Effective pixels: 768 x 494
    • 0 Lux with IR
    More Information
    Manufacturer Boyo
    Part Number VTFTK1
    LCD Screen Size 3 inch - 4 inch
    Native Screen Resolution 480 x 272
    Widescreen Display 16:9 Widescreen Display
    LCD Screen Brightness 400 Nit
    LCD back light type LED
    Auto Dimming Yes - Full Auto Dimming
    Trigger wire Yes
    Modulation NTSC and PAL
    Built in Speakers Yes
    Mount included Yes, Pedistal stand
    Auto on/off Yes
    Audio Video inputs 2 Video Inputs, 1 Audio input
    Wireless Remote Control Yes
    Monitor Type Rearview mirror monitor
    Mirror Mount Type Glass Mount
    Back up camera type Vehicle Specific Camera
    Product Options No Compass and Temperature Guage
    Homelink No Homelink transmitter
    Built in Bluetooth No Bluetooth
    Reverse Image Yes - Reverse Image
    Camera Sensor type CMOS
    Camera diameter 2.96 mm
    Viewing Angle 170 degrees
    Parking grid lines Yes
    Built in Microphone No
    Infrared Illumination Yes
    Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
    Battery Powered Hard wired
    Wireless Transmission Wired connection
    Color Black
    Operation Voltage 12-15 Volt DC
    Warranty 1 Year
    Vehicle Year 2014, 2015, 2016, 2017
    Vehicle Brand Ford
    Vehicle Model Transit, Transit 1500, Transit 2500, Transit 3500, Transit 4500
    UPC Code 852052006260
    Return period 30 days
    Exchange period 30 days
