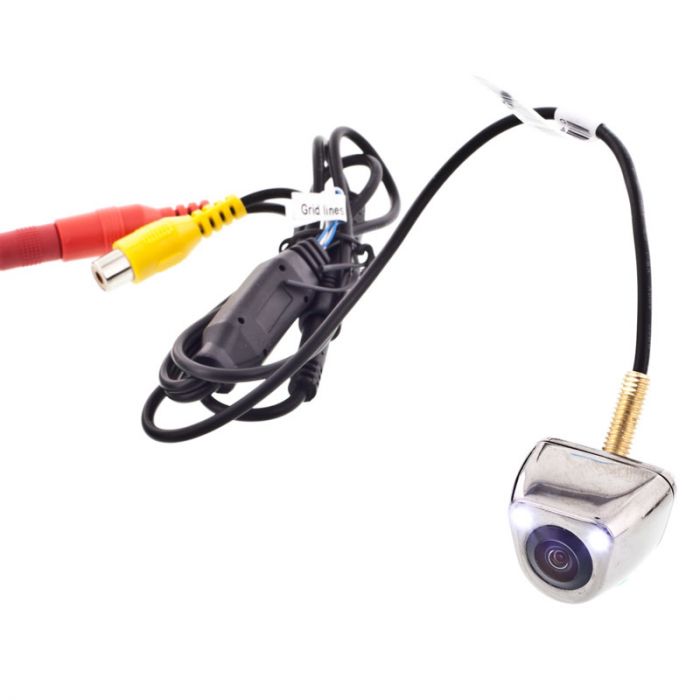

Boyo VTK220DL Surface Mount CMOS Car Backup Camera with LED lighting

Boyo VTK220DL Surface Mount CMOS Car Backup Camera with LED lighting

Boyo VTK220DL Car Camera with LED lighting - Front right view with LED's on

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTK220DL Product Highlights

  • Surface Mount Camera
  • 170 Degree Wide Angle
  • Selectable reverse and non reverse image can be used as a front camera
  • Low Light Sensitive with LED illumination
  • Selectable parking grid lines - cut wire changes mode
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Surface mount camera, 15 foot RCA cable, 3 foot power harness, and Instruction manual

Boyo VTK220DL Surface Mount CMOS Car Backup Camera with LED lighting features:

  • 1/4" CMOS MT136 Reverse image camera, surface mount
  • Camera surface mounts with retaining nut
  • Camera can be used as a front or backup camera - Cut lead to reverse image
  • Cut wire for parking grid lines
  • LED lights are always on
  • 480 TV Lines of resolution
  • .1 LUX minimum illumination with IR off
  • 720 x 480 pixels
  • Waterproof IP67
  • 170 degrees viewing angle
  • Power source: 12Vdc
  • Power consumption: <100mA
  • Dimensions: 1-1/4" (W) x 1" (H) x 1-3/16" (D)

Technical Specifications

Manufacturer Boyo
Part Number VTK220DL
Auto Dimming No
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 170 degrees
Wireless Transmission No, wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines Yes
Infrared Illumination Yes
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 794504210453
