Boyo VTK370DL Rotating Ball Type CMOS Car Camera

Boyo VTK370DL Rotating Ball Type CMOS Car Camera

Boyo VTK370DL Rotating Ball Type CMOS Car Camera - LED's on

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Boyo VTK370DL Product Highlights

  • Rotating Ball Camera
  • 170 Degree Wide Angle
  • Rotate a full 360 degrees
  • Low Light Sensitive
  • Selectable parking grid lines - cut wire changes mode
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

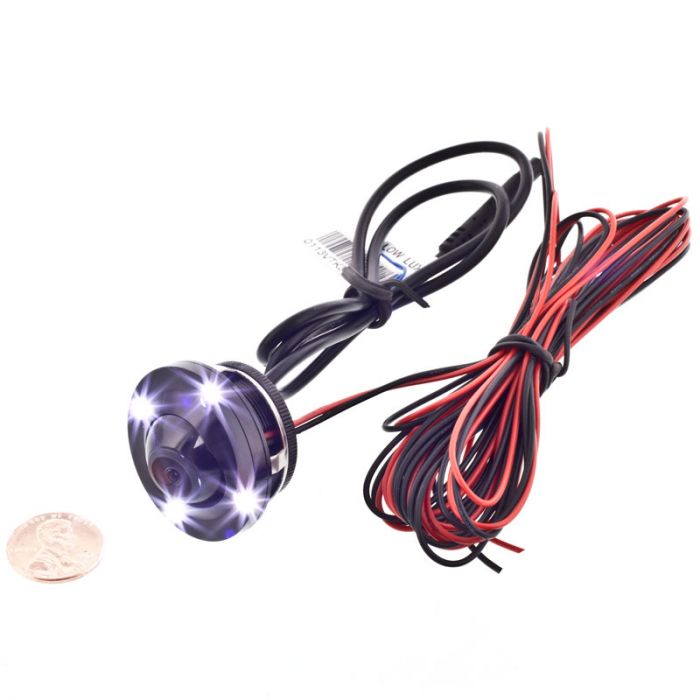

Unit includes: Rotating ball camera, 15 foot RCA cable, 5 foot power harness, and Drill bit

Boyo VTK370DL Rotating Ball Type CMOS Car Camera features:

  • CMOS Reverse image camera, rotating ball-type
  • Camera can rotate a full 360 degrees within the housing
  • Camera can be used as a side camera
  • Camera has LED lighting with separate harness so lighting can be turned on and off
  • Drill bit included
  • Cut wire for parking grid lines
  • 480 TV Lines of resolution
  • .2 LUX minimum illumination
  • 720 x 480 pixels
  • Minimum Illumination: 0 lux
  • Waterproof IP67
  • 170 degrees viewing angle
  • Dimensions: 1-3/8" (D) x 7/8" (H)
  • Cutout hole: 1-3/16" (D)

Technical Specifications

Manufacturer Boyo
Part Number VTK370DL
Auto Dimming No
Camera Sensor type CMOS
Back up camera type Flush Mount Key hole camera
License Plate Camera Type No
Camera diameter 1/4 inch
Viewing Angle 170 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Trigger wire No
Auto on/off No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Case included No
Built in Speakers No
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 689076352017
