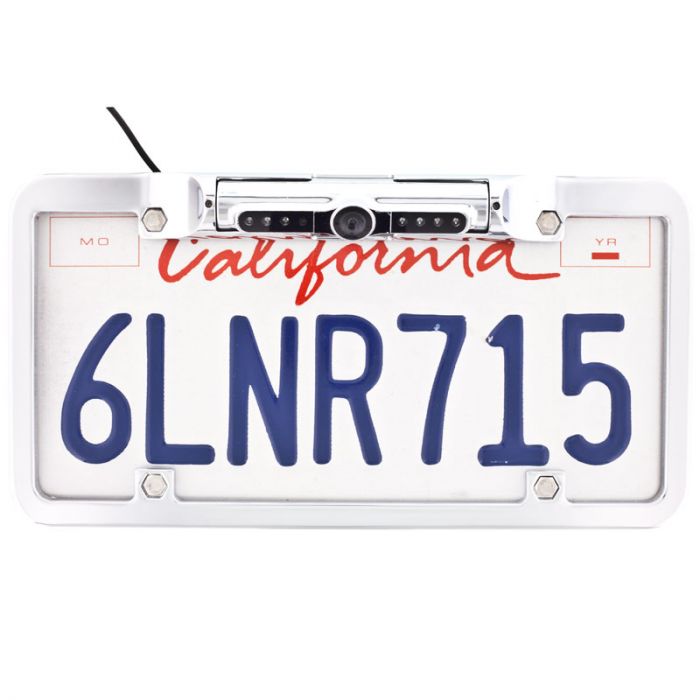

Boyo VTL200CIR License Plate Camera with 140 Viewing Angle CMOS with infrared illumination(Chrome)

Rating:
100% of 100
$99.99
In stock
SKU
40546

Key Features

  • 140° Wide Angle View
  • Full Frame License Plate Camera
  • 1/4" DSP CMOS imager
  • Built in IR for Night Vision
  • 380 TV Lines of resolution
  • Push button selection for reverse image or non-reverse image
Unit includes: License plate back up camera, Wiring harness, Mounting bolts, Bolt caps, and Instruction manual

Boyo VTL200CIR License Plate Camera with 140 Viewing Angle (Chrome) with infrared features:
  • 140° wide angle view
  • Zinc Metal Chrome Full Frame License Plate Camera
  • High sensitive 1/4" DSP Color CMOS
  • Remarkable low Lux performance of 0 Lux at F2.0 with IR on
  • Push button selection for reverse image or non-reverse image
  • Excellent Auto White Balance
  • Effective Pixels: NTSC : 640(H)X480,2011,(V)
  • 380 TV Lines of resolution
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50 to 1/1000 sec
  • White balance: Auto
  • Gain control: Auto
  • Lens mount: 2.1mm
  • Power source: DC12V
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Waterproof Rating: IP67

Instruction manual
More Information
Manufacturer Boyo
Part Number VTL200CIR
Camera Sensor type CMOS
Back up camera type License Plate Camera
Camera diameter 1/4 inch
Viewing Angle 140 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines No
Infrared Illumination Yes
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Color Chrome
Warranty 1 Year
UPC Code 705105194585
Return period 30 days
Exchange period 30 days
