DISCONTINUED - Boyo VTM9000 9" Universal LCD Monitor with triggered video input and fluh mount bracket

DISCONTINUED - Boyo VTM9000 9" Universal LCD Monitor with triggered video input and fluh mount bracket

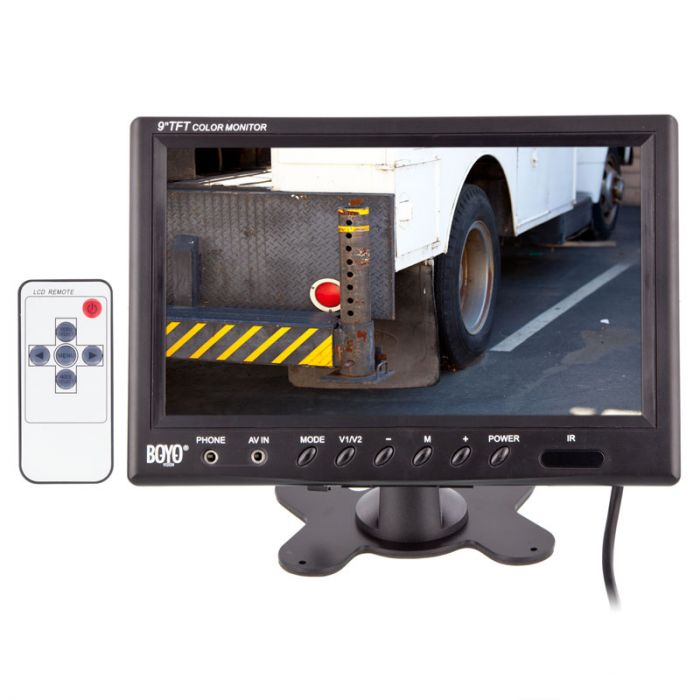

Boyo VTM9000 9" Universal Car LCD Monitor - Main

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Boyo VTM9000 Product Highlights

This item has been discontinued.
Click here for new model.

Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: LCD Monitor, Mounting stand, Flush mount shroud, Remote control, Wiring harness, 3.5mm input cable, Earbud headphones, and Instruction manual

The Boyo VTM9000 9 inch monitor is a very versatile LCD monitor that can be used for multiple systems. The VTM9000 makes a great backup monitor with its triggered video input and flush mount bracket making it perfect for a low cost RV backup monitor. It can also be used as a headrest monitor by recessing the flush mount bracket into a headrest. The monitor features a built in speaker for audio and has the ability to flip and reverse any input so the monitor can be mounted in various positions such as upside down. The Boyo VTM9000 9 inch monitor also includes a top of dash or windshield mount making it very easy to add this back up monitor to any car, truck, or SUV.

Boyo VTM9000 9" Universal LCD Monitor with triggered video input and fluh mount bracket

  • 9" TFT LCD monitor
  • 12 volt reverse trigger to automatically turn monitor on and select video input
  • Built in speaker for audio playback - Single audio input
  • Front 3.5mm audio video input
  • 2 hardwired video inputs
  • 16:9 wide screen letterbox display
  • Slide track on back of monitor to accept various LCD monitor mounts
  • Embedded 1/4" - 20 nut on bottom of monitor to accept various mounts LCD monitor mounts
  • Includes top of dash windshield mount with two way adhesive tape, 90 degree vertical angle adjustment
  • High Resolution: 800 x 600 pixels
  • Video system: NTSC/PAL auto switching
  • OSD - On Screen Display for image adjustments ( Contrast, Brightness, Hue, Saturation, Source, Aspect ratio, and Volume
  • 4 - way picture rotation function, reverse / non-reverse and normal / vertical flip
  • Includes wireless remote control
  • Power consumption: 12Vdc - 400ma
  • Storage temperature: -20 C - 80 C
  • Operating temperature: -5 C - 50 C

Inputs and Outputs:
  • 2 - Video inputs
  • 1 - Audio mono input
  • 1 - 3.5mm front A/V input
  • 1 - 3.5mm Earphone output
  • 1 - 12 volt trigger for backup
  • 1 - 12Vdc power input

  • Monitor dimensions: 9" (W) x 6" (H) x 1-1/16" (D)
  • Shroud dimensions (Not cutout): 9-7/8" (W) x 6-15/16" (H) x 1-1/4" (D)
  • Shroud cut out dimensions: 9-1/4" (W) x 6-1/4" (H) x 1-1/8" (D)

Technical Specifications

Manufacturer Boyo
Part Number VTM9000
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 800 x 600
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack Yes
Built in FM Modulator No
Built in Speakers Yes
HDMI input No
VGA input No - VGA input
Audio Video inputs 2 Video Inputs
Audio Video Outputs No
Composite video input No
Front mounted auxiliary input 3.5 mm audio/video input
USB input No
SD Card input No
Phone Mirroring No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Image rotate
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Headrest Shroud included Yes
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 736211912282
